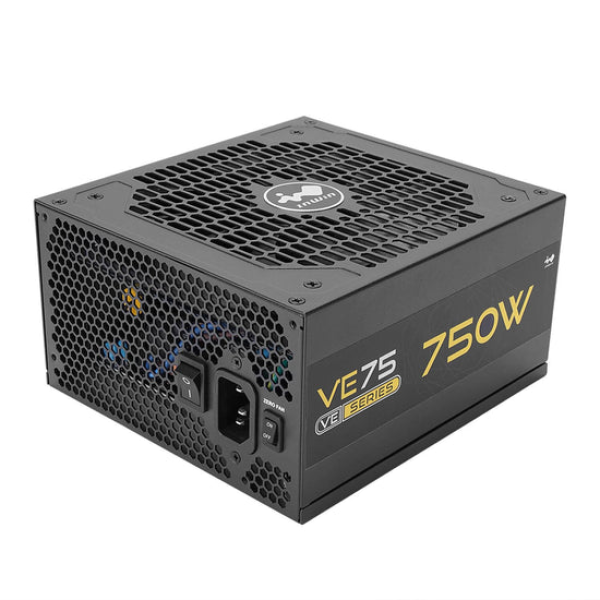

Inwin VE75 750W Gold Fully Modular PCI-E Gen 5

SKU : IW-PS-VE750W
Brand : InWin
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Total Power: 750W, Materials: SECC, Type: ATX12V V3.0, Cable Management: Fully Modular, PFC: Active PFC (> 0.95), 05 Years Limited Warranty, IW-PS-VE750W.
Ask a question about this product
$177.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Inwin | Model # IW-PS-VE750W



A temperature-controlled FDB fan with zero RPM mode is a feature of the VE Series. To switch on zero RPM mode, just press the button. There will be silence while the FDB fan stops spinning. In order to disperse heat, the PSU will automatically turn on the fan when the internal temperature hits 50°C. This guarantees the power supply's stability and low noise levels.



Features:

  • The VE Series meets the newest generation of Intel’s PSDG (power supply design guide) -ATX 3.0.
  • Ready for all high-performing futures PCI-E 5.0 graphics cards which has a 16-pin(12VHPWR) output port.
  • The fully modular and flexible flat cables allow builders limits the cables present in a PC. Easier cable management results in cleaner builds with better airflow.
  • The VE Series is an 80 PLUS Gold certified power supply that delivers up to 90% conversion efficiency which can generate less heat, effectively lowering energy consumption and noise.



Overview:

  • Total Power: 750W
  • Materials: SECC
  • Type: ATX12V V3.0
  • Cable Management: Fully Modular
  • PFC: Active PFC (> 0.95)



Manufacturer Warranty: 05 Years Limited Warranty

Technical Specifications

Total Power 750W
Materials SECC
Type ATX12V V3.0
Cable Management Fully Modular
PFC Active PFC (> 0.95)
Efficiency 80 PLUS Gold (Up to 90%)
MTBF (Hours) >100,000 hrs.
AC Input 100V-240Vac, 10-6A, 50-60Hz
Fan 135 mm FDB Fan
Typical Load Fan Noise (dBA) (50% Loading) < 25 dB(A)
Operating Temperature Range (°C) 0 - 40°C
Full Protection OCP / OVP / UVP / SCP / OTP / OPP
Safety Certifications CB / TUV / cTUVus / BSMI / RCM / CE / FCC / UKCA
Connectors 24 Pin Motherboard: 1
8 (4+4) Pin CPU: 2
8 (6+2) Pin PCI-E: 4
12VHPWR: 1
4 Pin Peripheral: 3
SATA: 9
Floppy: 1
Product Dimensions (L x W x H) 160 x 150 x 86 mm
Net Weight 2.5 kg
