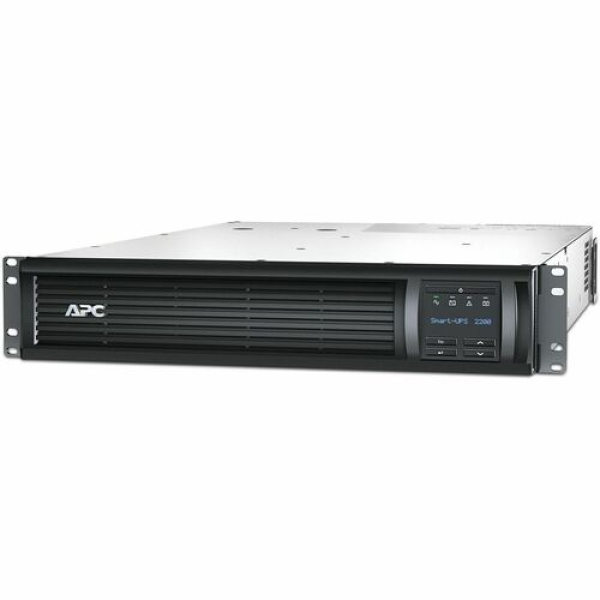

APC 2U Rackmount Line Interactive 2200VA 230V Smart-UPS Black

Manufacture: APC | Model: SMTL2200RMI2UC

The Smart-UPS 2U Lithium-Ion (Li-Ion) UPS is a high-performance uninterruptible power supply (UPS) designed to provide reliable backup power for critical applications. With advanced line-interactive technology, a compact 2U rack-mountable design, and extended battery life, this UPS ensures enhanced power protection for essential systems.

Key Features:

• Lead Time: Usually in stock
• Product Type: Uninterruptible Power Supply (UPS)
• Range: Smart-UPS
• UPS Type: Line Interactive
• Battery Type: Lithium-Ion (Li-Ion)
• Rack Units: 2U
• Wave Type: Sine Wave

Power & Performance:

• Rated Power: 1980 W / 2200 VA
• Maximum Configurable Power: 1980 W / 2200 VA
• Run Time at Full Load (1980 W): 7 min 27 sec
• Battery Recharge Time: 2 hours
• Battery Design Life: 8-10 years
• Battery Replacement Quantity: 1
• Replacement Battery: APCRBC174-LI
• Battery Charger Power: 216 W Rated
• Surge Energy Rate: 739 J
• Transfer Time: 6 ms typical, 10 ms maximum

Input & Output Specifications:

• Main Input Voltage: 230 V
• Other Input Voltage: 220 V, 240 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Input Connection: IEC 60320 C20
• Output Connections:
  • 8 x IEC 60320 C13
  • 1 x IEC 60320 C19
• Input Protection: Circuit Breaker
• Input Voltage Limits: 160 - 286 V
• Network Frequency: 50/60 Hz ± 3 Hz Auto-Sensing
• Crest Factor: 3:1
• Output Frequency: 50/60 Hz ± 3 Hz Sync to Mains

Physical Dimensions:

• Height: 8.6 cm
• Width: 43.2 cm
• Depth: 68.3 cm
• Weight: 33.3 kg
• Color: Black with Silver Front Bezel
• Mounting Mode: Rack-Mounted
• Mounting Preference: Lower

Environmental Conditions:

• Operating Temperature: 0 - 40°C
• Storage Temperature: -15 - 45°C
• Operating Altitude: 0 - 10,000 ft
• Storage Altitude: 0 - 7620 m
• Relative Humidity: 0 - 95% (Non-Condensing)
• IP Degree of Protection: IP20
• Acoustic Level: 55 dB

Communication & Management:

• Communication Ports:
  • SmartConnect Ethernet Port
  • SmartSlot
• Software Package: SmartConnect Software for Remote Power Monitoring
• Control Panel: Multifunction LCD Status and Control Console
• Emergency Power Off: Yes
• Alarms: Audible and Visible Alarms

Package Information:

• Package Type: PCE
• Package Weight: 41.5 kg

Included Accessories:

• Rack Mounting Brackets
• Rack Mounting Support Rails
• Screws
• Washers
• USB Cable
• Ethernet Patch Cable

Warranty:

• 5 Years Repair or Replace
