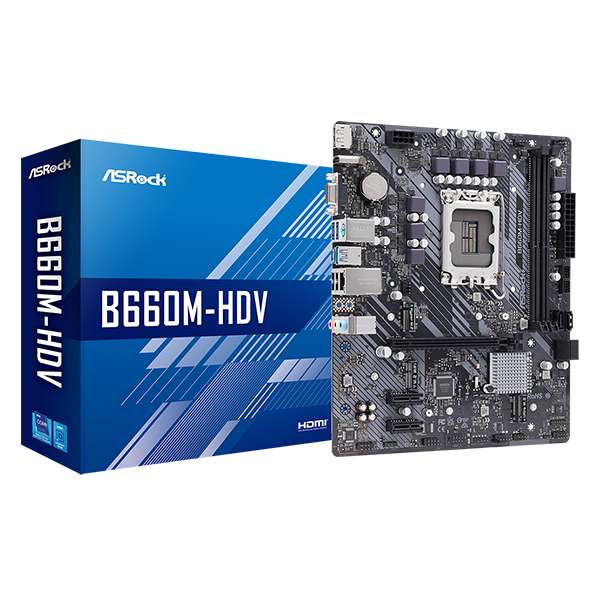

ASRock B660 DDR4 LGA1700 Micro ATX Motherboard B660M-HDV

Manufacture # ASRock | Model # B660M-HDV

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Features:

• High Speed M.2 Solution: This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD.
• Intel Gigabit LAN: Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
• M.2 (KEY E) For WiFi: Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
• 3 Graphics Outputs: Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Overview:

• Supports 12th Gen Intel Core Processors (LGA1700)
• 6 Phase Power Design
• Supports DDR4 5066MHz (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
  1 M.2 Key-E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3; 1 Hyper M.2 (PCIe Gen4 x4); 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front); 5 USB 2.0 (2 Rear, 3 Front)
• Intel Gigabit LAN

Manufacturer Warranty: 03 Years Limited Warranty

B660M-HDV

• Supports 12th Gen Intel® Core™ Processors (LGA1700)
• 6 Phase Power Design
• Supports DDR4 5066MHz (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
• 1 M.2 Key-E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3
• 1 Hyper M.2 (PCIe Gen4 x4)
• 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
• 5 USB 2.0 (2 Rear, 3 Front)
• Intel® Gigabit LAN

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intel® Gigabit LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
