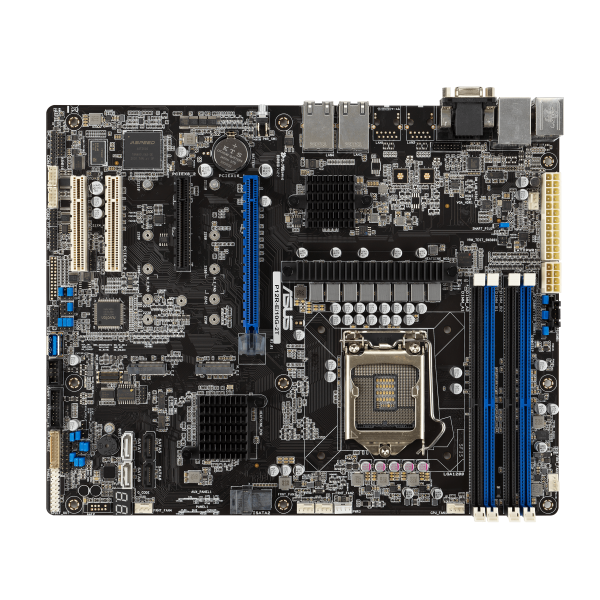

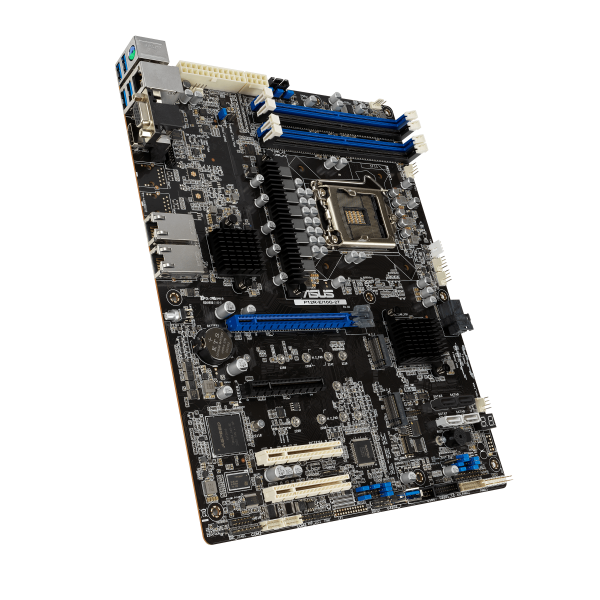

ASUS P12R Intel Xeon E-2300 LGA 1200 ATX Server Motherboard

SKU : P12R-E/10G-2T
Brand : Asus
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Chipset: Intel C256, Dimm slots: 4, Memory: 128 GB, Form Factor: ATX , 03 Years Limited Warranty, P12R-E/10G-2T.
Ask a question about this product
$825.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Asus | Model # P12R-E/10G-2T



PCI Express (PCIe) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking enabling flexible scalability for demanding or increasing workloads.



Features:

  • Ideal for remote office/branch office (ROBO) use and everyday business environments
  • Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP
  • Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
  • Dual Intel X710AT 10GbE Ethernet with teaming support
  • Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
  • HDMI 1.4 support for high-resolution display maintenance and monitoring
  • Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
  • Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency



Overview:

  • Chipset: Intel C256
  • Dimm slots: 4
  • Memory: 128 GB
  • Form Factor: ATX



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Processor 1 x Socket LGA1200
Intel Pentium Processors
Intel Xeon E processors
Chipset Intel C256 Chipset
Memory Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speeds: 2666,2933,3200 MHz
Maximum internal memory: 128 GB
Supported memory module capacities: 8GB, 16GB, 32GB
Expansion Slots Number of M.2 (M) slots: 2
Storage controllers Supported storage drive interfaces: M.2, SATA III
Graphics Parallel processing technology support: Not supported
Graphics card family: ASPEED
Graphics card: AST2600
On-board graphics card model: Aspeed AST2600
On-board graphics card memory: 64 MB
Internal I/O 1 x VGA Header (VGA from BMC)
1 x HDMI (useable only with iGPU)
1 x TPM header
1 x COM port
1 x PS/2 KB/MS port
1 x Onboard header for optional management card
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x M.2 Connector
2 x USB3.2 Gen2 ports
2 x USB3.2 Gen1 ports
1 x USB3.2 Gen1 header
Back I/O Ports 2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x HDMI Port (useable only with iGPU)
1 x VGA Port (VGA from BMC)
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/Mouse
Network Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controller: Intel X710-AT2
Wi-Fi: No
Operational conditions Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 50 °C
Storage relative humidity (H-H): 20 - 90%
Form Factor ATX (12"x9.6", 305mm x 244mm)
