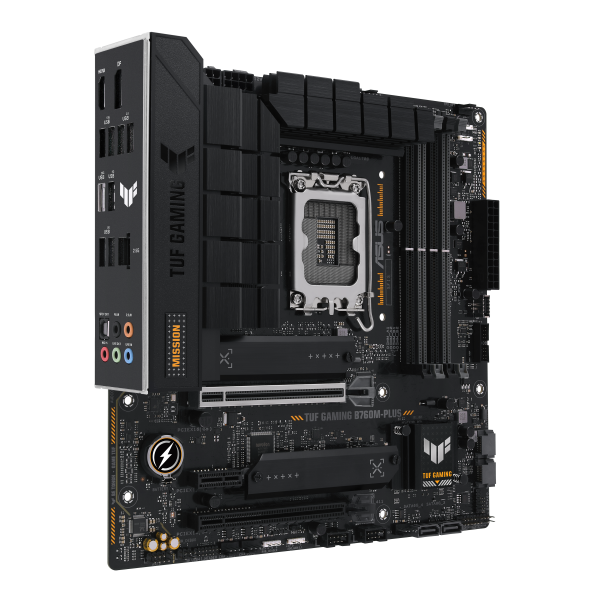

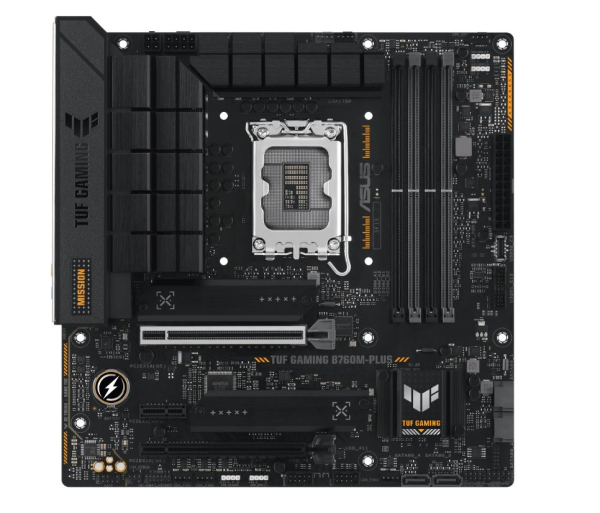

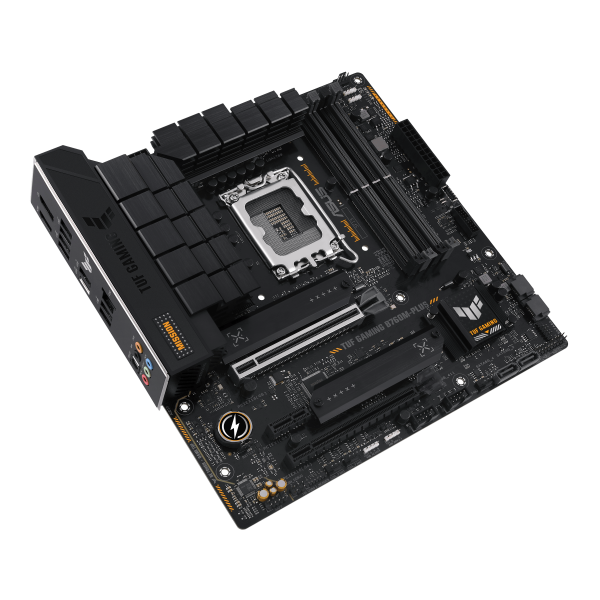

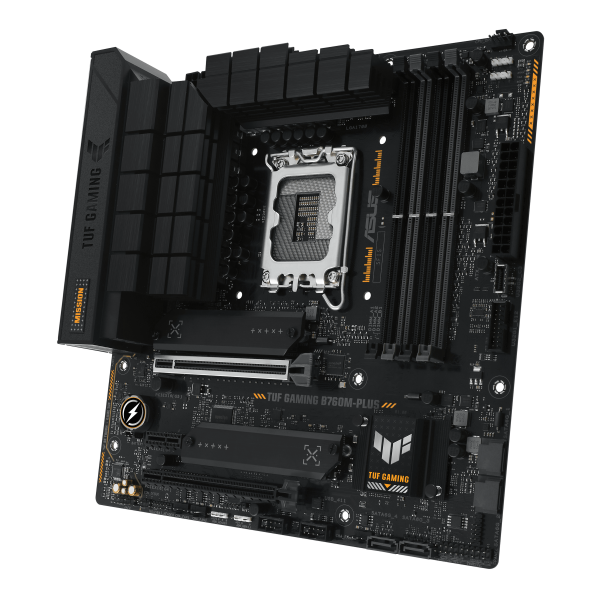

Name: Asus TUF Gaming B760M-Plus LGA 1700 Micro-ATX Motherboard
Brand: Asus
SKU: TUF GAMING B760M-PLUS
Price: 349 AUD
Availability: InStock

Asus TUF Gaming B760M-Plus LGA 1700 Micro-ATX Motherboard

SKU : TUF GAMING B760M-PLUS

Brand : Asus

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # Asus | Model # TUF GAMING B760M-PLUS

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.

Features:

The TUF Gaming B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF Gaming B760M-PLUS WIFI D4 is the perfect foundation for your next Intel battle rig.
12+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
TUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.

Overview:

Chipset: Intel B760
RAM Capacity: upto 128GB (32GB each)
DIMM Slots: 4
Operating System Supports: Windows 11, Windows 10 64-bit
Form Factor: mATX

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

General

Chipset

Intel B760

Socket

LGA1700
Support for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors

BIOS

128 Mb Flash ROM
UEFI AMI BIOS

Unique Features

Asus TUF Protection
Asus Q-Design
Asus Thermal Solution
Asus EZ DIY
Aura Sync

Memory

RAM Capacity

upto 128GB (32GB each)

DIMM Slots

RAM Frequency Supports

DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory

Onboard Graphics

With HDMI

1 x HDMI port
Supports 4K@60Hz as specified in HDMI 2.1.

With DisplayPort

1 x DisplayPort
Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Wireless Communication

Wi-Fi

Bluetooth

Slots And Ports

Expansion Slots

1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x1 slot
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Internal I/O Connectors

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header

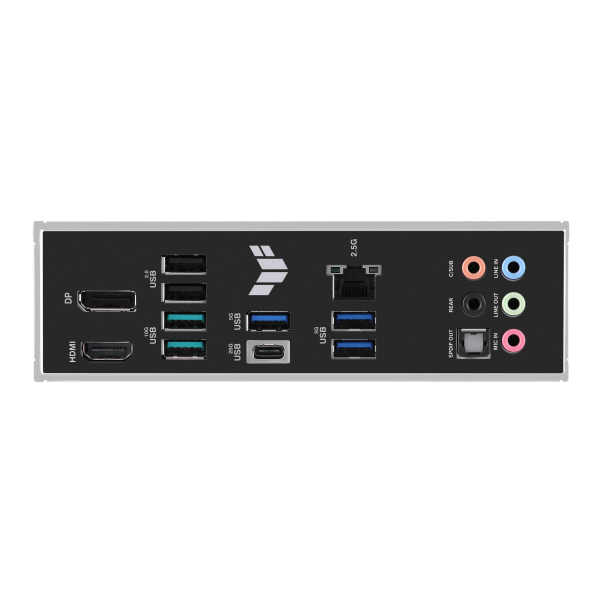

Back Panel Connectors

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
