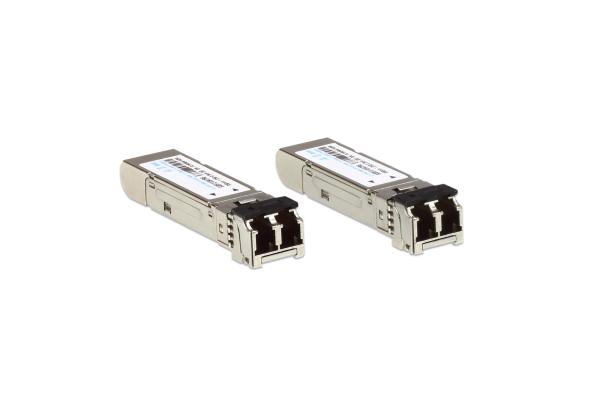

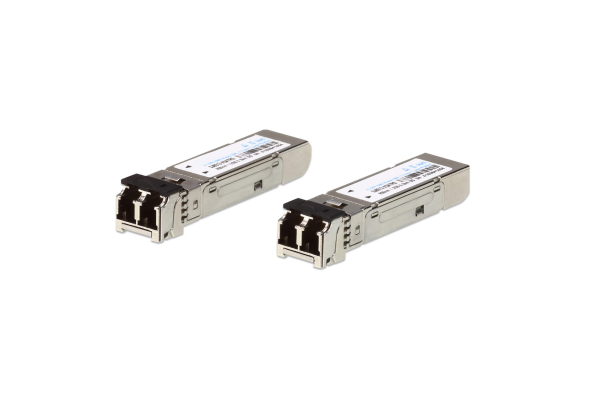

Aten 1.25G Multi-Mode/550M Fiber SFP Module

Manufacture # Aten | Model # 2A-136G

The 2A-136G 1.25G Multi-Mode/550M Fiber SFP Module provides 1 GbE connectivity up to 550 meters. The transceiver can be installed in both transmitters and receivers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-136G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm which makes it a cost-effective and high performance transceiver.

Features:

• Extend your network connectivity up to 550 meters
• Differential Inputs and Outputs
• Small Form Factor Pluggable MSA (SFP Multi-Source Agreements standards) Compliant
• Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration
• RoHS Compliant

Overview:

• Product Type: Fiber SFP Module
• Color: Silver
• Data Rate: 1.25 Gbps
• Operating Distance: 550 m
• Fiber Type: Multi Mode
• Connector Type: LC

Manufacturer Warranty: 01 Year Limited Warranty
