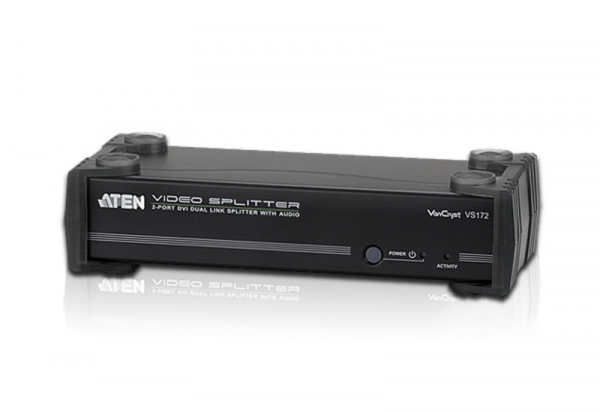

Aten 2-Port DVI Dual Link/Audio Splitter (PROJECT) - Black

Name: Aten 2-Port DVI Dual Link/Audio Splitter PROJECT - Black
Brand: ATEN
SKU: VS172-AT-U
Price: 381 AUD
Availability: InStock

SKU : VS172-AT-U

Brand : ATEN

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

The ATEN VS172 2-Port DVI Dual Link Splitter with Audio allows you to distribute high-quality DVI video and audio to two outputs. It supports resolutions up to 2560 x 1600 and features cascading capabilities to extend up to 8 monitors, making it ideal for broadcasting, training, and classroom applications.

Ask a question about this product

$381.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: Aten | Model: VS172-AT-U

The VS172 2-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.

The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a Control Unit, PC, and/or home automation/home theater software package for complete system integration.

The VS172 is easy to operate and can be cascaded to three levels, handling up to 8 monitors, which makes them the ideal solution for situations such as:
a) Broadcasting video information to the public (news headlines,stock prices, airline and train schedules, etc.)
b) Company training facilities
c) Classroom instruction

Package Contents

1x VS172 2-Port DVI Dual Link Splitter with Audio
1x Power Adapter
1x User Instructions

Displays DVI audio/video to multiple DVI-compatible monitors or projectors
Superior video quality – up to 2560 x 1600 @ 60Hz and 1080p
Cascadable to 3 levels – provides up to 8 video signals
Audio enabled
Features RS-232 serial port for command controls
RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
EDID Expert – selects the optimum EDID settings via RS-232

Note:
* The VS172 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
** HDCP is not supported

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Video Input
Interfaces	1 x DVI-D Female (White)
Impedance	100 Ω
Max. Distance	1.8 m
Video Output
Interfaces	2 x DVI-D Female (White)
Impedance	100 Ω
Video
Max. Data Rate	13.5 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Max. Resolution	Up to 2560 x 1600
Max. Distance	Up to 5 m
Audio
Input	1 x Mini Stereo Jack Female (Green)
Output	2 x Mini Stereo Jack Female (Green)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
EDID Settings	EDID Mode: Default / Port 1 / Auto
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:3.6W:17BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.68 kg ( 1.5 lb )
Dimensions (L x W x H)	21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Carton Lot	5 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
