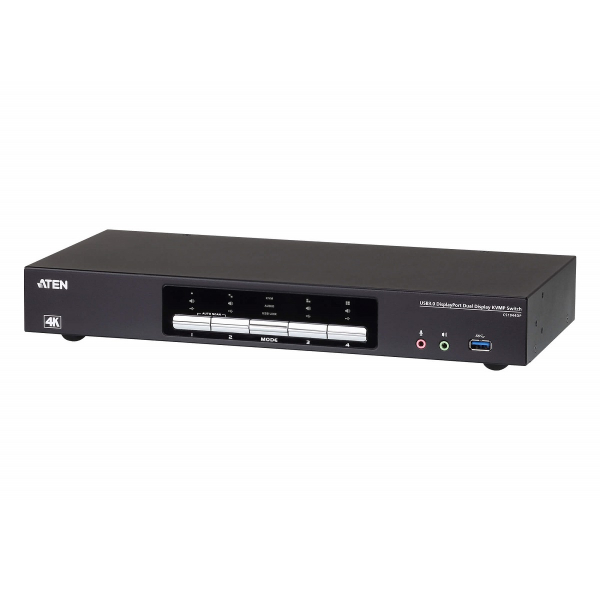

Aten 4-port Usb 3.0 4k Displayport Dual Display Kvmp&8482 ( Cs1944dp-at-u )

Name: Aten 4-port Usb 3.0 4k Displayport Dual Display Kvmp&8482 Cs1944dp-at-u
Brand: ATEN
SKU: CS1944DP-AT-U
Price: 1060 AUD
Availability: InStock

SKU : CS1944DP-AT-U

Brand : ATEN

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

The ATEN CS1944DP desktop KVM switch offers powerful 4K support and dual-display functionality, enabling users to control two or four computers from a single USB keyboard, USB mouse, and two DisplayPort monitors. Featuring 4K video resolution, a 2-port USB 3.1 Gen 1 hub with 5 Gbps transfer rates, and advanced video technology like Video DynaSync™, this KVM switch is ideal for multimedia applications, design, and multitasking environments.

Ask a question about this product

$1,060.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: Aten | Model: CS1944DP-AT-U

The ATEN CS1944DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1944DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.

Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1944DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.

Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1944DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.

Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment.

Package Contents

1x 4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
8x DisplayPort 1.2 Cables
4x USB 3.0 Cables
8x Audio Cables
1x Power Adapter
1x User Instructions

One USB keyboard and mouse controls four DisplayPort computers and share two USB peripherals
Supports Quad Display by connecting two Dual Display KVM switches
Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Supports DisplayPort Dual-Mode technology (DP++)¹
Supports MST (Multi-Stream Transport)²
Supports Console keyboard emulation / bypass feature
Supports Console mouse emulation / bypass feature
Independent switching of KVM, USB, and Audio
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
DisplayPort 1.2 compliant; HDCP compliant³
Supports HD audio⁴
Power on detection
Firmware upgradable

Note:
1. DisplayPort Dual–Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
2. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant
3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue
4. HD audio through DisplayPort cannot be switched independently

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Computer Connections	4
Port Selection	Hotkey, Pushbutton, Mouse, RS-232 Commands
Connectors
Console Ports	2 x USB Type A Female 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports	4 x USB3.1 Gen1 Type B Female (Blue) 8 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports	1 x RJ-45 Female
Power	1 x DC Jack
USB Hub	2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
LEDs
KVM	5 (Orange)
Audio	5 (Green)
USB Link	5 (Green)
Switches
Selected	5 x Pushbutton
Station Selection	1 x Slide Switch
Emulation
Keyboard / Mouse	USB
Video	Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval	1-99 seconds (default: 5 seconds)
Power Consumption	DC12V:6.125W:85BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0–50°C
Storage Temperature	-20–60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	1.51 kg ( 3.33 lb )
Dimensions (L x W x H)	33.50 x 15.66 x 4.40 cm (13.19 x 6.17 x 1.73 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
