Aten 4-Port USB DisplayPort Secure KVM Switch

Manufacture # Aten | Model # CS1184DP4-AT-U

ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.


Features:

• Always-on chassis intrusion detection– renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
• Tamper-evident labels– provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch’s internal components
• Non-reprogrammable firmware– prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch’s firmware
• Restricted peripheral connectivity– non-authorized HIDs (Human Interface Devices), and video are rejected

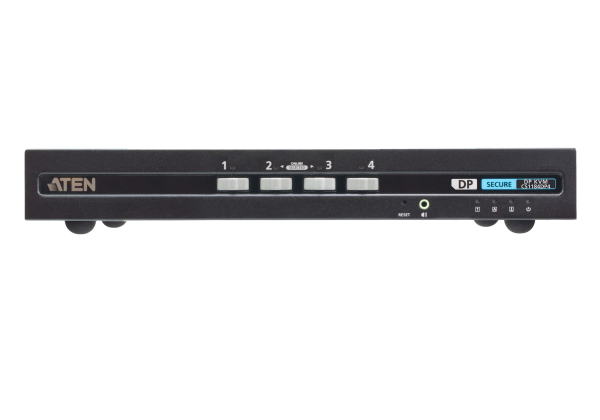

• Port selection via pushbuttons / Remote Port Selector (RPS) 1 only to enhance security
• LED indicators for peripheral filtering and KVM security status
• Strict audio filtration protects against audio leakage.
• Rugged metal enclosure

Overview:

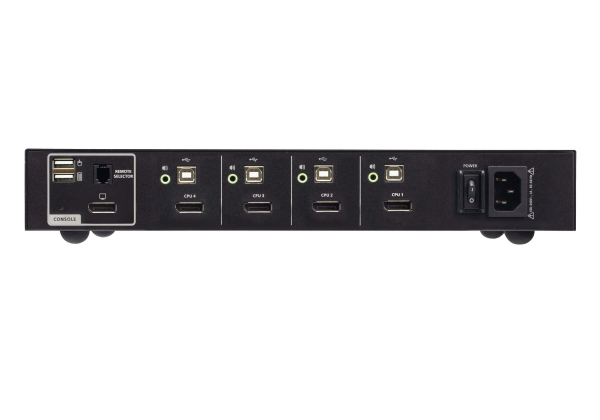

• Computer Connections: 4
• Power: 1 x 3-prong AC Socket
• Reset: 1 x Semi-recessed Pushbutton
• Power: 1 x Rocker
• Keyboard / Mouse: USB

Manufacturer Warranty: 01 Year Limited Warranty
