ATEN Usb Vga Kvm Console Extender - 1920x1200 ( CE700A-AT-U

Name: ATEN Usb Vga Kvm Console Extender - 1920x1200 CE700A-AT-U
Brand: ATEN
SKU: CE700A-AT-U
Price: 309 AUD
Availability: InStock

SKU : CE700A-AT-U

Brand : ATEN

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

3.3

1 reviews

The ATEN CE700A is a USB KVM extender designed to provide remote access to a computer system up to 150 meters away. It supports dual console operation, automatic gain control, and superior video quality with resolutions up to 1920 x 1200. The extender features built-in 8KV/15KV ESD protection, 2KV surge protection, and is compatible with VGA, SVGA, SXGA, UXGA, WUXGA, and multisync monitors.

Ask a question about this product

$309.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: Aten | Model: CE700A-AT-U

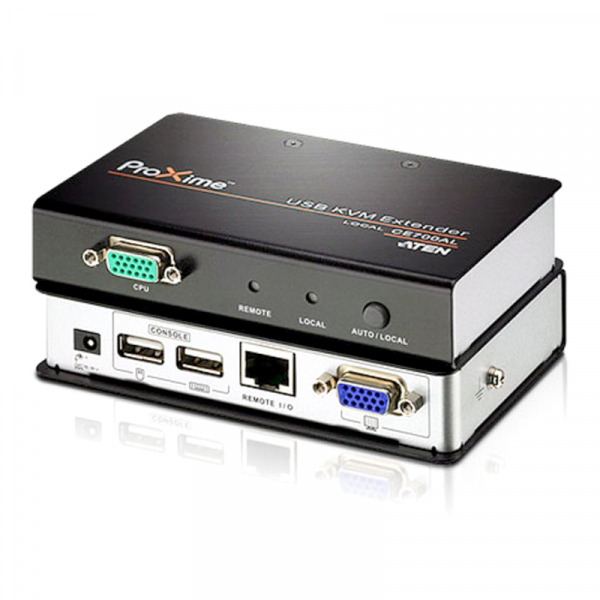

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

Package Contents

1x CE700AL USB KVM Extender (Local Unit)
1x CE700AR USB KVM Extender (Remote Unit)
2x Power Adapters
1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Rack Mount Kit
1x User Manual
1x Quick Start Guide

Cat 5e cable connects the Local and Remote Units - up to 150m apart
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC)
USB Keyboard and USB Mouse Ports
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Automatic gain control - adjusts signal strength to compensate for distance
High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
Supports Wide Screen formats *
Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
Rack mountableEasy to install - no software required - connecting cables to the devices is all it takes
Multiplatform support - Windows, Linux

* The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

3.3

5	☆
4	☆
3	☆
2	☆
1	☆

Pros:Easy setup, Compact, Highly compatible

Write Review

Reviews (1)

Write Review

Reviews (1)

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Function	CE700AL	CE700AR
Connectors
Console Ports	2 x USB Type A Female (White) 1 x HDB-15 Female (Blue)	2 x USB Type A Female (White) 1 x HDB-15 Female (Blue)
KVM Ports	1 x SPHD-17 Female (Green)	N/A
Unit To Unit	1 x RJ-45 Female (Black)	1 x RJ-45 Female (Black)
Power	1 x DC Jack (Black)	1 x DC Jack (Black)
Pushbuttons
Operating Mode Selection	1 x Pushbutton	N/A
LEDs
Local	1 (Green)	N/A
Remote	1 (Green)	1 (Green)
Link	N/A	1 (Green)
Emulation
Keyboard / Mouse	USB	USB
Power Consumption	DC5.3V:2.17W:14BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.	DC5.3V:1.59W:12BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Video	1920 x 1200 @ 60Hz (30m) 1600 x 1200 @ 60Hz (100m) 1280 x 1024 @ 60Hz (150m)	1920 x 1200 @ 60Hz (30m) 1600 x 1200 @ 60Hz (100m) 1280 x 1024 @ 60Hz (150m)
Environmental
Operating Temperature	0 - 50°C	0 - 50°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0-80% RH, Non-condensing	0-80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Weight	0.33 kg ( 0.73 lb )	0.32 kg ( 0.7 lb )
Dimensions (L x W x H)	12.70 x 8.65 x 2.50 cm (5 x 3.41 x 0.98 in.)	12.70 x 8.14 x 2.50 cm (5 x 3.2 x 0.98 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
