ATEN Vancryst Dvi-d Hdbaset-lite Extender - Up VE601-AT-U

Name: ATEN Vancryst Dvi-d Hdbaset-lite Extender - Up VE601-AT-U
Brand: ATEN
SKU: VE601-AT-U
Price: 319 AUD
Availability: InStock

SKU : VE601-AT-U

Brand : ATEN

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

The VE601 DVI HDBaseT-Lite Extender allows you to extend a 1080p DVI display up to 70m using Ethernet cables. Perfect for professional A/V installations, it supports 1920 x 1200 resolution up to 40m and offers a simple, cost-effective solution with reliable video signal transmission and anti-jamming features.

Ask a question about this product

$319.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: Aten | Model: VE601-AT-U

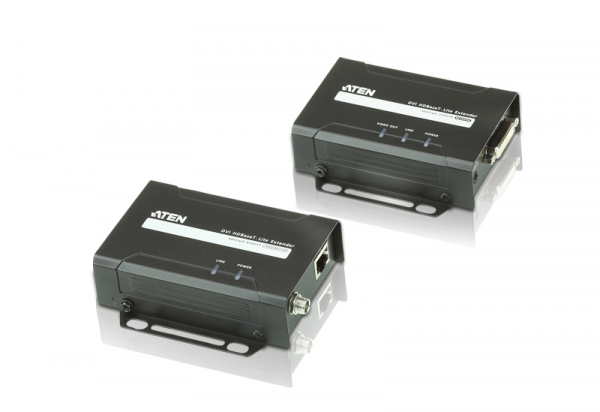

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.

Package Contents

1x VE601T/R DVI HDBaseT-Lite Extender
2x Power Adapters
1x User Instructions

HDBaseT connectivity – extends a DVI connection up to 70 m
Superior video quality – 1920 x 1200 @ 35 m (Cat 5e / 6) / 40 m (Cat 6a) ; 1080p @ 60 m (Cat 5e / 6) / 70 m (Cat 6a / ATEN 2L-2910)
DVI (3D, Deep Color); HDCP 1.4 compliant
HDBaseT Anti-Jamming – resists signal interference during video transmission
Plug-and-play
Rack-mountable

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Function	VE601R	VE601T
Video Input
Interfaces	N/A	1 x DVI-D Female (White)
Impedance	N/A	100 Ω
Max. Distance	N/A	Up to 1.8m
Video Output
Impedance	100 Ω	N/A
Interfaces	1 x DVI-D Female (White)	N/A
Video
Max. Pixel Clock	340 MHz	340 MHz
Max. Data Rate	10.2Gbps (3.4Gbps per lane)	10.2Gbps (3.4Gbps per lane)
Compliance	DVI (3D, Deep Color) HDCP compatible	DVI (3D, Deep Color) HDCP compatible
Max. Resolutions / Distance	Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6)	Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6)
Connectors
Power	1 x DC Jack with locking	1 x DC Jack with locking
Unit To Unit	1 x RJ-45 Female	1 x RJ-45 Female
Power Consumption	DC5V:4.36W:20BTU Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.	DC5V:1.84W:9BTU Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0-50°C	0-50°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0% - 80% RH, Non-condensing	0% - 80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Weight	0.25 kg ( 0.55 lb )	0.25 kg ( 0.55 lb )
Dimensions (L x W x H) with bracket	10.20 x 8.70 x 3.00 cm (4.02 x 3.43 x 1.18 in.)	10.20 x 8.70 x 3.00 cm (4.02 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket	9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)	9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
