Camera |
4K optics lens, 120° FOV, up to 5X zoom
Sony 4K sensor: ultra-crystal-clear image in any lighting
Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
Adjustable audio fence: freedom to define your meeting area
Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment**
Supports autofocus: SmartFrame function automatically adjusts the FOV to track and fit all participants on screen
SmartSpeaker: Voice triggered tracking people or specific preset areas.
True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
Mirror, flip, AE, white balance: auto/manual override via PTZApp 2
Minimum focus distance: 60 cm
People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
10 camera presets (through remote control and IP web page) |
Audio |
Beamforming microphone array: 5 microphones, 5-meter pickup range
Echo cancellation and background noise suppression
Supports an expansion microphone
6W speaker with a professional bass port tuned for communication
180Hz–20kHz speaker frequency response
Output volume: 94dB SPL +/-2dB at 0.5 meters |
Connectivity |
12V/2A power adapter
Mini-B for expansion microphone connection
USB Type-B 3.1 connector, backward compatible with USB 2.0
RJ45 port for Ethernet
USB 2.0 Type-A for wireless connection* |
Video Format |
YUV, YUY2, MJPEG
Network video compression format: H.264
Network protocols: RTSP, RTMP* |
USB |
3.1 Gen 1, backward compatible with USB 2.0
UVC 1.1 (USB video), UAC 1.0 (USB audio), UVC1.5* |
Control |
IR remote control
WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
UVC/UVA plug-and-play
PTZApp 2 |
Mount |
Camera wall-mount bracket
Screen mount kit (optional)
TV VESA mount (optional) |
Power Supply |
AC 100V–240V, 50/60 Hz
Consumption: 12V/2A |
Hardware Specs |
3.2 GHz Intel Core i5-4460 processor
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0 |
Compatible Applications |
Microsoft Teams, Skype for Business, Skype, Zoom, Google Meet, Intel Unite, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting, TrueConf, Adobe Connect, Cisco WebEx, Fuze, GoToMeeting, Microsoft Lync, Vidyo, vMix, WebRTC, Wirecast, XSplit |
Optional Accessories |
Wall mount and mounting screws
Screen mount kit
BT Dongle
10m/20m expansion microphone
10m/20m/30m USB 3.1 extension cable
USB 3.1 GEN1 Type-B to Type-A cable, 3 m |
System Requirement |
Windows 7/10/11
MacOS X 10.14 or later
Chromebox 3 version 94.0.4606.114 or later |
Package Contents |

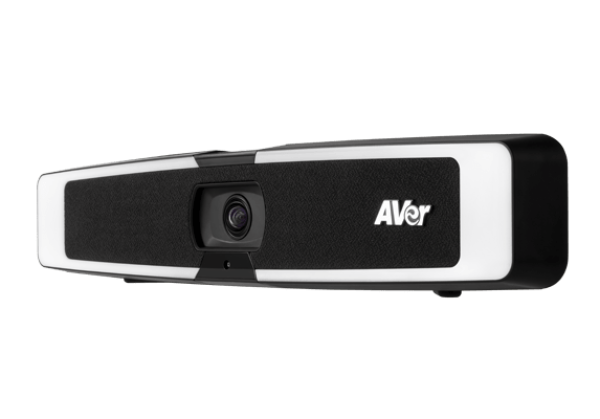

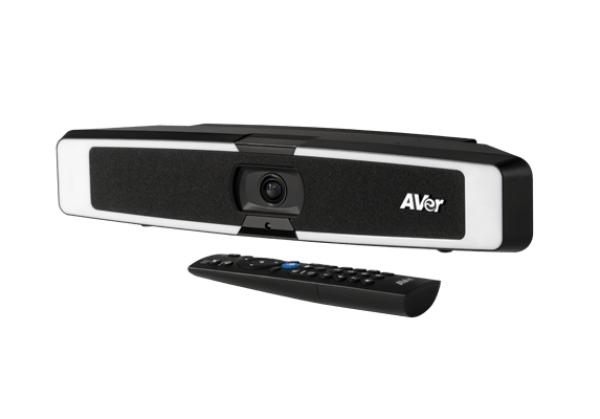

VB130 unit
Power cable 10 ft (3 m)
USB 2.0 Type-B to Type-A Cable 15 ft (5 m)
QR code card
Wall mount
Remote control
Tripod screw |
Environmental Data |
Operation temperature: 0 ~ 40°C
Operation humidity: 20% ~ 80%
Storage temperature: -20 ~ 60°C
Storage humidity: 20% ~ 80% |
Dimensions |
Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg
Remote control: 149.72 x 42.3 x 19.29 mm/50g |
