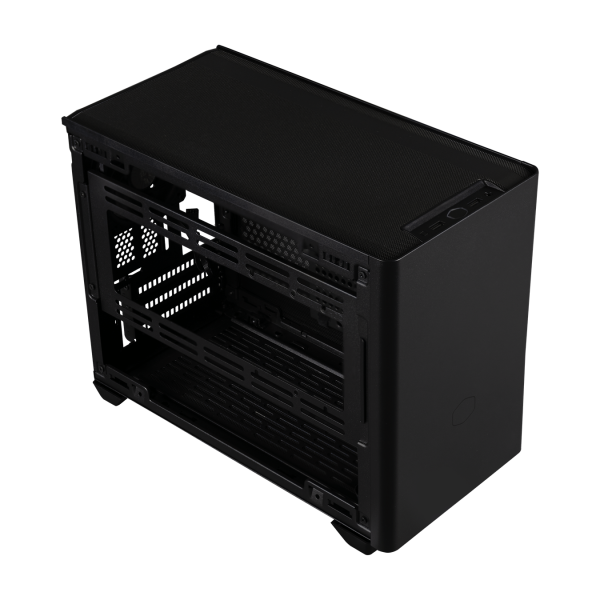

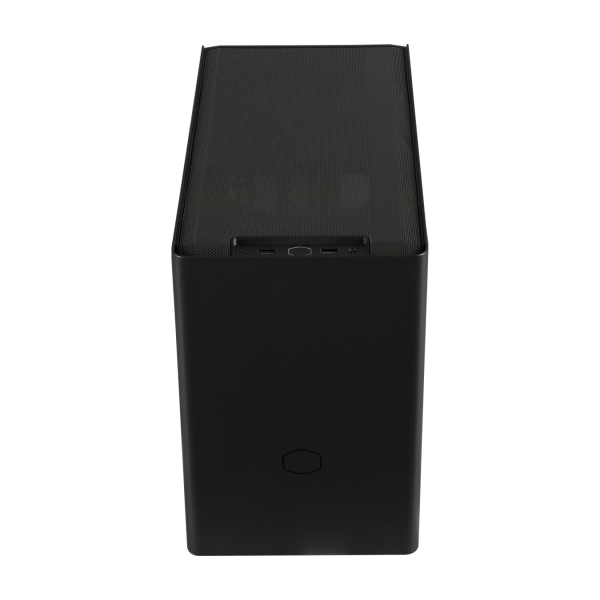

Cooler Master MasterBox NR200 Mini-ITX Case Black

SKU : MCB-NR200-KNNN-S00
Brand : Cooler Master
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Fan Support - Top: 2x 120mm, Fan Support - Rear: 1x 92mm, Clearance - PSU: 130mm, Dust Filters: Top, Bottom, Left side, Right side, Power Supply Support: SFX, SFX-L.
Ask a question about this product
$83.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cooler Master | Model # MCB-NR200-KNNN-S00



The MasterBox NR200 takes all of the features found in a core performance ATX chassis and efficiently utilizes them in a space less than half the volume. Every feature is thoughtfully laid out in the 18-liter case to maximize component compatibility, ease of use, and thermal efficiency.


Open ventilation and multiple fan mounts bring airflow where it’s needed, while generous watercooling and aircooling clearances allow the fitment of coolers that can take advantage of all the airflow. Ample clearance for long, triple-slot graphics cards means no sacrifices are needed in GPU power to take advantage of small form factor sizing. The frame is wrapped in a sleek and tasteful steel chassis that blends in perfectly on top of desk.



Features:

  • Unrestricted Cooling Potential
  • Triple-slot GPU support
  • Easy, Tool-free access
  • 360 Degree Accessibility
  • Multiple motherboard support options
  • Out-of-the-box Custom Cooling Support
  • High quality materials



Overview:

  • Fan Support - Top: 2x 120mm
  • Fan Support - Rear: 1x 92mm
  • Clearance - PSU: 130mm
  • Dust Filters: Top, Bottom, Left side, Right side
  • Power Supply Support: SFX, SFX-L



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Series MasterBox Series
Size Mini ITX
Color Black
Materials Steel, Plastic, Mesh
Dimensions (L x W x H) 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions
Volume 18.25L (exlc. Protrusions)
Motherboard Support Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)
Expansion Slots 3
5.25" Drive Bays 0
3.5" Drive Bays 1 (Max. 2)
2.5" / 3.5" Drive Bays (Combo) 1
2.5" Drive Bays 2 (Max. 3)
I/O Panel 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Top 1x 120mm 650-1800RPM PWM (SickleFlow)
Pre-installed Fans - Front N/A
Pre-installed Fans - Rear 1x 92mm 650-2300RPM PWM (SickleFlow)
Pre-installed Fans - Bottom N/A
Fan Support - Top 2x 120mm
Fan Support - Rear 1x 92mm
Fan Support - Bottom 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
Fan Support - Side 2x 120/140mm
Radiator Support - Top N/A
Radiator Support - Rear 92mm (Not Compatible with Vertical GPU Installation)
Radiator Support - Bottom 120mm, 240mm, (recommended for custom loops only)
Radiator Support - Side 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)
Clearance - CPU Cooler 155mm, 76mm (GPU in vertical position)
Clearance - PSU 130mm
Clearance - GFX L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
Dust Filters Top, Bottom, Left side, Right side
Power Supply Support SFX, SFX-L
Weight 4.8 kg
