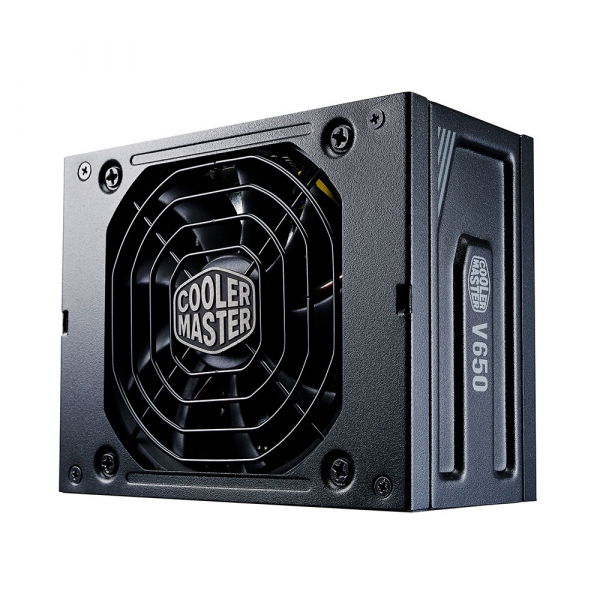

Cooler Master V650 650W SFX 80 PLUS Gold Full Modular ATX PSU MPY-6501-SFHAGV-AU

Manufacture # Cooler Master | Model # MPY-6501-SFHAGV-AU

The V SFX Gold is Cooler Master's debut entry into SFX power supply units. After much demand, we have finally produced a PSU specifically made to meet the needs of mini-ITX system builders. This unit delivers top-shelf performance in 550, 650, 750, and 850 watt levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, a 92mm FDB fan, 16AWG PCIe high efficiency cables, 100% Japanese capacitors, and a 10 year warranty. And with the included SFX-to-ATX bracket, this unit is compatible with cases ranging from mini-ITX all the way up to E-ATX systems.

Features:

• The V SFX Gold delivers the high quality performance you've come to expect from the V series in a mini-ITX compatible form factor. As demands for smaller systems have risen, people have struggled to find power supply units from brands and series they trust in the SFX category.
• The efficiency of your power supply unit is important because it directly affects your system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components.
• Though the V SFX Gold was made for mini-ITX builds, it can actually be used for any ATX case as well. With the included SFX-to-ATX bracket, you can instantly convert this unit from an SFX to an ATX PSU.
• Two of the main benefits of a mini-ITX build are the reduced size requirements and reduced noise. The main cause of noise in a PSU is usually the fan. The V SFX Gold uses a 92mm FDB fan so it's extremely quiet. With its small size, high efficiency, and excellent heat dissipation, the overall noise is kept to an absolute minimum.
• A mini-ITX case means minimal space for everything. Not only does that mean a reduction in room for the power supply unit, but also for the accompanying cables. That's why the V SFX Gold offers full-modular cabling. Use the absolute bare minimum in space for cable management by using the absolute bare minimum in cables.

Overview:

• ATX Version: SFX 12V Ver. 3.42
• PFC: Active PFC
• Input Voltage: 100-240V
• Input Current: 8-4A
• Input Frequency: 50-60Hz
• Dimensions (L x W x H): 100 x 125 x 63.5 mm
• Fan Size: 92mm
• Fan Bearing: FDB
• Efficiency: 90% @ Typical Load
• 80 PLUS Rating: 80 PLUS Gold

Manufacturer Warranty: 10 Years Limited Warranty
