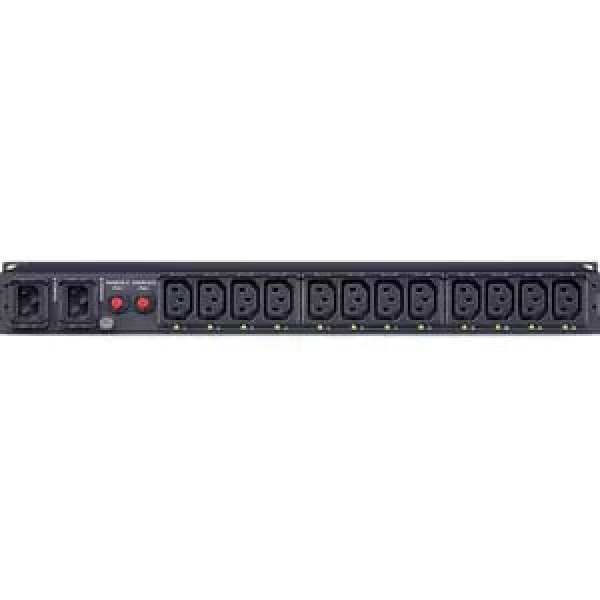

Name: CyberPower PDU44004 1U Switched Auto Transfer Switch - Black
Brand: CyberPower
SKU: PDU44004
Price: 872 AUD
Availability: InStock

CyberPower PDU44004 1U Switched Auto Transfer Switch - Black

SKU : PDU44004

Brand : CyberPower

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # CyberPower | Model # PDU44004

CyberPower PDU44004 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source within 10 ms (Source Failure Detection Time: 2-3 ms. Power Source Transfer Time: 2-7 ms) to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.

Features:

Real-time Local/Remote Monitoring and Switching
Dual Inputs
Industrial-grade Metal Housing
User Configurable Color LCD
LED Status Indicator
Support Environmental Sensor
PowerPanel Management Software
Cord Retention Tray

Overview:

Color: Black
Type: Switched
Phase: Single Phase
Dual Power Inputs: Yes
Color LCD: Yes
A-type USB Port: Yes
Dimensions (WxHxD) (in.): 17.05 x 1.75 x 8.45

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

General:-
Type	Switched
Phase	Single Phase
Input:-
Dual Power Inputs	Yes
Nominal Input Voltage ( Vac )	200 ~ 240
Input Frequency ( Hz )	50 / 60
Maximum Input Current ( A )	12 (UL) 10 (CE)
Overload Protection	Circuit Breaker
Input Connector Type	IEC C14 x 2
Power Cord Length (ft.)	10
Power Cord Length (m.)	3.05
Output:-
Output Voltage ( V )	Depends on Input
Outlets - # of Bank(s) ( Bank )	1
Outlet(s) - Total	12
Outlet(s) - Rear	12
Outlet Type	IEC C13 x 2
Remote Individual Outlet Control	Yes
Management & Communications:-
LCD Information Display	Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Kilowatts), Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version
Color LCD	Yes
Hot-swappable LCD Module	Yes
LCD Setting & Control	Preferred Source, Source Configuration, Load Configuration, Outlet Control, LCD Settings, Reset / Reboot
LED Indicators	PDU Status, Source Status, Load, Tx/Rx, Link, Outlet
A-type USB Port	Yes
Connectivity Port	RJ45, RJ45 (for Serial), RJ45 (for Environmental Sensor/Daisy Chain (In)), RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported	Yes
User-upgradeable Firmware	Yes
Power Management Software	PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog
Authentication	RADIUS, LDAP, LDAPS, Windows AD
Physical:-
Installed Rack Height (U)	1
Form Factor	1U Horizontal Rackmount
Enclosure Construction	Steel
Color	Black
Cord Retention Tray	Yes
IEC Receptacle Locking	Yes
External Site Ground Pin	Yes
Adjustable Mounting Brackets	1 Set
Physical Size:-
Dimensions (WxHxD) (in.)	17.05 x 1.75 x 8.45
Dimensions (WxHxD) (mm.)	433 x 44 x 215
Weight (lbs.)	8.2
Weight (kg.)	3.7
Shipping Dimensions:-
Dimensions (WxHxD) (in.)	21.65 x 4.9 x 15.67
Dimensions (WxHxD) (mm.)	550 x 125 x 398
Environmental:-
Operating Temperature (°F)	32 ~ 113
Operating Temperature (°C)	0 ~ 45
Operating Relative Humidity (Non-condensing) ( % )	0 ~ 95
Operating Elevation ( feet/meters )	0-13,123 feet (0-4,000 meters)
Storage Temperature (°F)	5 ~ 131
Storage Temperature (°C)	-15 ~ 55
Storage Relative Humidity (Non-condensing) ( % )	0 ~ 95
Storage Elevation ( feet/meters )	0-49,213 feet (0-15,000 meters)
Certifications:-
Certifications	CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368
RoHS	Yes
