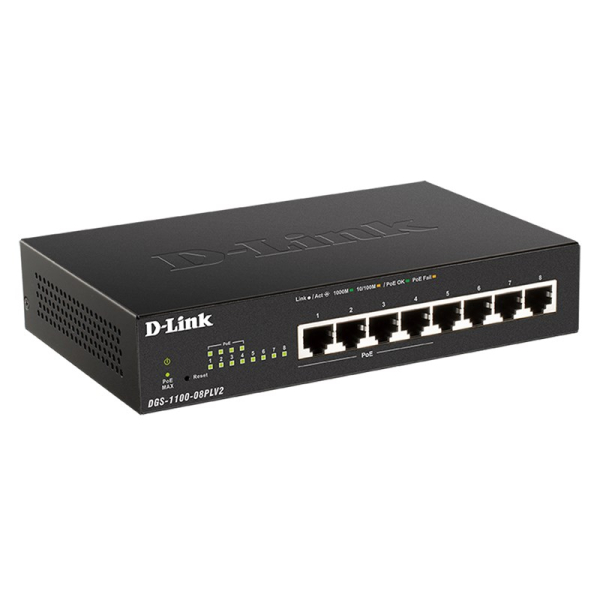

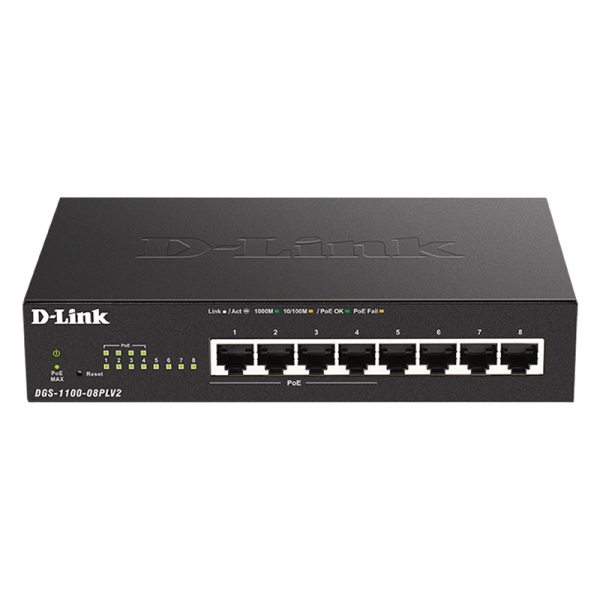

D-link 08PLV2 8-Port Gigabit Smart Managed PoE Switch with 4 PoE ports

SKU : DGS-1100-08PLV2
Brand : D-LINK
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Number of Ports: 5 - 16, PoE Type Required: PoE|PoE+, 1000Base-T ports: 8 Ports, PoE ports: 4 Ports, Switching Capacity: 16 Gbps, VLAN: 32 Groups, Warranty: 03 Years, DGS-1100-08PLV2.
Ask a question about this product
$181.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # D-Link | Model # DGS-1100-08PLV2



Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.



Features:

  • 8 x 10/100/1000BASE-T ports with 4 x PoE+ ports
  • PoE+ support with up to 30W per port
  • 80 Watts PoE Power Budget
  • Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
  • Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
  • Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
  • IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic



Overview:

  • Number of Ports: 5 - 16
  • PoE Type Required: PoE|PoE+
  • 1000Base-T ports: 8 Ports
  • PoE ports: 4 Ports
  • Switching Capacity: 16 Gbps
  • VLAN: 32 Groups



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Switch Type Layer 2
Type of Port Required Gigabit Copper
Number of Ports 5 - 16
PoE Type Required PoE|PoE+
High Speed Stacking No
Design Desktop|Fanless
1000Base-T ports 8 Ports
PoE ports 4 Ports
PoE Budget 80 Watts
Switching Capacity 16 Gbps
QoS Yes
Spanning Tree Protocol Yes
Link Aggregation Yes
VLAN 32 Groups
Surveillance VLAN Yes
Jumbo Frame 10000 bytes
Voice VLAN Yes
IGMP Snooping Yes
Cable Diagnostics Yes
Energy Saving Technology EEE Compliant|D-Link Green|RoHS 6 Compliant
19" Rack Mountable No
Fans Fanless
Dimensions (Size) 190 x 120 x 38 mm
Web-based GUI Yes
Command Line Interface No
Types of ports Gigabit Ports
Static Routing No
Switch Series DGS-1100 Series
