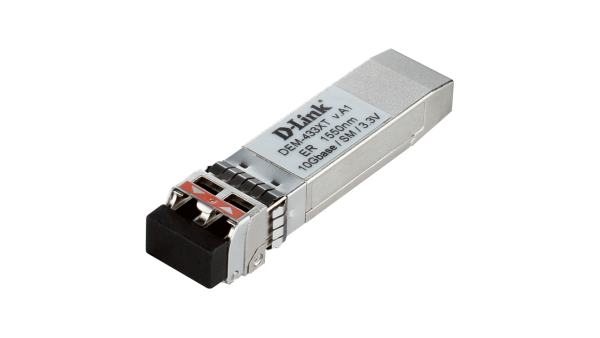

D-link 433XT 10GBase-ER SFP+ 40km Transceiver

Name: D-link 433XT 10GBase-ER SFP+ 40km Transceiver
Brand: D-LINK
SKU: DEM-433XT
Price: 1128 AUD
Availability: InStock

SKU : DEM-433XT

Brand : D-LINK

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Transceiver Type: SFP+, Fiber Media support: Single-Mode, Distance: 40KM, Speed: 10Gbps, connector: Duplex LC Connector, Wavelength: 1550nm, 01 Year Limited Warranty, DEM-433XT.

Ask a question about this product

$1,128.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # D-link | Model # DEM-433XT

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

Features:

Enhanced Small Form-Pluggable (SFP+) form factor
Hot pluggable
Support 10G Ethernet
Feature Digital Diagnostics Monitoring (DDM)
RoHS Compliant
Compliant with MSA (Multiple Source Agreement)
Compliant with IEEE802.3ae and 802.3aq standards

Overview:

Transceiver Type: SFP+
Fiber Media support: Single-Mode
Distance: 40KM
Speed: 10Gbps
connector: Duplex LC Connector
Wavelength: 1550nm

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Hot Pluggable	Yes
MSA Compliant	Yes
RoHS Compliant	Yes
Compliant Standard	IEEE-802.3ae 10GBASE-ER
Transceiver Type	SFP+
Fiber Channel FC-PI standard	NA. [No standard definition]
Fiber Media support	Single-Mode
Distance	40KM
Speed	10Gbps
connector	Duplex LC Connector
single/bi Direction	single-direction
Wavelength	1550nm
Output Optical Power (TX Optical Power)	MAX.: +3 dBm
Interface	MIN:-14.1 dBm
Input Optical Power (RX Optical Power)	MAX.: -1.0 dBm
Sensitivity	-14.1 dBm
Cable Type	single-mode 9/125um fiber
Power	3.3V
Max Input Current	3.3V: 500mA
Power Budget (MIN Power Budget)	11.1dB
MAX Power Budget	17.1dB
Heat Generated	5.94KJ/H
MTBF (hours)	1580000
Operation Temperature	0°C 70°C
Storage Temperature	-40°C 85°C
Humidity (Operating)	5% ~ 85%
Humidity (Storage)	5% ~ 95%
Dimension ( W x D x H )	Comply with SFF8432 14.8 x 56.5 x 11.85 mm
Weight	20g
