DrayTek Vigor DV167 VDSL2 ADSL2+ 2x GbE LAN Modem Router

Name: DrayTek Vigor DV167 VDSL2 ADSL2+ 2x GbE LAN Modem Router
Brand: DrayTek
SKU: DV167
Price: 196 AUD
Availability: InStock

SKU : DV167

Brand : DrayTek

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Fixed WAN Port: 1x RJ-11 for VDSL2 35b/ADSL2+, LAN Port: 2x Gigabit Ethernet RJ-45, Max. VDSL Speed: 300 Mbps, Max. ADSL Speed: 20 Mbps, Max. Number of NAT Sessions: 10,000, ADSL Standards: ANSI T1.413, ITU-T G.992.1(G.dmt), ADSL2 Standards: ITU-T G.992.3, G.992.3 Annex M/J, ADSL2+ Standards: ITU-T G.992.5, G.992.5 Annex M/J, IPv4: PPPoE, DHCP, Static IP, PPTP/L2TP, Virtual WAN: Yes, PPPoE Pass-Through: Yes, MPoA Bridge: Yes, Dynamic DNS: Yes, DHCP Server: Custom DHCP options, MAC Binding, Routing: IPv4 Static Routing, RIP, Warranty: 01 Year Limited Warranty

Ask a question about this product

$196.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Draytek | Model # DV167

Vigor167 is a VDSL2 router/modem with 1 x RJ-11 port and 2 x GbE LAN ports. The built-in DSL modem is backward compatible with the ADSL2+ connection and delivers download speed up to 300 Mbps through the Supervectoring 35b technology. It is configurable for router/modem (bridge) modes and supports TR-069 based VigorACS3 remote management software.

Features:

1 x VDSL2 35b Supervectoring / ADSL2+ WAN port
2 x Gigabit Ethernet LAN ports
VDSL2 vectoring
IPv4 Static Routing
IGMP (Router Mode)
Object-oriented SPI Firewall**
IPv6 & IPv4**
Supports VigorACS 3 Central Management System for remote management

Overview:

Fixed WAN Port: 1x RJ-11 for VDSL2 35b/ADSL2+
LAN Port: 2x Gigabit Ethernet RJ-45
IPv4: PPPoE, DHCP, Static IP, PPTP/L2TP
Virtual WAN: Yes
Power Supply: DC 12V @ 0.4A

Manufacturer Warranty: 01 Year Limited Warranty

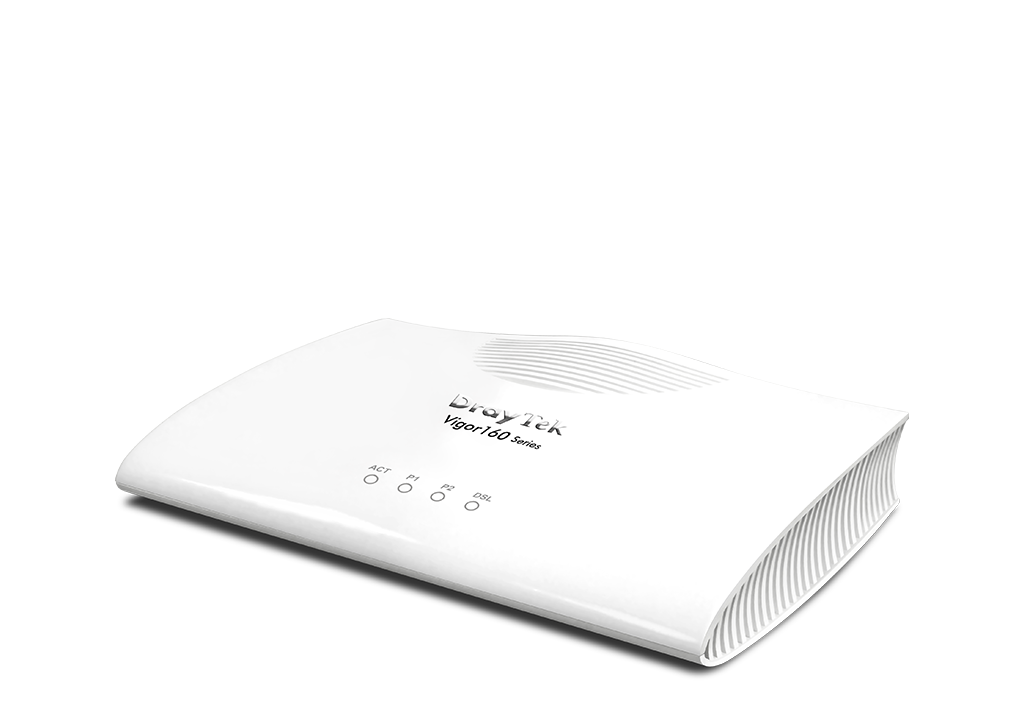

Vigor167

VDSL2 35b Supervectoring Modem Router with 2 x GbE LAN ports

VDSL2 35b

Download speed up to 300 Mbps

ADSL2/2+

Fallback capability, download speed up to 20 Mbps

2 LAN Ports

GbE RJ-45

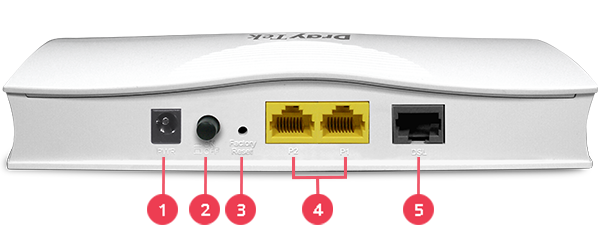

1. Power Input

2. Power On/Off Switch

3. Reset Button

4. Fixed LAN Port: 2 x GbE RJ-45

5. Fixed WAN Port: 1 x RJ-11 for VDSL2 35b/ADSL2+

Key Features

35b Supervectoring Modem

Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.

Technical Specifications

Fixed WAN Port	1x RJ-11 for VDSL2 35b/ADSL2+
LAN Port	2x Gigabit Ethernet RJ-45
Max. VDSL Speed	300 Mbps
Max. ADSL Speed	20 Mbps
Max. Number of NAT Sessions	10000
VDSL Standards	ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
VDSL2 Profile	8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (not G.Fast)
VDSL Band Plan	997, 998
ADSL Standards	ANSI T1.413, ITU-T G.992.1(G.dmt)
ADSL2 Standards	ITU-T G.992.3, G.992.3 Annex M/J
IPv4	PPPoE, DHCP, Static IP, PPTP/L2TP
ADSL2+ Standards	ITU-T G.992.5, G.992.5 Annex M/J
Virtual WAN	Yes
PPPoE Pass-Through	Yes
MPoA Bridge	Yes
Dynamic DNS	Yes
DHCP Server	Custom DHCP options, MAC Binding
Routing	IPv4 Static Routing, RIP
IGMP	IGMP v2/v3, IGMP Proxy, IGMP Snooping
Local Service	HTTP, HTTPS, Telnet, SSH v2, TR-069
Firmware Upgrade	TFTP, HTTP, TR-069
Syslog	Yes
Managed by VigorACS 3	Yes
Broadcast DSL Info to LAN	Yes
Power Supply	DC 12V @ 0.4A
Max. Power Consumption	4.4 watts
Dimension	181mm x 125mm x 40mm
Weight	270g
Operating Temperature	0 to 45°C
Storage Temperature	-25 to 70°C
Operating Humidity (non-condensing)	10 to 90%
NAT	Port Redirection, Open Ports, DMZ Host, UPnP
ALG (Application Layer Gateway)	SIP, RTSP
VPN Pass-Through	PPTP, L2TP, IPsec
