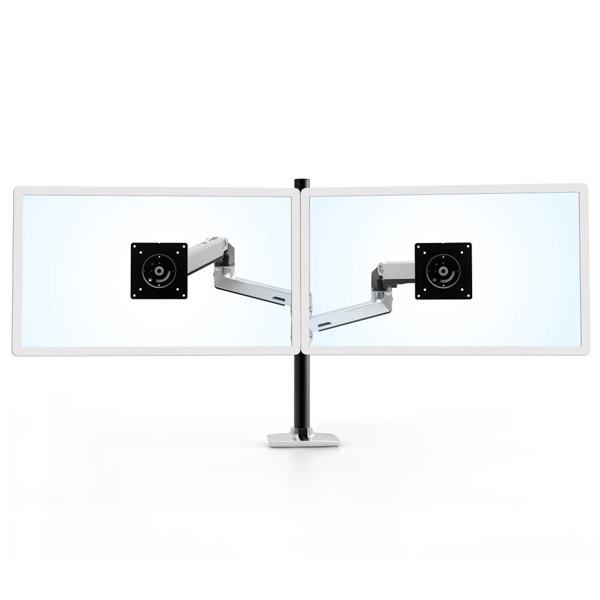

ERGOTRON Lx Dual Stacking Arm Tall Pole Bwt. ( 45-509-216

SKU : 45-509-216
Brand :
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Screen: 40", Capacity: 14–44 lbs (6.4–20.0 kg), Lift: 13" (33.0 cm), Tilt: 75°, Pan: 360°, Rotation: 360°, Vesa: MIS-D, Warranty: 10 Years Limited Warranty. Find your best view, save desk space and discover your most productive self, thanks to the LX Dual Stacking Arm, Tall Pole. This multi-monitor mount lets you position large screens separately for a new level of flexible working.
Ask a question about this product
$480.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Ergotron | Model # 45-509-216



Find your best view, save desk space and discover your most productive self, thanks to the LX Dual Stacking Arm, Tall Pole. This multi-monitor mount lets you position large screens separately for a new level of flexible working. Did the project wrap up? Reclaim a space full of opportunities by folding the arms and pushing them aside during a much-needed screen break.



Features:

  • 22" (55.9 cm) tall pole provides configuration flexibility. Ideal for larger displays
  • Add a third or fourth display using the accessory LX Arm, Extension, and Collar Kit
  • Position monitors for maximum ergonomic comfort with an unparalleled range of motion
  • Help reduce eye, back and neck strain
  • Folding arms free up space in constrained areas
  • The two-piece mounting clamp has keyhole-shaped holes for quick assembly and two clamping screws for secure installation
  • Easily turn one or both screens from landscape mode to portrait mode - view entire pages without scrolling
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
  • Patented Constant Force lift-and-pivot motion technology



Overview:

  • Construction: Aluminum and steel construction offers greater durability
  • Snap-Fit Cap: Secures interface of arms to extensions for greater stability
  • Grommet Mount: Attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick
  • Weight Capacity: Two arms: 7-20 lbs (3.2-9.1 kg) each
  • Three or four arms: 7-11 lbs (3.2-5 kg) each



Includes:

  • Two (2) LX arms and extensions
  • 22" pole
  • Heavy-duty two-piece desk clamp base with dual screws
  • Two (2) pole collars
  • Two (2) caps
  • Grommet mount plate and hardware
  • Monitor mounting hardware



Manufacturer Warranty: 10 Years Limited Warranty

Technical Specifications

Part Number 45-509-216 (white with grey accents)
Description LX Dual Stacking Arm, Tall Pole
Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Construction Aluminum and steel construction offers greater durability
Snap-Fit Cap Secures interface of arms to extensions for greater stability
Clamp and Grommet Mount Base New clamp and grommet mount base ensures greater stability of display and arm
Maximum Outside Height of Display To facilitate stacking of monitors, maximum outside height of display should be no more than 21" (53 cm). To align monitors side by side, maximum outside width should be no more than 40" (102 cm). Most monitors with screen sizes of 40" or less fit within this specification
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Grommet Mount Attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick
Weight Capacity Two arms: 7-20 lbs (3.2-9.1 kg) each
Three or four arms: 7-11 lbs (3.2-5 kg) each
Product Weight 19 lbs (8.62 kg)
Shipping Dimensions 17.1" x 17.7" x 29.9" (18 x 45 x 76 cm)
Shipping Weight 24 lbs (10.9 kg)
Warranty Ten (10) years
