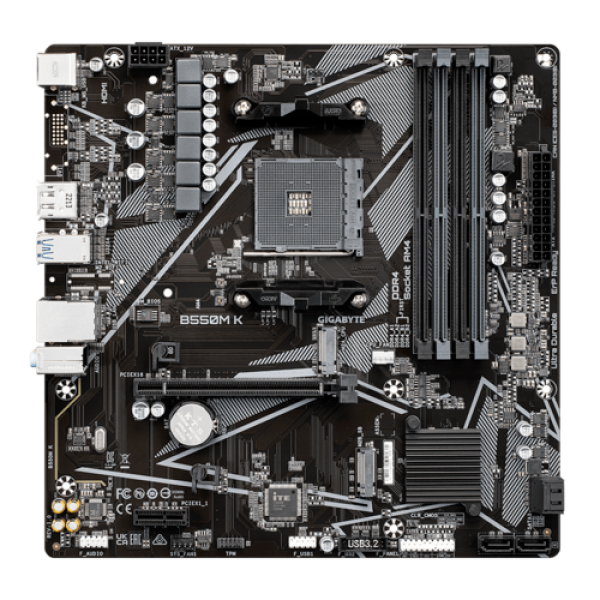

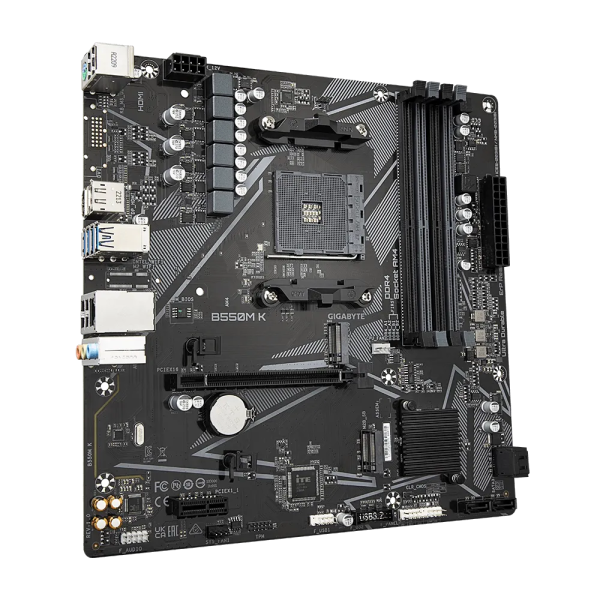

Gigabyte B550M K mATX AM4 Motherboard Gigabyte B550M K mATX AM4 Motherboard Gigabyte B550M K mATX AM4 Motherboard

Gigabyte B550M K mATX AM4 Motherboard

SKU : B550M K
Brand : Gigabyte
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Chipset:AMD B550, RAM Capacity: upto 128GB (32GB each), DIMM Slots: 4, OS: Support for Windows 11/10 64-bit, Form Factor: Micro ATX, Dimensions: 24.4cm x 24.4cm, Warranty: 03 Years, B550M K.
Ask a question about this product
$136.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Gigabyte | Model # B550M K



GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.



Features:

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Ultra Durable PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GbE LAN with Bandwidth Management
  • Rear DisplayPort and HDMI for Multi-display Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design



Overview:

  • Chipset:  AMD B550,
  • RAM Capacity:  upto 128GB (32GB each),
  • DIMM Slots:  4,
  • OS:  Support for Windows 11/10 64-bit,
  • Form Factor:  Micro ATX,
  • Dimensions:  24.4cm x 24.4cm.



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

General

Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
AMD B550
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
AM4
support for: AMD Ryzen 5000 Series
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Support for Q-Flash
Support for Xpress Install

Memory

RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 128GB (32GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
4
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Onboard Graphics

With HDMI
1 x HDMI port
supporting a maximum resolution of 4096x2160@60 Hz
With DisplayPort
supporting a maximum resolution of 5120x2880@60 Hz

Wireless Communication

Wi-Fi Wi-Fi is a wireless networking technology that allows devices such as computers, mobile devices, and other equipments to interface with the Internet.
Bluetooth Bluetooth is a wireless technology that enables the exchange of data between devices using wavelength.

Slots And Ports

Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
1 x PCI Express x16 slot
1 x M.2 connector M key, type 2280 integrated in the CPU
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Software

Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Support for Windows 11/10 64-bit
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Physical

Form Factor The motherboard's form factor indicates the shape and size specifications of the board.
Micro ATX
Dimensions
24.4cm x 24.4cm
