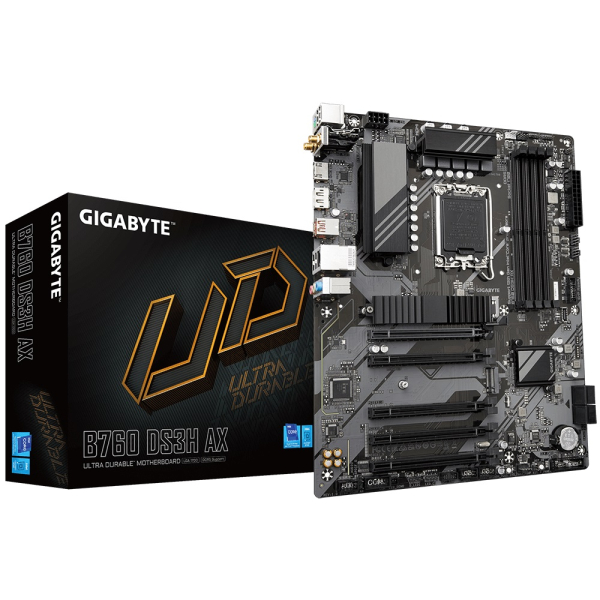

Name: Gigabyte B760 DS3H AX DDR5 ATX LGA1700 Motherboard
Brand: Gigabyte
SKU: B760 DS3H AX
Price: 245 AUD
Availability: InStock

Gigabyte B760 DS3H AX DDR5 ATX LGA1700 Motherboard

SKU : B760 DS3H AX

Brand : Gigabyte

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # Gigabyte | Model # B760 DS3H AX

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Features:

Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors
Unparalleled Performance: Hybrid 8+2+1 Phases Digital VRM Solution
Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: Rear USB-C 20Gb/s, DP, HDMI
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Overview:

Chipset: Intel B760
RAM Capacity: upto 192GB (48GB each)
DIMM Slots: 4
OS: Support for Windows 11/10 64-bit
Form Factor: ATX

Manufacturer Warranty: 03 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

General

Chipset

Intel B760

Socket

LGA1700 socket
Support for the 13th and 12th Generation Intel Core Pentium Gold and Celeron Processors

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus

Memory

RAM Capacity

upto 192GB (48GB each)

DIMM Slots

RAM Frequency Supports

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

Onboard Graphics

With HDMI

1 x HDMI port
Supporting a maximum resolution of 4096x2160@60 Hz

With DisplayPort

1 x DisplayPort
Supporting a maximum resolution of 4096x2304@60 Hz

Wireless Communication

Wi-Fi

Bluetooth

Slots And Ports

Expansion Slots

1 x PCI Express x16 slot
4 x PCI Express x16 slots
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
