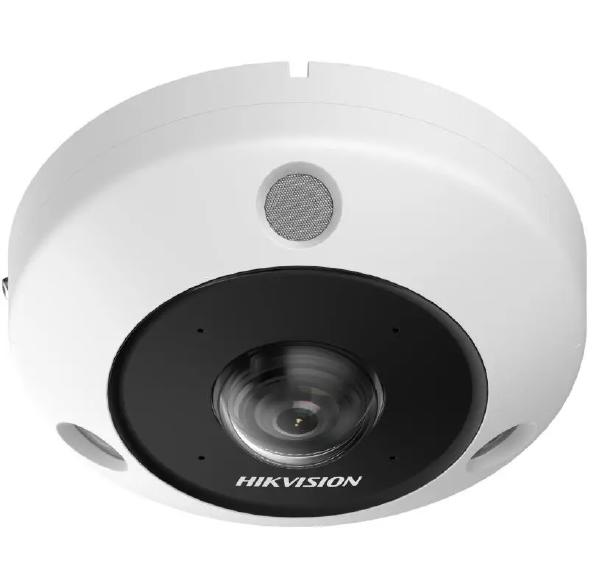

Hikvision 12 MP DeepinView Fisheye Network Camera 360 Degree

Name: Hikvision 12 MP DeepinView Fisheye Network Camera 360 Degree
Brand: Hikvision
SKU: HIK-DS-2CD63C5G1-IVS
Price: 1465 AUD
Availability: InStock

SKU : HIK-DS-2CD63C5G1-IVS

Brand : Hikvision

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

This high-performance security camera features a 1/1.8 Progressive Scan CMOS image sensor with a max resolution of 3504 × 3504. It supports a wide range of viewing angles with its 180° horizontal and vertical FOV and provides IR illuminators for low-light environments. With advanced video compression (H.265+/H.265/H.264+/H.264) and multiple video streaming options, it is ideal for various surveillance applications. The camera also includes deep learning capabilities, noise filtering for audio, and supports multiple mounting options.

Ask a question about this product

$1,465.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: Hikvision | Model: HIK-DS-2CD63C5G1-IVS

The 360° Fisheye Network Camera is designed for wide-area surveillance, featuring a high-resolution 1/1.8" Progressive Scan CMOS sensor with a maximum resolution of 3504 × 3504. With advanced fisheye lens technology, IR night vision, and deep learning capabilities, this camera delivers exceptional video quality and AI-driven analytics.

Key Features:

High-Resolution Sensor: 1/1.8" CMOS, 3504 × 3504 resolution
Ultra-Wide Field of View: 180° horizontal & vertical FOV
Low Light Performance: 0.03 Lux (Color), 0.006 Lux (B/W), 0 Lux with IR
Smart IR Illumination: 3 IR LEDs, 15m range, 850 nm wavelength
AI & HEOP Processing: Supports Caffe, TensorFlow, PyTorch
Flexible Viewing Modes: Fisheye, 180° Panorama, 4PTZ, and more
Multiple Streams: H.265+/H.265/H.264+/H.264/MJPEG support
Smart Audio Features: Noise filtering, multiple compression formats
Mounting Options: Wall, ceiling, and table mounting supported

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3504 × 3504
Min. Illumination	Color: 0.03 Lux @ (F2.2, AGC ON), B/W: 0.006 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Lens	Lens Type: Fixed focal lens, 1.29 mm Focal Length & FOV: 1.29 mm, horizontal FOV 180°, vertical FOV 180° Iris Type: Fixed Aperture: F2.2 Depth of Field: 0.2 m to ∞
DORI	D: 27.9 m O: 11.1 m R: 5.6 m I: 2.8 m
Illuminator	Supplement Light Type: IR Supplement Light Range: Up to 15 m Supplement Light Number: 3 IR Wavelength: 850 nm Smart Supplement Light: Yes
HEOP	Open Resources: Memory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB Computing Power: 2 TOPS Open Capability: HEOP 2.0 OpendevSDK Deep Learning Structure: Caffe, TensorFlow, PyTorch Programming Language: C, C++
Video	Main Stream: 50 Hz: 25 fps / 60 Hz: 30 fps Fisheye View: 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048 180 Panorama View: 3072 × 2304, 2048 × 1536 180 Dual Channel Panorama View: 3072 × 1152 Panorama View: 3072 × 2304, 2048 × 1536 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200 Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280 Fisheye + 3PTZ View: camera 02/camera 03/camera 04: 1600 × 1200 4PTZ Fusion View: 3200 × 2400, 2048 × 1536
Sub-Stream	50 Hz: 25 fps / 60 Hz: 30 fps Fisheye View: 720 × 720, 480 × 480 180 Panorama View: 640 × 480, 320 × 240 180 Dual Channel Panorama View: 640 × 480, 320 × 240 Panorama View: 640 × 360, 320 × 240 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile, Main Profile, High Profile H.265 Type: Main Profile Bit Rate Control: CBR, VBR Scalable Video Coding (SVC): H.264 and H.265 encoding Region of Interest (ROI): 4 fixed regions for each stream
Fisheye Display	Mount Type: Support wall/table/ceiling mounting Decoding Mode: Support hardware decoding and software decoding Display Mode: 20 display modes in total
Audio	Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes
