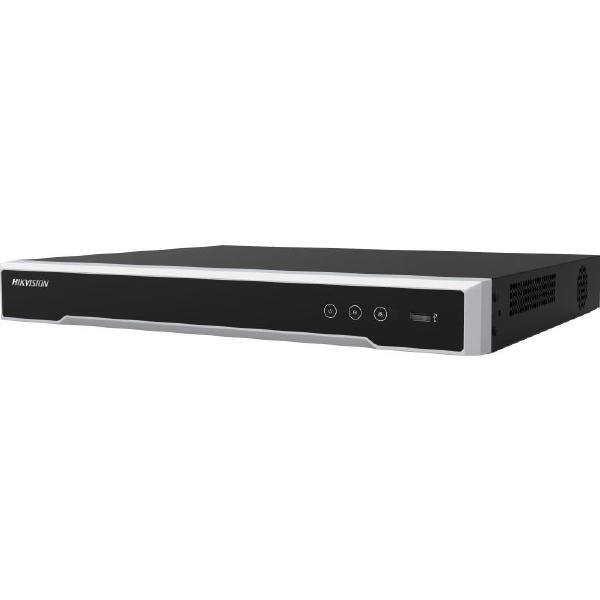

Hikvision 8P 8CH M Series Network Video Recorder inc 3TB HDD

Name: Hikvision 8P 8CH M Series Network Video Recorder inc 3TB HDD
Brand: Hikvision
SKU: DS-7608NI-M2-8P-3TB
Price: 951 AUD
Availability: InStock

SKU : DS-7608NI-M2-8P-3TB

Brand : Hikvision

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

High-performance 8-channel NVR supporting up to 32 MP resolution, 128 Mbps incoming and 256 Mbps outgoing bandwidth. Offers 8K HDMI output, PoE support, and dual-stream recording in H.265+/H.265/H.264 formats. Includes advanced network protocols, remote access, and up to 16 TB storage capacity for comprehensive surveillance solutions.

Ask a question about this product

$951.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: Hikvision | Model: DS-7608NI-M2-8P-3TB

The 8-Channel 32MP NVR is a high-performance video recording solution designed for professional surveillance applications. It supports ultra-HD video input, high-bandwidth data processing, and multiple output options, making it ideal for demanding security environments.

Key Features:

High-Resolution IP Video Input: 8-ch up to 32 MP resolution
Ultra HD Output: HDMI supports up to 8K (7680 × 4320)/30Hz resolution
High Bandwidth: 128 Mbps incoming and 256 Mbps outgoing bandwidth
Multi-Stream Decoding: Supports H.265+/H.265/H.264+/H.264 with up to 40-ch 1080p@30fps
Synchronous Playback: 8-ch playback support
Flexible Storage: Dual SATA interfaces, up to 16 TB per disk
PoE Support: 8 PoE ports, IEEE 802.3af/at, up to 120W total power
Audio & Two-Way Communication: 1-ch RCA audio output, 1-ch RCA two-way audio
Comprehensive Network Protocols: ONVIF, TCP/IP, DHCP, HTTP, HTTPS, RTSP, NTP, SMTP, and more
Multiple Alarm Interfaces: 4 alarm inputs, 1 alarm output
Power & Durability: 100-240V AC, working temperature -10°C to 55°C

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

IP Video Input	8-ch, Up to 32 MP resolution * After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth	128 Mbps
Outgoing Bandwidth	256 Mbps
HDMI Output	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
VGA Output	1920 × 1080/60Hz
Video Output Mode	HDMI/VGA independent output
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding	Dual-Stream Recording: Support Decoding Format: H.265+/H.265/H.264+/H.264 Decoding Capability: 2-ch@32 MP (30 fps)+2-ch@8 MP?30fps?/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) Synchronous Playback: 8-ch
Recording Resolution	32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network	Remote Connection: 128 Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Camera Access Protocol: ONVIF (Version 2.5), RTSP
PoE	Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power: ≤ 120 W Standard: IEEE 802.3 af/at
Auxiliary Interface	SATA: 2 SATA interfaces Capacity: Up to 16 TB capacity for each disk Alarm In/Out: 4/1 USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General	Power Supply: 100 to 240 VAC, 50 to 60 Hz Consumption: ≤ 15 W (without HDD and PoE off) Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) Working Humidity: 10% to 90% Dimension (W × D × H): 385 × 315 × 52 mm (15.2" × 12.4" × 2.0") Weight: ≤ 3 kg (without HDD, 2.2 lb.)
Certification	FCC: Part 15 Subpart B, ANSI C63.4-2014 CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
