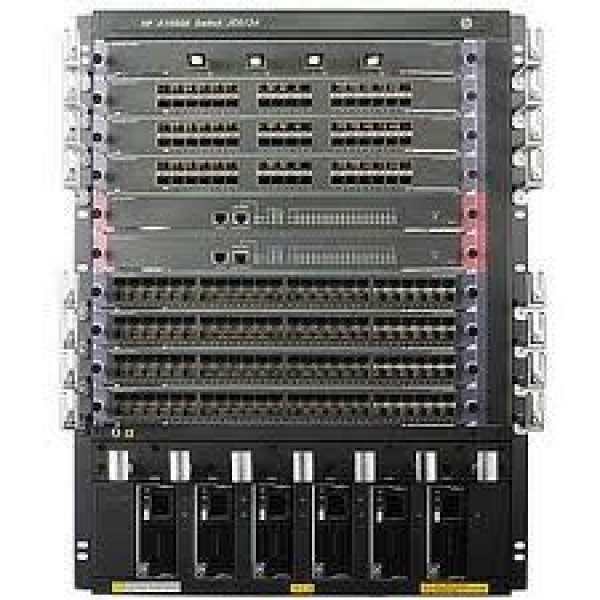

HP 10508 Managed Switch JC612A

SKU : JC612A
Brand : HP
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Capacity 2.6 Tbps, Input 100-120/200-240 VAC, Input frequency 50/60 Hz, Operating altitude up to 4 km, Throughput 1905 million pps (64-byte packets), Port 2 MPU (for management modules) slots; 4 switch fabric slots; 8 I/O module slots; Supports a maximum of 128 10-GbE ports or 384 Gigabit ports or 384 SFP ports, or a combination. The HPE 10500 Switch Series is an enterprise campus core switch designed to meet the evolving needs of a cloud-connected and rich-media-capable infrastructure.
Ask a question about this product
$13,500.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # HP | Model # JC612A



The HPE 10500 Switch Series is an enterprise campus core switch designed to meet the evolving needs of a cloud-connected and rich-media-capable infrastructure. It sets a benchmark for performance, reliability, and scalability with powerful Clos architecture (multistage switching network), offers 3-microsecond latency, delivers ultra-high 1/10/40GbE port density and supports 100GbE. With HPE Intelligent Resilient Fabric (IRF) technology, the 10500 Switch Series can be virtualized across four chassis with a single management interface-enabling flatter, more agile networks.



Features:

  • Hardware-based support for MACSec and VXLAN.HP 10508 Switch JC612A
  • To easily build Layer 2 overlay networks with Layer 3 underlays.
  • Hardware scalability for large IPv4/IPv6 campus deployments.
  • Advanced module to enable VXLAN routing to support advanced data center networks.



Overview:

  • Throughput: 1905 million pps (64-byte packets)
  • Routing table size: 512000 entries
  • Switching capacity: 2.6 Tbps
  • Input voltage: 100-120/200-240 VAC
  • Input operating current: 16 A



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Ports 2 MPU (for management modules) slots; 4 switch fabric slots; 8 I/O module slots; Supports a maximum of 128 10-GbE ports or 384 Gigabit ports or 384 SFP ports, or a combination
Mounting Mounts in an EIA-standard 19 in. rack or other equipment cabinet (hardware included); horizontal surface mounting only
Memory and processor Management module : MIPS64 @ 1G MHz, 128 MB flash, 1024 MB DDR2 SDRAM
Throughput 1905 million pps (64-byte packets)
Routing table size 512000 entries
Management features IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; terminal interface (serial RS-232C); modem interface; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB
Switching capacity 2.6 Tbps
Input voltage 100-120/200-240 VAC
Input operating current 16 A
Input frequency 50/60 Hz
Safety CAN/CSA 22.2 No. 60950-1; FCC Part 15, Subpart B; FDA 21 CFR Subchapter J; ROHS Compliance; IEC 60950-1 :Second Edition ; EN 60950-1:2006 + A11:2009; AS/NZS 60950-1; IEC 60825-1; UL 60950-1, 2nd Edition; EN60825-2:2004+A1:2007
Electromagnetic compatibility VCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3; ICES-003 Class A; AS/NZS CISPR22 Class A; FCC (CFR 47, Part 15) Class A; GB9254
Operating temperature range 0 to 45C
Operating humidity range 10 to 95% (noncondensing)
Operating altitude up to 4 km
Acoustic pressure emissions 63 dB (Low-speed fan), 75.8 dB (High-speed fan)
Dimensions (W x D x H) 66.0 x 44.0 x 62.0 cm
Weight 122.95
Weight note (metric) chassis
