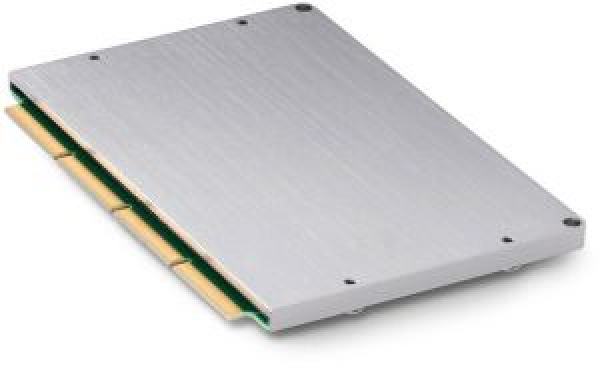

Intel CM11EBi58W NUC 11 i5-1135G7 8GB Compute Element

SKU : BKCM11EBI58W
Brand : Intel
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Intel BKCM11EBI58W Compute Element, Launch Date Q1'21, Included Intel Core i5-1135G7 Processor (8M Cache, up to 4.20 GHz), Cores 4, Threads 8, Turbo Frequency 4.20 GHz, Memory 8GB (dual-channel), LPDDR4x-4266, Intel Iris Xe Graphics, Graphics Output 2x DDI (DP or HDMI), 1x DP/typeC, 1x eDP, Displays Supported 4, LAN Built-in GbE MAC (for i219 PHY), Wireless Intel Wi-Fi 6 AX201, Port 1x Thunderbolt 4. With minimal R&D time, Intel NUC Elements enable you to design integrated systems for digital signage, kiosks, cameras, and other deployments.
Ask a question about this product
$521.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Intel | Model # BKCM11EBI58W



With minimal R&D time, Intel NUC Elements enable you to design integrated systems for digital signage, kiosks, cameras, and other deployments. Or, easily build a rugged solution for harsh environments. Compact and powerful, the Intel NUC Compute Element along with Intel NUC Chassis Elements (sold separately), deliver the flexibility of modular computing so you can create custom solutions to fit your clients’ exact needs.



Features:

  • Intel NUC Elements are a system of modular components that let you create small, high performance solutions for a range of verticals.
  • The modular design of Intel NUC Elements simplifies serviceability and makes upgrading your customers’ systems easier.
  • Innovated and designed by Intel to eliminate the research and development time of systems for new usages and verticals.
  • The Intel NUC 11 Compute Element is the heart of your PC and gives you the performance you need with modern day advanced technologies and connectivity.
  • It comes with processor, memory and all the I/O you need in a tiny package.



Overview:

  • Processor Included: Intel Core i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
  • Intel vPro Platform Eligibility: No
  • # of Cores: 4
  • # of Threads: 8
  • Max Turbo Frequency: 4.20 GHz
  • Included Memory: 8GB (dual-channel)
  • Memory Types: LPDDR4x-4266



Manufacturer Warranty: 03 Year Limited Warranty

Technical Specifications

Product Collection Intel NUC Compute Elements
Code Name Products formerly ELK BAY
Status Launched
Launch Date Q1'21
Supported Operating Systems Windows 10, 64-bit, Windows 10 IoT Enterprise, Red Hat Linux, Ubuntu 20.04 LTS
Board Form Factor U-Series Compute Element (95 x 65 x 6 mm)
Processor Included Intel Core i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
Intel vPro Platform Eligibility No
# of Cores 4
# of Threads 8
Max Turbo Frequency 4.20 GHz
Warranty Period 3 Years
Included Memory 8GB (dual-channel)
Memory Types LPDDR4x-4266
ECC Memory Supported No
Processor Graphics Intel Iris Xe Graphics
Integrated Graphics Yes
Graphics Output 2x DDI (DP or HDMI), 1x DP/typeC, 1x eDP
# of Displays Supported 4
PCI Express Configurations 1x PCIe x4 Gen 3 (NVMe/SATA)
1x PCIe x4 Gen 4 (NVMe)
1x PCIe x1 Gen 3
USB Configuration 4x USB 3.2 Gen 2
3x USB 2.0
Integrated LAN Built-in GbE MAC (for i219 PHY)
Integrated Wireless Intel Wi-Fi 6 AX201
Integrated Bluetooth Yes
Additional Headers HD Audio, DMIC, eSPI
# of Thunderbolt Ports 1x Thunderbolt 4
Intel Virtualization Technology for Directed I/O (VT-d)* Yes
Intel vPro Platform Eligibility No
Intel ME Firmware Version 15
Intel Virtualization Technology (VT-x) Yes
Intel Platform Trust Technology (Intel PTT) Yes
Intel AES New Instructions Yes
Intel Trusted Execution Technology* No
