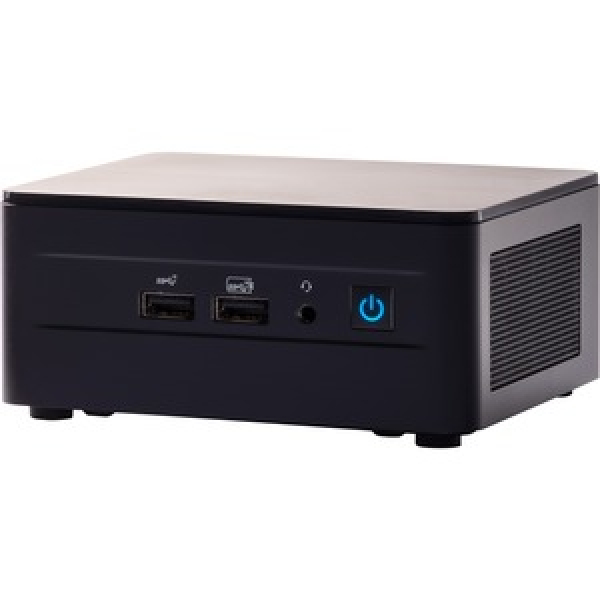

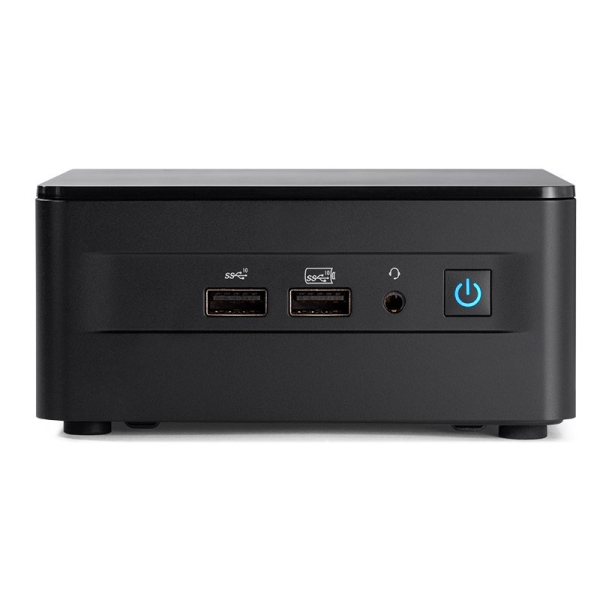

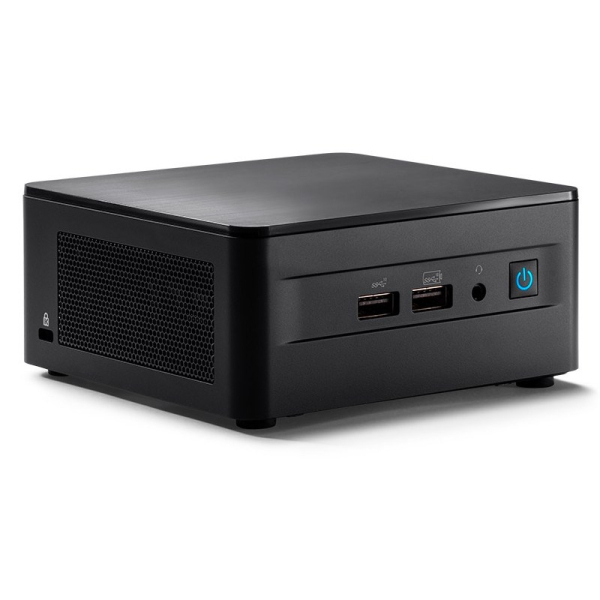

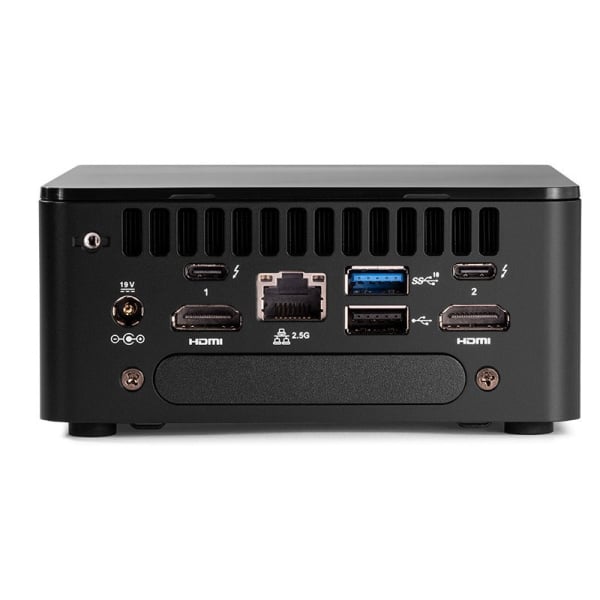

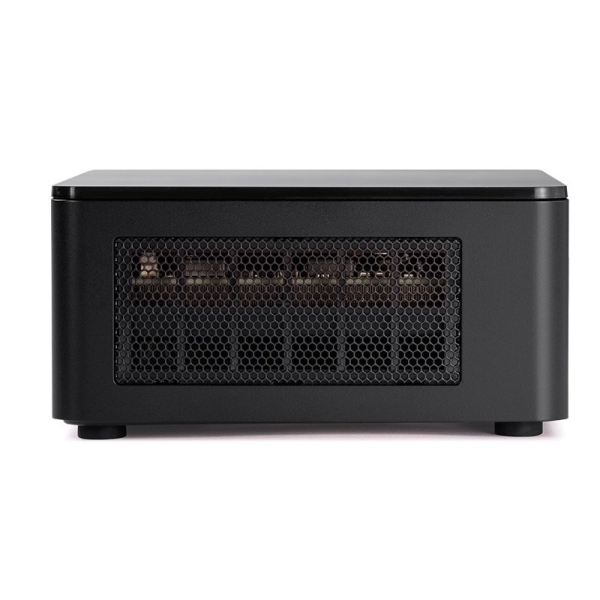

Intel NUC 12 i5-1240P 12th Gen Mini PC 4.40 GHz Barebone Kit

SKU : RNUC12WSHI50000
Brand : Intel
This product is either discontinued or we cannot get that from suppliers.
Board Form Factor: UCFF (4" x 4"), Socket: Soldered-down BGA, Internal Drive Form Factor: M.2 and 2.5" Drive, USB Ports: 4, Total Cores: 12, Total Threads: 16, 03 Years Limited Warranty, RNUC12WSHI50000.
Ask a question about this product
Call Us

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Intel | Model # RNUC12WSHI50000



Intel NUC 12 Pro Kits raise the bar for performance and connectivity in a 4x4 device for productivity, collaboration, and edge compute. 12th Gen Intel Core processors plus up to 64GB dual channel memory and massive SSD capacity drive enterprise-class performance in a pint-sized PC. Collaboration is faster and easier than ever with lightning-fast wired and wireless connectivity options.



Features:

  • Boost business performance with 12th Gen Intel Core processors and the latest features to support productivity, collaboration, and edge compute.
  • High-performance 12th Gen Intel Core i5 processors are designed to amplify employee productivity with industry-leading performance tuned for the workloads and applications business professionals use most.
  • With 12th Gen Intel Core processors, the NUC 12 Pro Kits delivers performance, security, stability, and manageability features for managed businesses of all sizes.
  • Intel NUC 12 Pro kit features all the performance, ports, and capabilities required to meet the demands of an evolving working environment.


Overview:

  • Board Form Factor: UCFF (4" x 4")
  • Socket: Soldered-down BGA
  • Internal Drive Form Factor: M.2 and 2.5" Drive
  • USB Ports: 4
  • Total Cores: 12
  • Total Threads: 16



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Supported Operating Systems Windows 11 Home
Windows 11 Pro
Windows 10 Home
Windows 10 IoT Enterprise
Windows 10 Pro
Red Hat Linux
Ubuntu 20.04 LTS (not included)
Board Number NUC12WSBi5
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5" Drive
Internal Drives Supported 3
TDP 35 W
DC Input Voltage Supported 12-20 VDC
Processor Included Intel Core i5-1240P Processor (12M Cache, up to 4.40 GHz)
Total Cores 12
Total Threads 16
Lithography Intel 7
Max Turbo Frequency 4.40 GHz
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SODIMMs
Max Memory Channels 2
Max DIMMs 2
ECC Memory Supported No
Integrated Graphics Yes
Graphics Output Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
Displays Supported 4
PCI Express Revision Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations ‡ PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)
M.2 Card Slot (wireless) 22x30 (E)
M.2 Card Slot (storage) 22x80 NVMe (M)
22x42 SATA (B)
USB Ports 4
USB Configuration Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Serial Port via Internal Header No
Audio (back channel + front channel) Front panel: 3.5mm headphone/mic jack
Integrated LAN Intel Ethernet Controller i225-V
Integrated Wireless‡ Intel Wi-Fi 6E AX211(Gig+)
Integrated Bluetooth Yes
Additional Headers Front_panel (PWR
RST
5V
5Vsby
3.3Vsby)
Internal 2x2 power connector
Thunderbolt Ports 2x Thunderbolt 4
Intel Optane Memory Supported No
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel ME Firmware Version 16
Intel HD Audio Technology Yes
Intel Virtualization Technology (VT-x) Yes
Intel Platform Trust Technology (Intel PTT) Yes
