InWin A3 Mini Tower Tempered Glass Side Panel Micro-ATX Case Black

SKU : IW-CS-A3BLK-1AM120S
Brand : InWin
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Colors: Black, Case Type: Mini Tower, Materials: SECC, Tempered Glass, PC-ABS, M/B Compatibility: Micro-ATX, Mini-ITX, Expansion Slots: 4 x PCI-E, 05 Years Limited Warranty, IW-CS-A3BLK-1AM120S.
Ask a question about this product
$134.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # InWin | Model # IW-CS-A3BLK-1AM120S

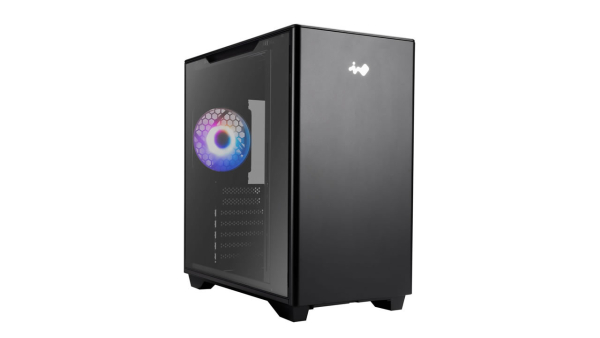

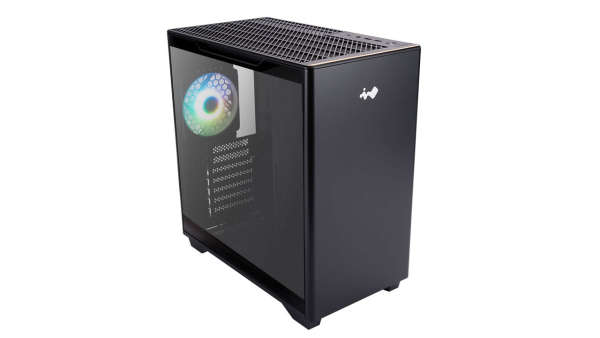

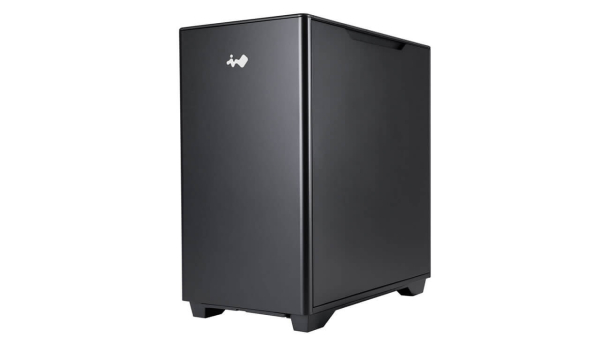

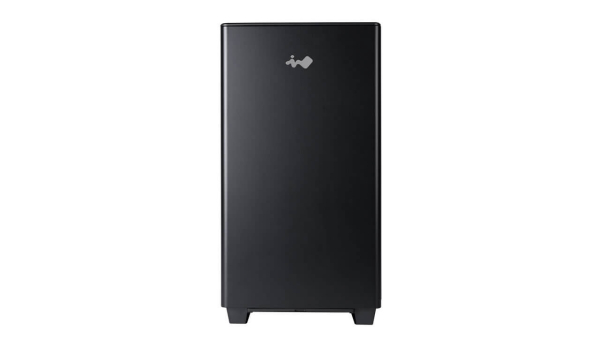

The A3 is a space-efficient chassis. It’s smaller than most Micro-ATX cases. Despite this, it can house high-end graphics cards of different sizes, including up to 3-slot GPUs.



Features:

  • The tinted tempered glass side panel complements the A3’s overall modern vibe. The front panel is pristinely clean and is embellished with a golden sheet.
  • This mini tower can support up to Micro-ATX system builds, while accommodating high-end graphics cards and power supply.
  • The A3 supports multiple 2.5” / 3.5” storage devices. The case offers strategically placed channels behind the motherboard tray for clean and easy cable management.
  • Since heat rises, the A3’s internal layout works in accordance to this fact. The top and bottom feature ventilated filter panels to combat dust and heat. With the PSU secured at the front, air can naturally propel upwards in the main chamber.


Overview:

  • Colors: Black
  • Case Type: Mini Tower
  • Materials: SECC, Tempered Glass, PC-ABS
  • M/B Compatibility: Micro-ATX, Mini-ITX
  • Expansion Slots: 4 x PCI-E



Manufacturer Warranty: 05 Years Limited Warranty

Technical Specifications

Colors Black
Case Type Mini Tower
Materials SECC, Tempered Glass, PC-ABS
M/B Compatibility Micro-ATX, Mini-ITX
Expansion Slots 4 x PCI-E
Maximum Compatibility GPU Length: 340 mm
CPU Heatsink Height: 162 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
Internal Drive Bays 2 x 3.5" / 2.5"
1 x 2.5"
Thermal Solution Compatibility Air Cooling Fans: Top: 2 x 120 mm
Rear: 1 x 120 mm
Bottom: 2 x 120 mm
(1 InWin Mercury AM120S Fan Included)

Water Cooling Radiator: Top: 1 x 240 mm
Power Supply Compatibility PSII: ATX12V
Length between 140 - 200 mm
(PSUs longer than 170 mm will need to build with GPUs 280 mm or shorter)
Product Dimensions (L x W x H) 401 x 215 x 347 mm
15.8 x 8.5 x 13.7"
Net Weight 5.24 kg / 11.55 lbs
