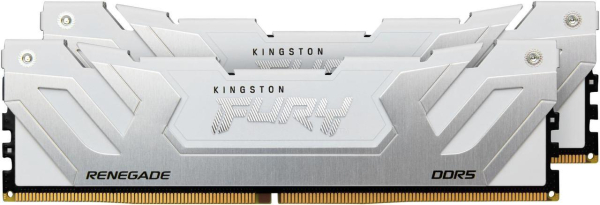

Kingston 48GB 8400MT/s DDR5 CL40 CUDIMM Kit of 2 White XMP KF584CU40RWK2-48

Manufacture: Kingston | Model: KF584CU40RWK2-48

Kingston FURY KF584CU40RWK2-48 is a kit of two 3G x 64-bit (24GB) DDR5-8400 CL40 Clocked Unbuffered DIMMs (CUDIMMs) 1Rx8, memory module, based on eight 3G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 48GB. Each module has been tested to run at DDR5-8400 at a low latency timing of 40-52-52 at 1.45V. The SPDs are programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

Key Features:

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.54” (39.2mm), w/heatsink

Factory Timing Parameters:

• Default (JEDEC): DDR5-6400 CL52-52-52 @1.1V
• XMP Profile #1: DDR5-8400 CL40-52-52 @1.45V
• XMP Profile #2: DDR5-8000 CL38-48-48 @1.45V
• XMP Profile #3: DDR5-7600 CL38-46-46 @1.45V
