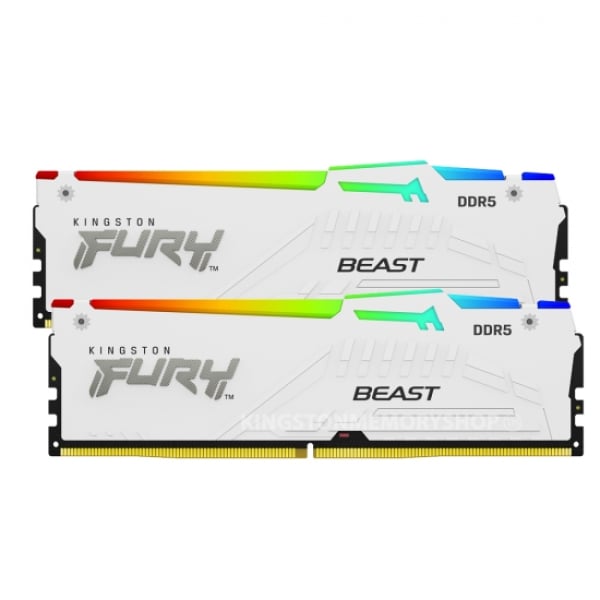

Kingston Fury Beast RGB 64GB (32GBx2) DDR5 5200MT/s CL36 DIMM Memory White

Name: Kingston Fury Beast RGB 64GB 32GBx2 DDR5 5200MT/s CL36 DIMM Memory White
Brand: Kingston
SKU: KF552C36BWEAK2-64
Price: 354 AUD
Availability: InStock

SKU : KF552C36BWEAK2-64

Brand : Kingston

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Memory Capacity: 64 GB, Clock Speed: 5200MHz (PC5-41600), Form Factor: DIMM, Pins: 288, Rank: 2R (Dual Rank), 01 Year Limited Warranty.

Ask a question about this product

$354.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: Kingston | Model: KF552C36BWEAK2-64

Kingston FURY KF552C36BWEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-5200 CL36 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.0 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-5200 at a low latency timing of 36-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

Features

Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.66” (42.23mm), w/heatsink

Factory Timing Parameters

Default (JEDEC) : DDR5-4800 CL40-39-39 @1.1V
EXPO Profile #0 : DDR5-5200 CL36-40-40 @1.25V
EXPO Profile #1 : DDR5-4800 CL38-38-38 @1.1V
XMP Profile #1 : DDR5-5200 CL36-40-40 @1.25V
XMP Profile #2 : DDR5-4800 CL38-38-38 @1.1V

Technical Specifications

CL(IDD)	40 cycles
Row Cycle Time (tRCmin)	48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)	295ns(min.)
Row Active Time (tRASmin)	32ns(min.)
UL Rating	94 V - 0
Operating Temperature	0° C to +85° C
Storage Temperature	-55° C to +100° C
