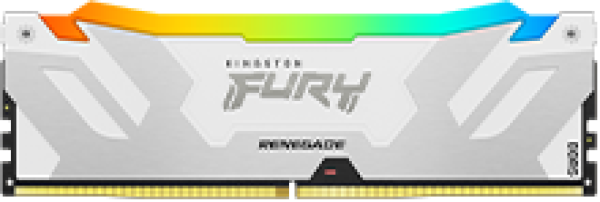

Kingston FURY Renegade 64GB DDR5 6400MT/s CL32 RGB XMP Memory Silver White

Manufacture: Kingston | Model: KF564C32RWAK2-64

Kingston FURY KF564C32RWAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

Features

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.73” (44.00mm), w/heatsink

Factory Timing Parameters

• Default (JEDEC) : DDR5-4800 CL40-39-39 @1.1V
• XMP Profile #1 : DDR5-6400 CL32-39-39 @1.4V
• XMP Profile #2 : DDR5-6000 CL32-38-38 @1.35V
• XMP Profile #3 : DDR5-4800 CL38-38-38 @1.1V
