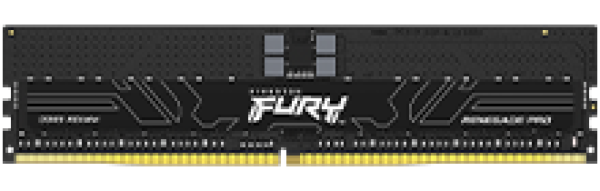

Kingston FURY Renegade Pro 32GB(1x32) DDR5-6000 ECC Memory

Manufacture: Kingston | Model: KF560R32RBE-32

Kingston FURY KF560R32RBE-32 is a 4G x 80-bit (32GB) DDR5-6000 CL32 SDRAM (Synchronous DRAM) 1Rx4, ECC memory module, based on twenty 4G x 4-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 32-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

Features

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• x80 ECC (x40, 2 independent I/O sub channels)
• 32 internal banks
• Hard/Soft Post Package Repair
• Sideband access with I3C/I2C
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

Factory Timing Parameters

• Default (JEDEC) : DDR5-4800 CL40-39-39 @1.1V
• EXPO Profile #1 : DDR5-6000 CL32-38-38 @1.35V
• EXPO Profile #2 : DDR5-5600 CL36-38-38 @1.25V
• XMP Profile #3 : DDR5-6000 CL32-38-38 @1.35V
• XMP Profile #4 : DDR5-5600 CL36-38-38 @1.25V
