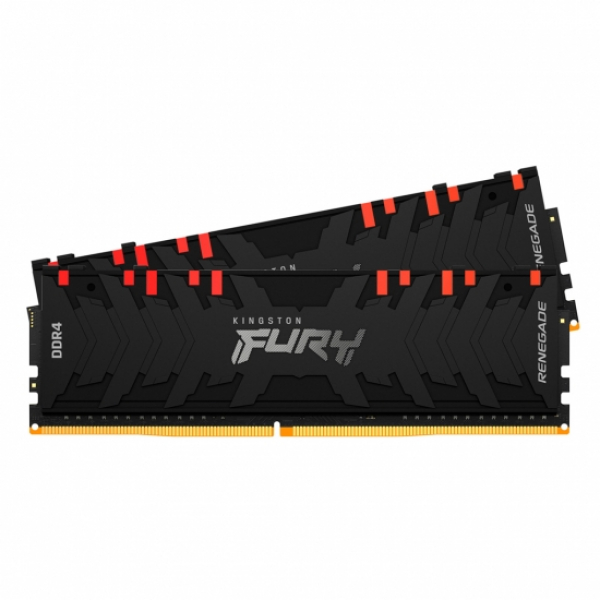

Kingston Fury Renegade RGB 64GB DDR4 3600Mhz Non ECC DIMM

Manufacture: Kingston | Model: KF436C18RBAK2/64

Kingston FURY KF436C18RBAK2/64 is a kit of two 4G x 64-bit (32GB) DDR4-3600 CL18 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 64GB. Each module has been tested to run at DDR4-3600 at a low latency timing of 18-22-22 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

Key Features:

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8-bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop)
• Height 1.66” (42.2mm), w/heatsink

Factory Timing Parameters:

• Default (JEDEC): DDR4-2400 CL17-17-17 @1.2V
• XMP Profile #1: DDR4-3600 CL18-22-22 @1.35V
• XMP Profile #2: DDR4-3000 CL16-18-18 @1.35V
