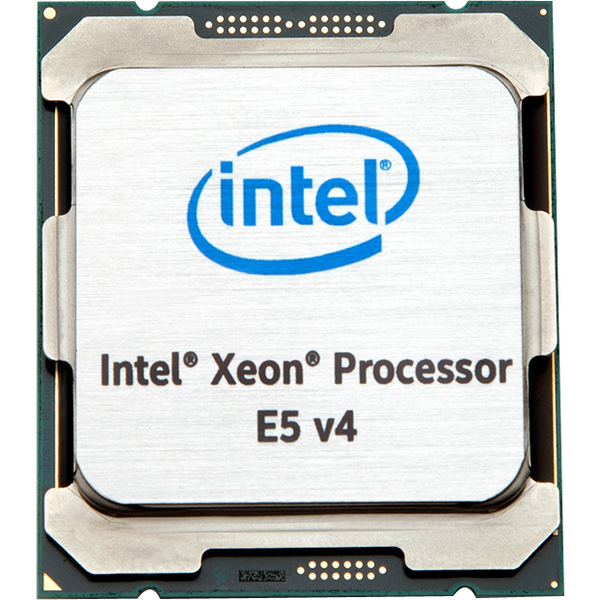

LENOVO Intel Xeon Processor E5-2697a V4 16c 01GT187

LENOVO Intel Xeon Processor E5-2697a V4 16c 01GT187

SKU : 01GT187
Brand : Lenovo
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Intel Xeon processor 01GT187, Cores 16 Threads 32, Clock Speed 2.60 GHz, L3 Cache Size 40 MB, Front Side Bus / QuickPath Interconnect 9.60 GT/s QPI, Thermal Power 145 Watts, CPU Socket Type LGA 2011-3.   The Intel® Xeon® processor E5-2697A product family is at the heart of a flexible and efficient data center that meets your diverse needs. These engineering marvels are designed to deliver the best combination of performance.
Ask a question about this product
$7,158.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Lenovo | Model # 01GT187



The Intel® Xeon® processor E5-2697A product family is at the heart of a flexible and efficient data center that meets your diverse needs. These engineering marvels are designed to deliver the best combination of performance.



Features:

  • The Intel® Xeon® 01GT187 processor E5-2697A product family - versatile processors at the heart of today's data center
  • Built-in capabilities, and cost-effectiveness
  • From virtualization and cloud computing to design automation or real-time financial transactions
  • You'll be delighted by better than ever 01GT187 performance and energy efficiency
  • I/O latency is dramatically reduced with Intel® Integrated
  • Which helps you to eliminate data bottlenecks, streamline your operations, and increase your agility



Overview:

  • Processor Core: Hexadeca-core (16 Core)
  • Clock Speed: 2.60 GHz
  • Overclocking Speed: 3.60 GHz
  • QuickPath Interconnect: 9.60 GT/s
  • L2 Cache: 4 MB
  • L3 Cache: 40 MB





Manufacturer Warranty: 01 Years Limited Warranty

Technical Specifications

General

Series/Family
Intel Xeon Processor E5 v4 Family
Supported Socket The socket is the component that provides the mechanical and electrical connections between the processor and motherboard.
LGA2011-3
Total Cores Cores is a hardware term that describes the number of independent central processing units in a single computing component (die or chip).
16
No. of Performance-cores
N/A
No. of Efficient-cores
N/A
Total Threads Threads are the virtual components, which divides the physical core of a CPU into virtual multiple cores.
32
Max Turbo/Boost Clock Max Turbo/Boost Clock Frequency is the maximum single-core frequency at which the processor is capable of operating.
3.60GHz
Base Clock
2.60GHz
Cache CPU Cache is an area of fast memory located on the processor. Cache refers to the architecture that allows all cores to dynamically share access to the last level cache.
L3: 40MB
Default TDP
145W
Lithography Lithography refers to the semiconductor technology used to manufacture an integrated circuit, and is reported in nanometer (nm), indicative of the size of features built on the semiconductor.
14nm
Segment
Server
Lenovo System x3550 M5

Connectivity

PCI Express Version Peripheral Component Interconnect Express (or PCIe) is a high-speed serial computer expansion bus standard for attaching hardware devices to a computer. The different PCI Express versions support different data rates.
3.0
Memory Types
DDR4 up to 1600/1866/2133/2400 MHz

Additional Info

Integrated Graphics Integrated Graphics indicates graphics processing circuitry integrated into the processor, providing the graphics, compute, media, and display capabilities.
No
Supported Chipset
C612
Code Name
Broadwell
