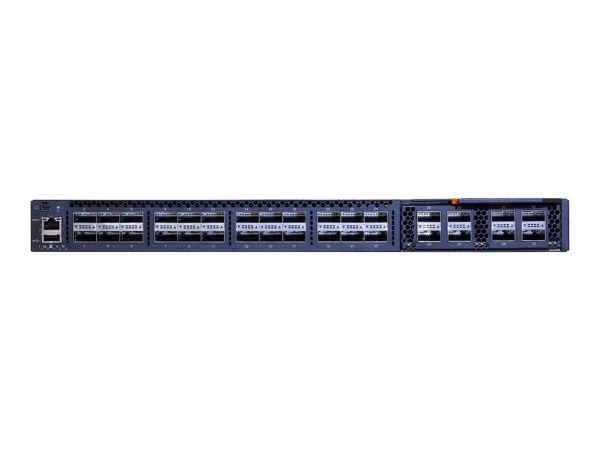

LENOVO Rackswitch G8332 (front To 7159BFX

SKU : 7159BFX
Brand : Lenovo
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
LENOVO Rackswitch G8332 front To 7159BFX, Port 32 x 40 Gigabit QSFP+, MAC Address 128K entries, Jumbo Frame 9216 bytes, Interface 32 x 40Gbit LAN QSFP+, 1 x management (Gigabit LAN) RJ-45, 1 x management (mini-USB), 1 x USB, Voltage AC 120/230 V (50/60 Hz).   The Lenovo RackSwitch G8332 provides low latency, lossless performance and a feature-rich design with key virtualization features, such as Converged Enhanced Ethernet (CEE)/Data Center Bridging (DCB), high availability.
Ask a question about this product
$51,981.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Lenovo | Model # 7159BFX



The Lenovo RackSwitch G8332 provides low latency, lossless performance and a feature-rich design with key virtualization features, such as Converged Enhanced Ethernet (CEE)/Data Center Bridging (DCB), high availability, and enterprise class Layer 2 and Layer 3 functions. The RackSwitch G8332 also delivers excellent cost savings as you consider acquisition costs, energy costs, operational expenses, and ease of use and management for a 40 Gbps class switch. The RackSwitch G8332 has 32 QSFP+ ports and is suitable for clients who use 10 Gigabit Ethernet or 40 Gigabit Ethernet connectivity (or both).



Features:

  • The Lenovo 7159BFX RackSwitch G8332 is among industry leaders. This low latency and the 2.56 Tbps throughput makes
  • The RackSwitch G8332 an ideal offering for latency-sensitive applications
  • As high-performance computing, financial applications, hosting environments, and cloud designs in Enterprise, Web 2.0, and virtual machine (VM) Centric data centers
  • In addition, the G8332 supports VMready with NMotion, which enables
  • The network to be virtual machine (VM) aware, and provides the capability
  • To have a virtualization environment that is simpler and less expensive with exceptional performance.



Overview:

  • Device Type: Switch - 32 ports - L3 - managed
  • Enclosure Type: Rack-mountable 1U
  • Subtype: 40 Gigabit Ethernet
  • Ports: 32 x 40 Gigabit QSFP+
  • Performance: Throughput: 2.56 Tbps



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Device Type Switch - 32 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Subtype 40 Gigabit Ethernet
Ports 32 x 40 Gigabit QSFP+
Performance Throughput: 2.56 Tbps
Capacity IGMP groups: 3000 | IP router interfaces: 126 | MSTP instances: 32 | Virtual interfaces (VLANs): 4095 | Maximum IPv4 with ACL applied: 256 | IPv4 routes (static): 128 | Maximum IPv6 with ACL applied: 128 | Maximum number of FCoE sessions: 2048
MAC Address Table Size 128K entries
Jumbo Frame Support 9216 bytes
Fibre Channel FC-BB-5
Routing Protocol RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, policy-based routing (PBR)
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Authentication Method RADIUS, TACACS+, LDAP
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg
Interfaces 32 x 40Gbit LAN QSFP+ | 1 x management (Gigabit LAN) RJ-45 | 1 x management (mini-USB) | 1 x USB
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V (50/60 Hz)
Features Front-to-rear air?ow
Rack Mounting Kit Included
Width 17.2 in
Depth 19.8 in
Height 1.7 in
Weight 25.35 lbs
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
