| General Specs :- |
|
| Part no. |
50M0027 |
| Print Technology |
Colour Laser Printer |
| Function |
Colour Printing
Trusted Platform Module (TPM) |
| Workgroup Size |
Medium Workgroup |
| Display |
2.8 inch (7.2 cm) Colour touch screen |
| Media Sizes Supported |
A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope |
| Included Paper Handling |
170-Sheet Output Bin, Integrated Duplex, Single sheet multipurpose feeder, 250-Sheet Tray |
| Standard Ports |
Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear USB 2.0 Specification Hi-Speed Certified port (Type A), Internal MarkNet N8370 802.11b/g/n/a Wireless, NFC, USB 2.0 Specification Hi-Speed Certified (Type B) |
| Size (mm - H x W x D) |
318.30 x 455 x 422.50 mm |
| Weight |
20.55 kg |
| Printing :- |
|
| Print Speed |
Up to:
Black: 33 ppm (A4)
Colour: 33 ppm (A4) |
| Print Speed Duplex |
Up to:
Black: 17 spm (A4)
Colour: 17 spm (A4) |
| Time to First Page |
as fast as:
Black: 7.1 seconds
Colour: 7.6 seconds |
| Print Resolution |
Black: 1200 x 1200 dpi, 4800 Colour Quality
Colour: 4800 Colour Quality, 1200 x 1200 dpi |
| Duplex |
2-sided:
Integrated Duplex |
| Printable Area |
metric: 4.2 mm of the top, bottom, right and left edges (within) |
| Paper Handling :- |
|
| Media Types Supported |
Vinyl Labels, Paper Labels, Card Stock, Plain Paper, Envelopes, Refer to the Card Stock & Label Guide. |
| Number of Paper Inputs |
Standard: 2
Maximum: 6 |
| Paper Input Capacity |
Standard: 251 pages 75 gsm bond
Maximum: 2001 pages 75 gsm bond
251 pages 75 gsm bond |
| Paper Output Capacity |
Up to:
Standard: 170 pages 75 gsm bond
Maximum: 170 pages 75 gsm bond |
| Paper Weight Range Supported |
gsm:
60-216 gsm (Standard Tray)
60-176 gsm (Multipurpose Feeder) |
| Optional Paper Handling |
650-Sheet Duo Tray, 550-Sheet Tray |
| Recommended Monthly Page Volume |
1,500 - 10,000 pages |
| Maximum Monthly Duty Cycle |
Up to:
100,000 pages per month |
| Cartridges & Imaging :- |
|
| Laser Cartridge Yields |
up to:
15,800-page Black Cartridge
8,800-page Colour (CMY) Cartridges |
| Cartridge(s) Shipping with Product |
3,000-page Black Return Program Toner Cartridge, 2,000-page Colour (CMY) Return Program Toner Cartridges |
| Replacement Cartridges |
Product functions only with replacement cartridges designed for use in a specific geographical region. See www.lexmark.com/regions for more details. |
| Hardware :- |
|
| Processor Speed |
Dual Core, 1 GHz |
| Memory |
Standard: 1024 MB
Maximum: 1024 MB |
| Hard Disk |
Intelligent Storage Drive available; Magnetic Hard Disk available |
| Printer Languages |
Standard:
PCL 5, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image |
| Fonts and Symbol Sets |
2 PCL 6 bitmap fonts, 163 scalable PostScript fonts, 94 scalable PCL 6 fonts, 5 PPDS bitmap fonts, 39 scalable PPDS fonts |
| Touch Screen Display |
Yes |
| Connectivity :- |
|
| Wireless |
Yes |
| Network Protocol Support |
IPSEC w/ IPv4, IPSEC w/ IPv6, IPv6, IPv4, ICMP, TCP, IGMP, UDP |
| Network Security |
SSL Cipher Configuration, Certificate Management, TCP Restricted Server List, IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown |
| Supported Operating Systems :- |
|
| Microsoft Windows Operating Systems Supported |
Windows Server 2008 x64 running Terminal Services, Windows 11, Windows Server 2008 x64, Windows Server 2008 running Terminal Services, Windows Server 2022, Windows Server 2008, Windows 8 x64, Windows Server 2012, Windows Server 2003 x64, Windows Server 2003, Windows Server 2012 R2, Windows Server 2003 x64 running Terminal Services, Windows Server 2003 running Terminal Services, Windows 10, Windows 8.1, Windows Server 2008 R2 running Terminal Services, Windows 8, Windows 2000 Server running Terminal Services, Windows Server 2008 R2, Windows 7 x64, Windows Server 2016, Windows XP x64, Windows Me, Windows XP, Windows Vista x64, Windows 2000, Windows Server 2019, Windows NT (4.00/4.00 Server), Windows Vista, Windows 98 2nd Edition, Windows 7 |
| Apple Operating Systems Supported |
Support is provided through AirPrint and AirScan only |
| Android Operating System Support |
Support is provided through Mopria Print Service and Mopria Scan. |
| Linux Operating Systems Supported |
OpenSUSE 15.1, Red Hat Linux 8.3, Debian 9.4, Red Hat Linux 7.9, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 12 SP5, Fedora 33, Fedora 32, Debian 10, Ubuntu 20.04, Ubuntu 18.04 LTS, OpenSUSE 15.2 |
| Citrix MetaFrame |
Microsoft Windows Server 2003 x64 running Terminal Services with Citrix Presentation Server 4.0 x64, 4.5 x64, Microsoft Windows 2000 Server running Terminal Services with Citrix Presentation Server 3.0, 4.0, Microsoft Windows Server 2003 running Terminal Services with Citrix Presentation Server 3.0, 4.0, 4.5, Microsoft Windows Server 2008 R2 Standard Edition running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2003 and 2003 X64 Edition with Citrix XenApp 5.0, Microsoft Windows Server 2008 R2 Enterprise Edition running Citrix XenApp 6.0, 6.5, Microsoft Windows 2000 Server running Terminal Services with Citrix MetaFrame Presentation Server 4.0, Microsoft Windows Server 2012 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Essentials running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2012 Foundation running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2008 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2008 and 2008 X64 Edition with Citrix XenApp 5.0, Microsoft Windows Server 2012 Standard running Citrix XenApp 6.0, 6.5 |
| Novell Operating Systems Supported |
Novell Open Enterprise Server 2 (SP3) on SuSE Linux Enterprise Server 10 SP4 (x86 and x64) 3, Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell NetWare 6.5 Open Enterprise Server, Novell Open Enterprise Server 15 (SP1) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 12 SP1 (x86 and x64) |
| Other Operating Systems Supported |
Virtually any platform supporting TCP/IP |
| Electrical & Operation :- |
|
| ENERGY STAR |
Yes |
| ENERGY STAR Typical Electricity Consumption |
TEC:
0.46 kilowatt-hours per week |
| Noise Level |
Operating:
14 dBA (Idle)
51 dBA (Print) |
| Duplex Print Noise Level |
Operating:
51 dBA |
| Average Power |
0.2 watts (Hibernate Mode)
1 watts (Sleep Mode)
20.8 watts (Ready Mode)
514 watts (Printing) |
| Specified Operating Environment |
Altitude: 0 - 2900 metres
Humidity: 15 to 80% Relative Humidity
Temperature: 10 to 32.2°C (50 to 90°F) |
| Product Certifications |
ENERGY STAR, Blue Angel RAL-UZ 219, ICES-003 Class B, BSMI Class B, VCCI Class B, US FDA, UL 60950-1, FCC Class B, cUL CAN/CSA-C22.2 60950-1, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC (EN 62368-1, EN 62311, CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN 61000-3, EN 55022 Class B, EN 55035, UL), EFTA (CE), KCC, CCC, CECP, CEL, UL-AR, KC mark, UL GS mark, UCRF, EC 1275, Mopria Certified |
| In the Box |
Up to 2,000*-page cyan, magenta, yellow toner cartridges.
Up to 150,000** pages black and colour return programme imaging kit.
Power Cable(s) - (Country Dependent)
Warranty Information (Country Dependent)

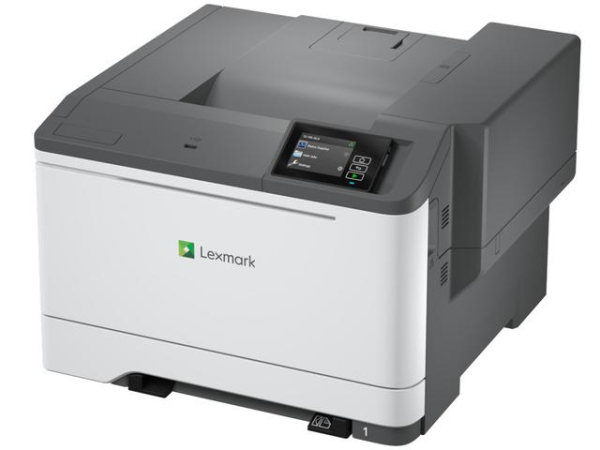

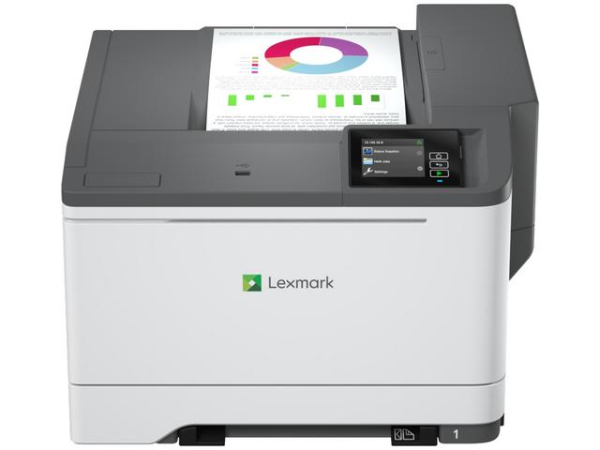

Lexmark CS531dw colour laser printer.
Software and Documentation CD
Up to 3,000*-page black toner cartridge.
Wordless Setup Sheet (Network and Local Attachment)
QR Code Setup Sheet
Safety Information Sheet
Safety Stability Sheet |
