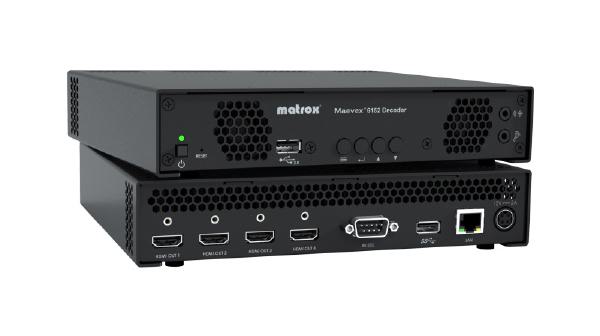

Matrox Maevex 6152 Quad 4K HDMI Decoder

Name: Matrox Maevex 6152 Quad 4K HDMI Decoder
Brand: Matrox
SKU: MVX-D6152-4
Price: 5626 AUD
Availability: InStock

SKU : MVX-D6152-4

Brand : Matrox

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Video codec: H.264/MPEG-4 Part 10 (AVC), Audio codec: MPEG-4 AAC-LC / HEv1 / HEv2, Encoding level: Up to 5.2, Bitrate range (per stream): 50 Kbps to 120 Mbps, Audio sample frequency: 32 kHz, 44.1 kHz, and 48 kHz, Warranty: 02 Years, MVX-D6152-4.

Ask a question about this product

$5,626.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Matrox | Model # MVX-D6152-4

The Maevex 6152 quad decoder is a real-time H.264 video decoder capable of decoding up to four 4K live MPEG2-TS, RTSP, and SRT streams at low latency. When paired with Maevex 6100 Series encoders, Maevex 6152 can achieve exceptionally low latency at low network bitrate consumption. It also supports reliable, encrypted transmission over internet for the secure streaming of content. The complimentary Maevex SDK enables you to build new applications or integrate the functionalities of PowerStream Plus into existing applications.

Overview:

Video codec: H.264/MPEG-4 Part 10 (AVC)
Audio codec: MPEG-4 AAC-LC / HEv1 / HEv2
Encoding level: Up to 5.2
Bitrate range (per stream): 50 Kbps to 120 Mbps
Audio sample frequency: 32 kHz, 44.1 kHz, and 48 kHz

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Decoding :-
Video codec	H.264/MPEG-4 Part 10 (AVC)
Audio codec	MPEG-4 AAC-LC / HEv1 / HEv2
Profile	Baseline (BP), main (MP), high (HiP), high 10 (Hi10P), high 4:2:2 (Hi422P), high 4:4:4 predictive profile separate plane (Hi444PP), CAVLC 4:4:4 intra (44)
Encoding level	Up to 5.2
Bitrate range (per stream)	50 Kbps to 120 Mbps
Audio sample frequency	32 kHz, 44.1 kHz, and 48 kHz
Audio bitrates	Up to 576 Kbps (AAC-LC), 288 Kbps (AAC-HEv1), 144 Kbps (AAC-HEv2)
Chroma Sub-Sampling	4:0:0 (8- and 10-bit), 4:2:0 (8- and 10-bit), 4:2:2 (8-bit), 4:4:4 (8-bit)
Network :-
Streaming protocols	RTSP (TCP), RTCP & RTP (UDP) – all required SRT over UDP MPEG2.TS over UDP
Command & control	HTTPS over TCP, UPnP (discovery)
Network standards	- 100/1000 base-T Ethernet - IPv4, IPv6, DHCP (default) and static IP address support - Unicast, multicast
Performance	4x HDMI (type A) output with digital LPCM two-channel stereo audio and HDCP support 1x RJ45 Ethernet port with status LED indicators 1x 3.5mm line-out RS-232 1x USB 2.0 (front) & 1x USB 3.0 (back)* 1x Mic-in*
Software :-
PowerStream Plus (free download)6	Compatible with Maevex 5100 Series and Maevex 6100 Series Network discovery Multi-encoding and recording management Multi-protocol management Frame rate management Resolution control Administrator and user credential management Scaling management SNMP support
PowerStream Plus SDK for Windows and Linux	PowerStream Plus SDK is available on .NET framework (4.5.1 or higher), standalone library for Windows and Mono (5.2 or higher) for Linux
REST API6	Code developed with the Maevex 6100 Series REST API addresses the 6100 Series encoders using HTTPS and follows the principles of Representational State Transfer (REST) using simple HTTPS payloads in JavaScript Object Notation (JSON) format
Supported Operating Systems	- Microsoft® Windows® 10 (64-bit) - Windows Server® 2016 - Windows 7 (32-bit, 64-bit) - Windows Server 2008 R2 - Windows Server 2019
On-Device Button Control :-
Button controls	Menu, enter, scroll forward, scroll back Choose output, content, and zoom to full screen
Hardware :-
Noise emission	~25 dB at full stream/record capacity
Power supply	100-240 VAC in, 12 VDC out, 60W (45W max consumption), DIN4 locking connector
Power cords included	US, EU, UK, Aus/NZ
Dimensions	8.53 x 7.52 x 1.68 in (21.7 x 19.1 x 4.3 cm)
Rack mountable	1U, ½ R
Part number	MVX-D6152-4
Accessories :-
Accessories	Rackmount Kit (RMK-19TR-A)
