Motorola UHF Bluetooth RFID Sled Reader Gun

SKU : RFD8500-1000100-US
Brand : Motorola
This product is either discontinued or we cannot get that from suppliers.
Power: PowerPrecision Li-Ion batteries, 4410 mAh, Configurations: RFID only or RFID with SE4710 Imager, Notification: LED and audible tone, User Input: Trigger, 3 push button switch, Standards Supported: EPC Class 1 Gen 2; EPC Gen2 V2, RFID Engine: Zebra Proprietary Radio Technology, Fastest Read Rate: 600+ tags/sec.
Ask a question about this product
Call Us

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Motorola | Model # RFD8500-1000100-US

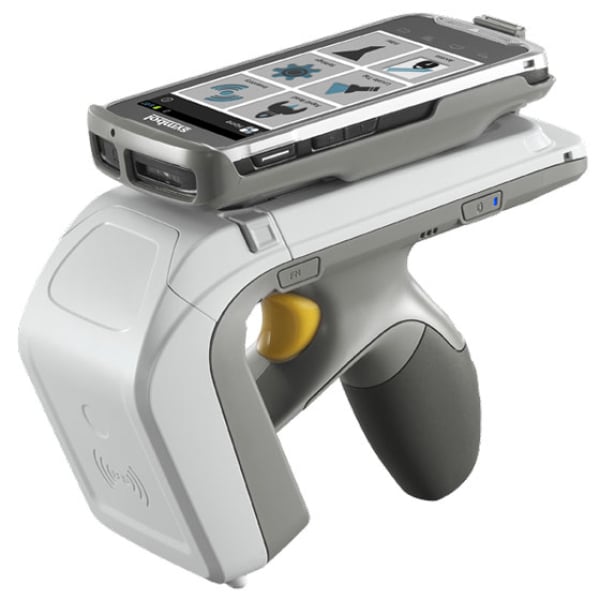

The Zebra RFD8500 UHF Bluetooth RFID Sled allows users with select Zebra and compatible third-party mobile devices, tablets and smart phones to enable enterprise-class UHF RFID scanning technology into those devices, whenever and wherever you need it. Simple, easy and cost-effective, the RFD8500 is a great addition to any industry looking to add RFID capability to their repertoire.



Features:

  • Leverage your mobile computing strategy and add world-class data collection capability. Just twist to lock onto or remove the RFD8500 from any Zebra or third-party mobile computer via a Quad Lock or Zebra custom-tailored adaptor.
  • Enable a real-time wireless connection to your mobile or backend systems via Bluetooth 2.1 or later. If a wireless connection is not available, batch mode enables the collection of up to 500 bar codes and/or 42,000 RFID tags.
  • Get maximum read/write speeds and coverage required to maximise workforce efficiency. And, our unique power-optimising algorithm delivers the superior battery cycle times that ensure full-shift power, even with intensive usage.


Overview:

  • Power: PowerPrecision Li-Ion batteries, 4410 mAh
  • Configurations: RFID only or RFID with SE4710 Imager
  • Notification: LED and audible tone
  • User Input: Trigger, 3 push button switch
  • Standards Supported: EPC Class 1 Gen 2; EPC Gen2 V2
  • RFID Engine: Zebra Proprietary Radio Technology
  • Fastest Read Rate: 600+ tags/sec



Manufacturer Warranty: 02 Year Limited Warranty

Technical Specifications

Dimensions 5.1 in. H x 3.1 in. W x in. 7.3 in.
Weight Imager Version: 15.3 oz./~435 grams
Non-Imager version: 15.3 oz./~430 grams
Power PowerPrecision Li-Ion batteries, 4410 mAh
Configurations RFID only or RFID with SE4710 Imager
Notification LED and audible tone
User Input Trigger, 3 push button switch
Standards Supported EPC Class 1 Gen 2; EPC Gen2 V2
RFID Engine Zebra Proprietary Radio Technology
Fastest Read Rate 600+ tags/sec
Nominal Read 20+ ft./ 6+ m
Frequency Range/RF Output US: 902-928MHz; 4 - 34 dBm (EIRP)
EU: 865-868MHz; 4 - 34 dBm (EIRP)
Japan: 916-921Mhz (w LBT), 4 - 34 dBm (EIRP)
Japan: 916-923Mhz, 4- 27 dBm (EIRP)
Batch Mode Store 40,000+ RFID Tags, 500 barcode
Drop Specification Multiple 4 ft./1.2 m drops to concrete (0° to 40° C)
Tumble Specification 1000 drops (500 tumbles, 1.6 ft./0.5 m) at room temperature
Operating Temp. -10°C to 40°C / 14°F to 104°F
Storage Temp -40°C to 70°C / -40°F to 158°F
Charging Temp 0°C to 40°C / 14°F to 104°F
Humidity 5-85% non-condensing
Electrostatic Discharge +/-15kV air discharge
+/-8kV direct discharge
+/-8kVdc indirect discharge
Sealing IP52
Bluetooth Bluetooth Version 2.1
SPP profile
HID Profile
Apple iAP2/Mfi
Bluetooth Class 2
Bluetooth Pairing Secure Simple Pairing ‘just works’ method
Compatible Host Devices (Bluetooth) Devices with Android 4.4 or iOS 8 OS
External Interface MicroUSB Connector and Charging Cradle based charging
Other Accessories Adapter mounts for Enterprise Zebra Mobile Computers; Quad lock adapter for variety of smart phones
EMI/EMC FCC Part 15 Subpart B Class B; ICES 003 Class B
EN 301 489-1; EN 301 489-3; EN 301 489-17;
EN 55022 Class B; EN55024; EN 55032 Class B
Electrical Safety UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1
RF Exposure EU: EN 50364, EN 62479; USA: FCC Part 2
(Section 2.1091), OET Bulletin 65 Supplement C;
Canada: RSS-102
RFID/Bluetooth EU: EN 300 328, FCC Part 15 Subpart C;
Canada: RSS-247
