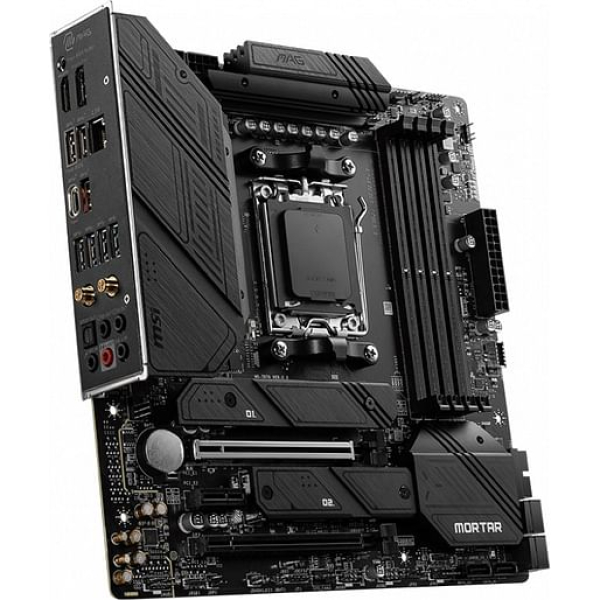

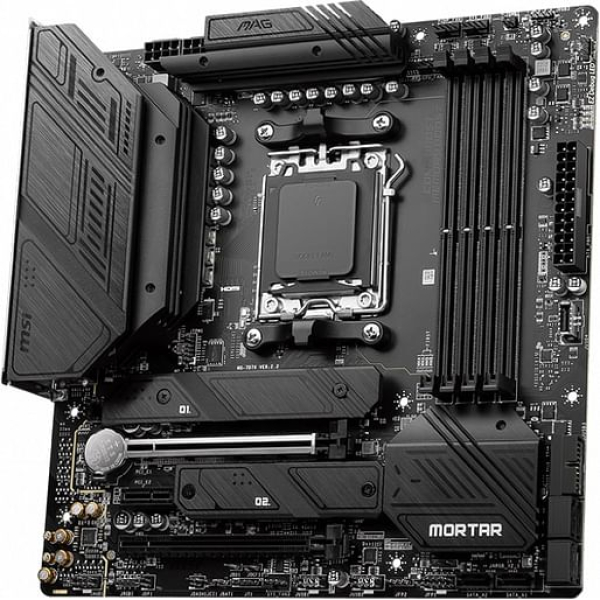

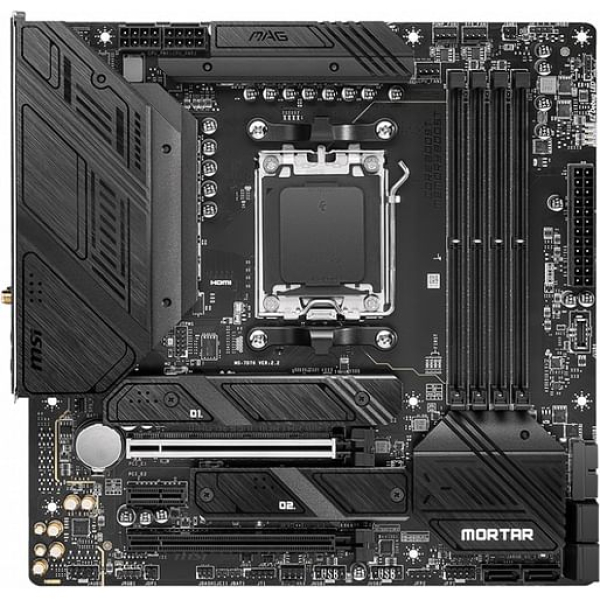

Name: MSI MAG B650M Mortar WiFi Gaming Motherboard
Brand: MSI
SKU: MAG B650M MORTAR WIFI
Price: 301 AUD
Availability: InStock

MSI MAG B650M Mortar WiFi Gaming Motherboard

SKU : MAG B650M MORTAR WIFI

Brand : MSI

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # MSI | Model # MAG B650M MORTAR WIFI

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Features:

Supports AMD Ryzen 7000 Series Desktop Processors
Supports DDR5 Memory, up to 6400+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Overview:

Chipset: AMD B650
LAN: Realtek RTL8125B 2.5Gbps LAN
Operating System: Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension: mATX, 243.84mmx243.84mm

Manufacturer Warranty: 03 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Chipset	AMD B650
Cpu Support	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Onboard Graphics	1x HDM Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Expansion Slot	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G
Raid	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.
USB	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek RTL8125B 2.5Gbps LAN
Wireless / Bluetooth	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**
Audio	Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Led Feature	4x EZ Debug LED

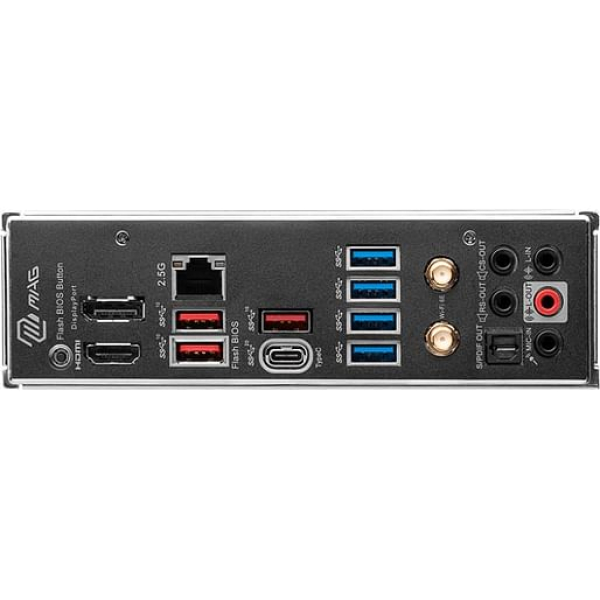

Back Panel Ports	1x Flash BIOS button 1x DisplayPort 1x HDMI port 4x USB 3.2 Gen 1 5Gbps Type-A ports (From ASM1074) 3x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU) 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset) 1x 2.5Gbps LAN (RJ45) port 2x Wi-Fi antenna connectors 5x audio jacks 1x Optical S/PDIF Out connector
Operating System	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension	mATX 243.84mmx243.84mm
Bios Features	1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.5 Multi-language
Software	MSI Center MSI App Player (BlueStacks) CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition
Special Features	Gaming Mode Smart Priority Game Highlights Mystic light Ambient Link Frozr AI Cooling User Scenario True Color Live Update Extended Heatsink Design M.2 Shield Frozr K7 MOSFET thermal pad / Extra Core Boost VRM Power Design PCI-E Steel Armor Pre-installed I/O Shield Audio Boost 5
