MSI MAG PANO M100R Tempered Glass Micro-ATX Case White

SKU : MAG PANO M100R PZ WHITE
Brand : MSI
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Product Name: Mag Pano M100r Pz / White, Case Form Factor: Micro- ATX Tower, Motherboard Form Factor Support: M-ATX(Back-connect supported) / ITX, Warranty: 02 Years Limited, MAG PANO M100R PZ WHITE.
Ask a question about this product
$158.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # MSI | Model # MAG PANO M100R PZ WHITE

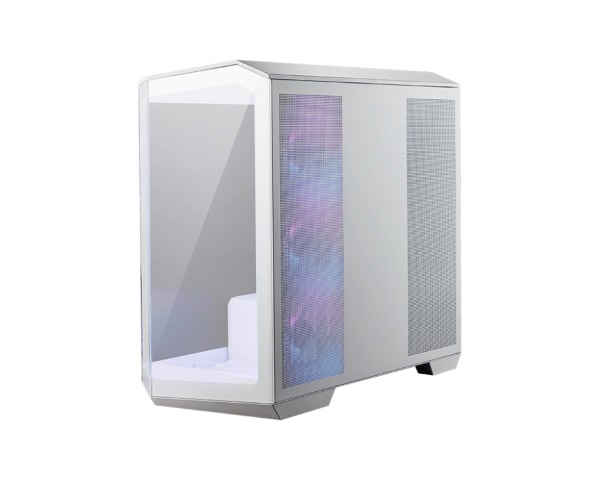

To meet the desire to show the ARGB PC build, the MAG PANO M100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness, supports a back-connect motherboard, and comes with the reverse-blade fan on the side, a 1-to-4 ARGB-PWM control board to let user organize cables easily.



Features:

  • Micro-ATX Back-connect PROJECT ZERO motherboard supported.
  • Supports up to 360 mm AIO liquid cooler on the top.
  • 270-degree panoramic tempered glass.
  • Supports up to 10 x 120 mm system fans.
  • Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
  • The Magnetic Dust Filter at the bottom being easily removed for cleaning.
  • DIY Friendly cables make your DIY process easier and create more possibilities to your system.



Overview:

  • Product Name: Mag Pano M100r Pz / White
  • Case Form Factor: Micro- ATX Tower
  • Motherboard Form Factor Support: M-ATX(Back-connect supported) / ITX



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Product Name Mag Pano M100r Pz / White
Case Form Factor Micro- ATX Tower
Motherboard Form Factor Support M-ATX(Back-connect supported) / ITX
I/O Ports 1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
Drive Mount Support 1 x 2.5”
1 x 2.5”/3.5” combo
(up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
Expansion Slots 5
Maximum Gpu Length 390 mm / 15.35 inches
*Support horizontal installation only.
Maximum Cpu Cooler Height 175 mm / 6.9 inches
Power Supply Support ATX
Maximum Psu Length 200 mm / 7.87 inches
Fan Size Support Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm / 1 x 140 mm
Side: 3 x 120 mm
Bottom: 1 x 120 mm
PSU Shroud: 2 x 120 mm
Pre-installed Fan Size Side: 3 x 120 mm
Rear: 1 x 120 mm
Pre-installed Fan Type Side: 3 x ARGB Fan (Reverse-blade)
Rear: 1 x ARGB Fan
Radiator Size Support Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 / 140 mm
Side: NA
Bottom: NA
Dimensions (Dxwxh) 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches
Net Weight 8.66 kg
Gross Weight 11.29 kg
