Pelican Super V Series Rackmount Case 3U SUPER-V-3U

Manufacture # Pelican | Model # SUPER-V-3U

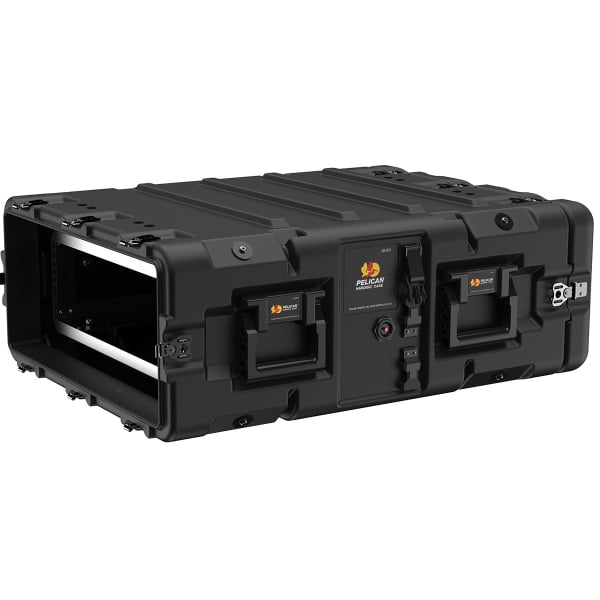

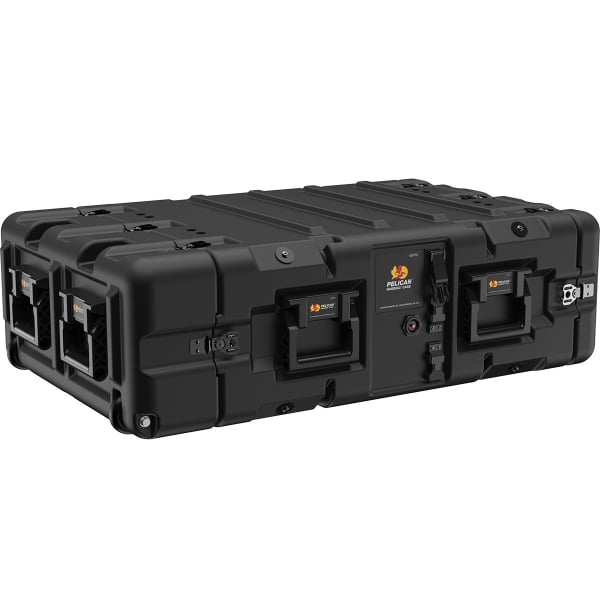

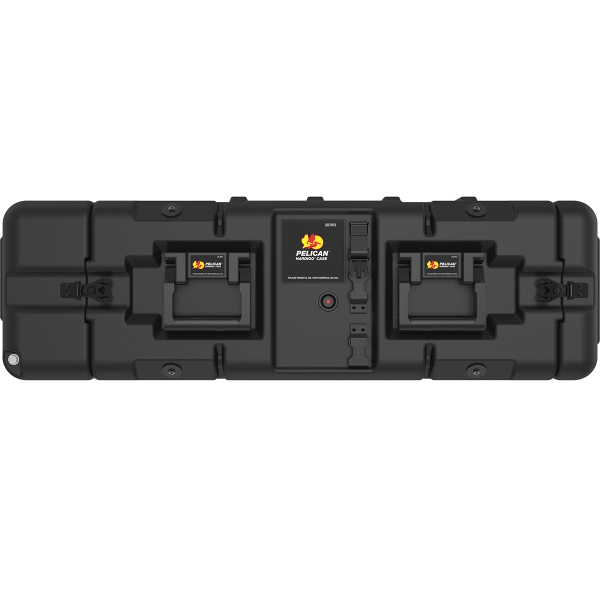

Pelican-Hardigg V-Series Cases are built utilizing a full-boxed 19” steel rack with a industry-standard square hole pattern, so hanging electronics with tab mounts is a snap. These cases also include clip nuts - just attach the clip nut onto a square hole and you’ve got a secure, threaded mount.

Drops and impact are an obvious no-no with electronics, but vibration puts damaging repetitive stress on delicate parts and soldered joints. That’s why you’ll find 8 heavy duty rubber shock mounts to isolate the frame inside the shell. The polymer outer shell absorbs impacts, and the shock mount inside dissipates residual movement. Rack mount cases without shock mounts transfer impact forces directly to the electronics inside.

Features:

• 10 different models, frame heights 4-12U in two depths, 480 and 610mm

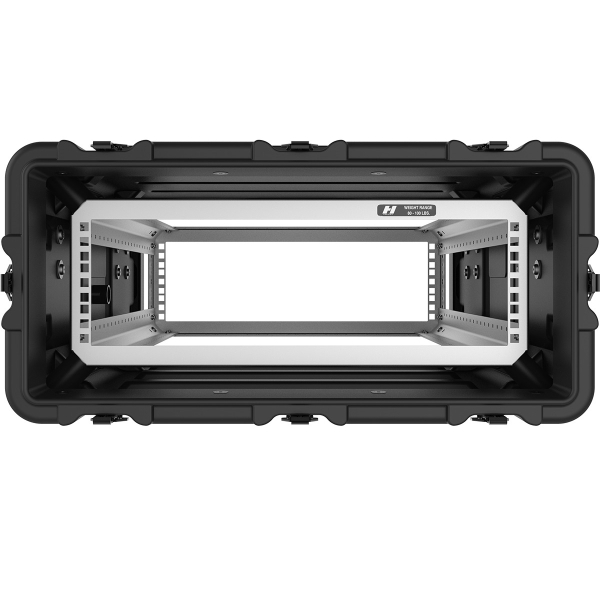

• Fixed square hole frame for universal equipment fit
• 2" Front Lid, 5" Rear Lid
• Lid hangers for lid storage while in use
• Anti-reflective black hardware
• Coupling catches for secure stacking
• Sealed gasket and PRV keeps container watertight and eliminates over pressurization
• Choice of SAE 10-32 or Metric M6 clip nuts for even more flexibility in mounting equipment
• Comfort Grip plastic handles
• Molded in rear edge casters with handles on the lid for ease of movement

Overview:

• Body Material: RotoMolded Polyethylene
• O-Ring Material: Silicone Sponge
• Purge Body Material: Aluminum
• Hardware Material: Stainless Steel (Black Oxide) / RoHs Nickel Black
• Frame Material: Steel (Clear Coated)

Manufacturer Warranty: Lifetime Limited Warranty
