243B1 Technical Specifications :- |
|
Picture/Display :- |
|
LCD panel type |
IPS technology |
Backlight type |
W-LED system |
Panel Size |
23.8 inch / 60.5 cm |
Display Screen Coating |
Anti-Glare, 3H, Haze 25% |
Effective viewing area |
527.04 (H) x 296.46 (V) |
Aspect ratio |
16:9 |
Maximum resolution |
1920 x 1080 @ 75 Hz* |
Pixel Density |
93 PPI |
Response time (typical) |
4 ms (Gray to Gray)* |
Brightness |
250 cd/m² |
Contrast ratio (typical) |
1000:1 |
SmartContrast |
50,000,000:1 |
Pixel pitch |
0.2745 x 0.2745 mm |
Viewing angle |
178º (H) / 178º (V)
@ C/R > 10 |
Flicker-free |
Yes |
Picture enhancement |
SmartImage |
Color gamut (typical) |
NTSC 91%*, sRGB 107%* |
Display colors |
16.7M |
Scanning Frequency |
30 - 85 kHz (H) / 48 - 75 Hz (V) |
sRGB |
Yes |
LowBlue Mode |
Yes |
EasyRead |
Yes |

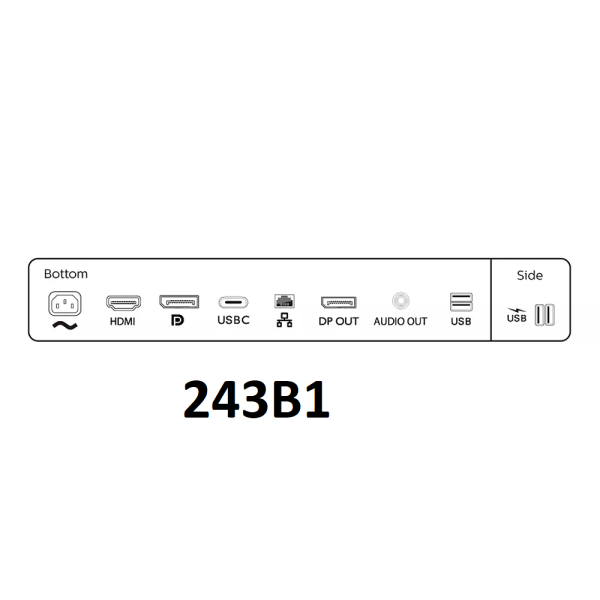

Connectivity :- |
|
Signal Input |
DisplayPort 1.4 x 1, HDMI 1.4 x 1, USB-C 3.2 Gen 2 x 1 (upstream, power delivery up to 90 W) |
HDCP |
HDCP 1.4 (HDMI/DP/USB-C) |
HBR3 |
Yes |
Signal Output |
DisplayPort out* (DP / USB-C) |
USB: |
USB 3.2 Gen 2 x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2) |
Audio (In/Out) |
Audio out |
RJ45 |
Ethernet LAN up to 1G*, Wake On Lan |
Sync Input |
Separate Sync |
USB :- |
|
USB-C |
Reversible plug connector |
Super speed |
Data and Video transfer |
DP |
Built-in Display Port Alt mode |
Power delivery |
USB PD version 3.0 |
USB-C max. power delivery |
Up to 90W (5V/3A; 7V/3A; 9V/3A; 10V/3A; 12V/3A; 15V/3A; 20V/4.5A) |
Convenience :- |
|
Built-in Speakers |
2 W x 2 |
User convenience |
SmartImage
Input
PowerSensor
Menu
Power On/Off |
Control software |
SmartControl |
OSD Languages |
Brazil Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
Other convenience |
Kensington lock
VESA mount (100x100mm) |
Plug & Play Compatibility |
DDC/CI
Mac OS X
sRGB
Windows 10 / 8.1 / 8 / 7 |
Stand :- |
|
Height adjustment |
150 mm |
Pivot |
-/+ 90 degree |
Swivel |
-/+ 180 degree |
Tilt |
-5 ~ 35 degree |
Power :- |
|
ECO mode |
12.6 W (typ.) |
On mode |
15.2 W (typ.) (EnergyStar test method) |
Standby mode |
< 0.5 W (typ.) |
Off mode |
Zero watts with Zero switch |
Power LED indicator |
Operation - White
Standby mode- White (blinking) |
Power supply |
Built-in
100-240VAC, 50-60Hz |
Dimensions :- |
|
Product with stand(max height) |
540 x 501 x 205 mm |
Product without stand (mm) |
540 x 323 x 51 mm |
Weight :- |
|
Product with stand (kg) |
4.98 kg |
Product without stand (kg) |
3.40 kg |
Operating conditions :- |
|
Temperature range (operation) |
0°C to 40°C °C |
Temperature range (storage) |
-20°C to 60°C °C |
Relative humidity |
20%-80 % |
Altitude |
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m) |
MTBF (demonstrated) |
70,000 hrs (excluded backlight) |
Cabinet :- |
|
Front bezel |
Black |
Rear cover |
Black |
Foot |
Black |
Finish |
Texture |
242B1 Technical Specifications :- |
|
Picture/Display :- |
|
LCD panel type |
IPS technology |
Backlight type |
W-LED system |
Panel Size |
23.8 inch / 60.5 cm |
Display Screen Coating |
Anti-Glare, 3H, Haze 25% |
Effective viewing area |
527.04 (H) x 296.46 (V) |
Aspect ratio |
16:9 |
Maximum resolution |
1920 x 1080 @ 75Hz* |
Pixel Density |
93 PPI |
Response time (typical) |
4 ms (Gray to Gray)* |
Brightness |
250 cd/m² |
Contrast ratio (typical) |
1000:1 |
SmartContrast |
50,000,000:1 |
Pixel pitch |
0.2745 x 0.2745 mm |
Viewing angle |
178º (H) / 178º (V)
@ C/R > 10 |
Picture enhancement |
SmartImage |
Color gamut (typical) |
NTSC 91%*, sRGB 107%* |
Display colors |
16.7M |
Scanning Frequency |
30 - 85 kHz (H) / 48 - 75 Hz (V) |
sRGB |
Yes |
Flicker-free |
Yes |
EasyRead |
Yes |
LowBlue Mode |
Yes |
Adaptive sync |
Yes |

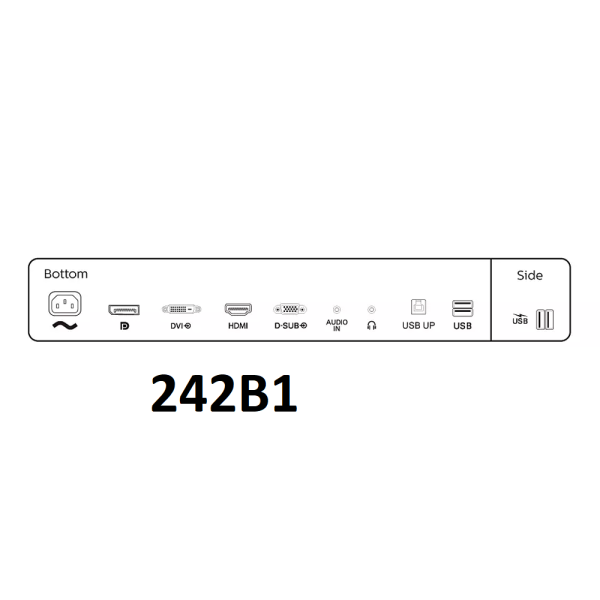

Connectivity :- |
|
Signal Input |
VGA (Analog )
DVI-D (digital, HDCP)
DisplayPort 1.2
HDMI 1.4 x 1 |
HDCP |
HDCP 1.4 (DVI/DP/HDMI) |
Sync Input |
Separate Sync
Sync on Green |
USB: |
USB-B x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2) |
Audio (In/Out) |
PC audio-in
Headphone out |
Convenience :- |
|
Built-in Speakers |
2 W x 2 |
User convenience |
SmartImage
Input
PowerSensor
Menu
Power On/Off |
Control software |
SmartControl |
OSD Languages |
Brazil Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
Other convenience |
Kensington lock
VESA mount (100x100mm) |
Plug & Play Compatibility |
DDC/CI
Mac OS X
sRGB
Windows 11 / 10 / 8.1 / 8 / 7 |
Stand :- |
|
Height adjustment |
150 mm |
Pivot |
-/+ 90 degree |
Swivel |
-/+ 180 degree |
Tilt |
-5 ~ 35 degree |
Power :- |
|
ECO mode |
10.4 W (typ.) |
On mode |
14.5 W (typ.) (EnergyStar test method) |
Standby mode |
0.35 W |
Off mode |
Zero watts with Zero switch |
Power LED indicator |
Operation - White
Standby mode- White (blinking) |
Power supply |
Built-in
100-240VAC, 50-60Hz |
Dimensions :- |
|
Product with stand(max height) |
540 x 501 x 205 mm |
Product without stand (mm) |
540 x 323 x 51 mm |
Weight :- |
|
Product with stand (kg) |
4.57 kg |
Product without stand (kg) |
2.99 kg |
Operating conditions :- |
|
Temperature range (operation) |
0°C to 40 °C |
Temperature range (storage) |
-20°C to 60 °C |
Relative humidity |
20%-80 % |
Altitude |
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m) |
MTBF (demonstrated) |
70,000 hrs (excluded backlight) |
Cabinet :- |
|
Front bezel |
Black |
Rear cover |
Black |
Foot |
Black |
Finish |
Texture |
