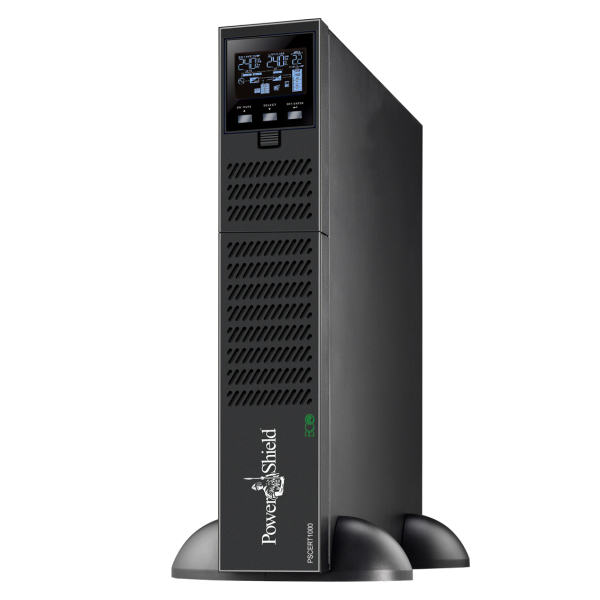

PowerShield Centurion RT 1000VA/900W UPS

SKU : PSCERT1000
Brand : PowerShield
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Capacity: 1000VA/900W, High Line Transfer: 300VAC ± 5 %, High Line Comeback: 290VAC ± 5 %, Frequency: Range 40Hz–70Hz, Phase: Single phase with ground, 02 Years Limited Warranty, PSCERT1000
Ask a question about this product
$1,206.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # PowerShield | Model # PSCERT1000



The Centurion RT features true online double conversion. As our highest single phase power density UPS, this sophisticated range will provide the most comprehensive protection for mission critical devices such as sensitive networks, computers, servers, telecom applications, as well as industrial applications. Meticulously developed by PowerShield engineers to be a world leading technology UPS, the Centurion RT addresses absolutely all requirements and features as has been demanded by the sophisticated Australian power consumer and hence stands in a class of its own, as a world leading UPS technology.



Features:

  • Offering the best surge protection in its class to protect against damaging surges.
  • The Centurion RT is high-density UPS with output power factor (PF = 0.9) to provide higher performance and efficiency to critical applications.
  • HID can be used for simple management with Windows, Apple, Linux and NAS devices and a large variety of industrial controllers that support HID. HID can also be used for safe and orderly shutdown.
  • The free, downloadable NetGuard software provides complete power monitoring. Parameters such as input/output voltage, battery capacity and load level are easily viewed. It also ensures a safe and orderly shutdown in the event of a prolonged outage.



Overview:

  • Capacity: 1000VA/900W
  • High Line Transfer: 300VAC ± 5 %
  • High Line Comeback: 290VAC ± 5 %
  • Frequency: Range 40Hz–70Hz
  • Phase: Single phase with ground



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Capacity 1000VA/900W
Topology True online double-conversion, Pure Sine Wave
Input Voltage Range:-
Low Line Transfer 160VAC / 140VAC / 120 / 110VAC ± 5 % (based on load percentage 100%–80% / 80%–70% / 70%–60% / 60%–0)
Low Line Comeback 175VAC / 155VAC / 135VAC / 125VAC ± 5 %
High Line Transfer 300VAC ± 5 %
High Line Comeback 290VAC ± 5 %
Frequency Range 40Hz–70Hz
Phase Single phase with ground
Power Factor Correction 0.99 @ nominal voltage (100% load)
Output :-
Output Power Factor 0.9
Output Voltage (AC Mode) 240VAC (Selectable 200/208/220/230/240VAC)
Voltage Regulation (Batt. Mode) ± 1%
Frequency Range (Batt. Mode) 50Hz or 60Hz ±1Hz
Current Crest Ratio 3:1 (max.)
AC Mode to Batt. Mode Zero
Inverter to Bypass 4ms (Typical)
Waveform (Batt. Mode) Pure Sine Wave
IEC Outlets 10A, C13 x 5
Australian Sockets 3
Efficiency :-
ECO Mode (Advanced) 96%
Battery Mode 86%
Battery :-
Battery Number (12 V*9AH) x 3
Typical Recharge Time 4 hours recover to 90% capacity (for standard model only)
Charging Current (max.) Standard Models – 1.5Amp. Long Run Models – 1Amp / 2Amp / 4Amp / 6Amp selectable (factory default is 6Amp)
Protection :-
Full Protection Overload, discharge, thermal, short circuit and overcharge protection
Surge Protection 984 Joules / 22000 Amps
Communications And Management :-
Interface USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry con-tact
Software PowerShield NetGuard software – supports Windows, Linux, Unix and Mac based operating systems
HID Supports Windows, Apple, Linux, NAS and various industrial controllers
LCD Display/Alarm UPS Status, Load & Battery Level, Input/Output Voltage, Batt. Time Remaining and Fault Indicators
Audible Alarm Battery Mode, Bypass Mode, Low Battery (Batt. Mode), Fault, Overload
Operating Environment :-
Temperature 0–40°C
Humidity 20–90% (RH Non-condensing)
Noise Level < 50dBA @ 1 Meter
Physical :-
Dimensions (D x W x H) mm 380 x 438 x 88
Weight 15.2 Kg
