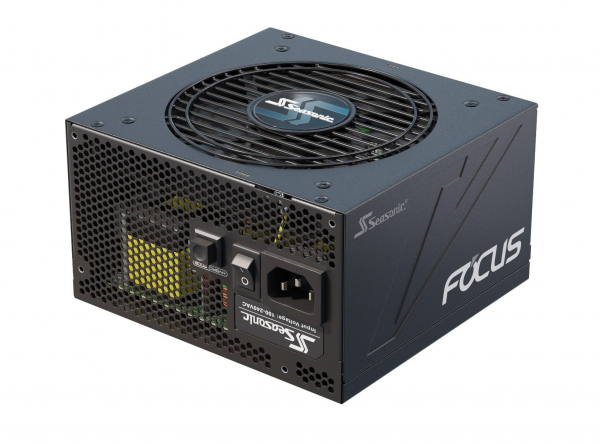

Seasonic Focus GX-1000 1000W ATX 12V 80 PLUS Gold Fully Modular PSU PSUSEAFOCUSGX1000

Manufacture # Seasonic | Model # PSUSEAFOCUSGX1000

The newly upgraded FOCUS PX and GX series are the successors to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements to the popular series such as removing the inline capacitors on the supplied cables. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative.

Features:

• The FOCUS GX achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
• Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
• The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
• Reduced noise without increase in temperature.
• Extended fan life due to the reduced number of fan rotations.
• Optimized heat dissipation at all times.
• Unsurpassed silent performance in Fanless Mode.

Overview:

• Continuous Power: 1000W
• AC Input: 100V - 240V
• Certification: 80 PLUS Gold
• Form Factor: Intel ATX 12 V
• Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
• Fan Size: 120 mm
• Fan Control: S3FC - Fanless until 30 % load
• Modularity: Fully Modular

Manufacturer Warranty: 10 Years Limited Warranty
