Camera |
|
Image Sensor |
1/2.5 type ExmorR CMOS |
Image Sensor (Number of Effective Pixels) |
Approx. 8.5M pixels |
Signal System |
2160 (*1)/29.97p, 25p, 23.98p
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p |
4K Capability |
Yes (requires 4K optional license) |
Minimum Illumination (50IRE) |
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF) |
Horizontal Resolution |
1000 TV lines or higher (Center) (FHD) |
Gain |
Auto/Manual (0 to +48 dB) (High Sensitivity On) |
Shutter Speed |
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50Hz system) |
Exposure Control |
Auto, Manual, Priority AE (Shutter, Iris) |
White Balance |
Auto1, Auto2, One Push
WB, Indoor, Outdoor, Manual |
Zoom capability |
12x |
Focusing System |
Auto/Manual |
Horizontal Viewing Angle |
Approx. 70° (Wide) |
Focal Length |
f=4.4mm (Wide) to 52.8mm (Tele)
F2.0 to F3.7 |
Minimum Object Distance |
80 mm (Wide)~
400 mm (Tele) |
Pan/Tilt Angle |
Pan: ±170°
Tilt: +90°/-20° |
Pan/Tilt Speed (Max.) |
Pan: 300°/s
Tilt: 126°/s |
Pan/Tilt Speed |
Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s |
Pan/Tilt Speed (Slow) |
Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s |
Pan/Tilt Slow Mode |
Yes |
Pan/Tilt Operation Noise |
NC30 or less *
* Sony measurement conditions |
Preset Position |
256 (CGI)
100 (VISCA) |
Picture Freeze Preset |
Yes |
PTZ Motion Sync |
Yes |
Network :- |
|
IP Video Resolution |
3840x2160 (*1), 1920x1080, 1280x720, 720x576, 720x480, 640x360 |
Compression Format |
H.264: High, Main, Baseline Profile
H.265: Main Profile |
Maximum Frame Rate |
H.264: 60fps
H.265: 60fps |
Bitrate Compression Mode |
CBR/VBR (selectable) |
Range of Bitrate Setting |
512Kbps~50 Mbps |
Multi Streaming Capability |
3 |
Maximum Number of Clients |
5 |
Protocols |
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP |
NDI®|HX Capability |
Yes (requires a license sold separately) |
Camera Features :- |
|
Auto ICR (Auto mode of IR Cut filter Removal) |
Yes |
Day/Night |
Yes |
Visibility Enhancer |
Yes |
Image Stabilization |
Yes |
Image Flip |
Yes |
Picture Setting File |
Yes |
Flicker Cancel |
On/Off |
Hide OSD Menu |
On/Off |
Standby Mode |
Yes |
Remote Standby |
Yes |
Web UI :- |
|
Ver Up |
Yes |
Audio :- |
|
Channel |
2ch |
Audio Codec |
AAC LC 128 kbps/ST (IP)
AAC LC 256 kbps/ST (IP) |
Setting Option |
Setting OptionAuto Level Control (ALC): On/Off
Equalizer: Off, Low cut, Voice enhancement
Input selection: Microphone/Line
Mic volume: -10~+10 (21 steps)
Audio codec |
Embedded Audio in Baseband Video |
Yes (3G-SDI, HDMI) |
Embedded Audio in IP Streaming |
Yes |

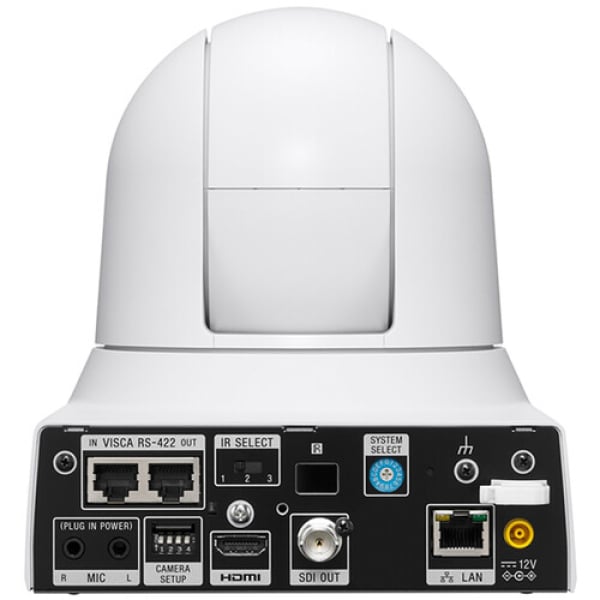

Interface :- |
|
4K Video Output |
HDMI x1 and IP (streaming) x1 |
HD Video Output |
3G-SDI x1, HDMI x1, IP (streaming) x1 |
Remote Video Format Switching |
Yes |
HDMI Color Space |
YCbCr, 4:2:2 8 bit
RGB, 4:4:4 8 bit |
Camera Control Interface |
VISCA RS-422 RJ45 (In/Out)
VISCA over IP RJ-45 |
IR Remote Control |
Yer |
Microphone Input |
Mini-phone (φ3.5mm) x2, (Mic/Line Selectabe) |
Sync. System |
Int |
Power Connector Type |
IEC60130-10 (JEITA standard RC-5320A) TYPE4 |
General :- |
|
Power Requirements |
DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant) |
Power Consumption |
25.5 W Max. |
Operating Temperature |
0 °C to 40 °C 32 °F to 104 °F |
Storage Temperature |
|
Dimensions (W x H x D) |
158.4 x 177.5 x 200.2 mm 6 1/4 x 7 x 8 inch |
Mass |
Approx. 1.8 kg 3 lb 15.5 oz |
Camera Body Color |
White |
Size of Screw Hole for Tripod |
1/4-20UNC x1 |
Mountable Angle |
< ±15° |
Ceiling Mount |
Yes |
Supplied Accessories |
AC power adaptor (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1) |
