STARTECH 10m Active Displayport Cable - DISPL10MA

SKU : DISPL10MA
Brand : StarTech
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
STARTECH 10m Active Displayport Cable - DISPL10MA, 1 - Connector A: DisplayPort (20 pin), 1 - Connector B: DisplayPort (20 pin), Number of Conductors: 19, Connector Plating: Nickel, Cable Jacket Material: PVC - Polyvinyl Chloride, Cable Shield Material: Aluminum-Mylar Foil with Braid, Fire Rating: CMG Rated (General Purpose), Connector Style: Straight, Wire Gauge: 32 AWG, 1 - Included in Package: 10m Active DisplayPort® Cable - M/M   The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-ena
Ask a question about this product
$76.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # DISPL10MA

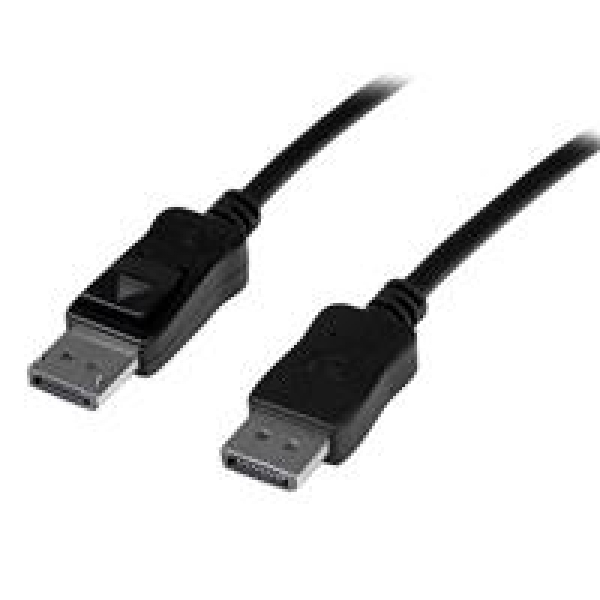

The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.



This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.



The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.



Features:

  • ACTIVE DISPLAYPORT CABLE: Active 10m (32.8ft) DisplayPort cable supports 4K (3840x2160p at 30Hz), 10.8 Gbps bandwidth, HBR, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (1080p at 60Hz)
  • ACTIVE CIRCUITRY: Active bus powered amplifier boosts video signals over longer distances up to 10 m (32.8 ft) (no external power supply needed), supports additional color spaces
  • LIGHT AND DURABLE CABLE: Long-lasting light-weight cable; 32AWG wire; Flexible PVC jacket; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
  • SPECS: 10 m (32.8 ft) | Black | DisplayPort v1.2 Latching Male to Male | 32 AWG | PVC cable jacket | Shield: Al-Mylar foil with Braid | Protocols: HBR, MST, GTC | 2-Year Warranty | Note: DP connector labelled "Display" connects to the display side



Overview:

  • 1 - Connector A: DisplayPort (20 pin)
  • 1 - Connector B: DisplayPort (20 pin)
  • Number of Conductors: 19
  • Connector Plating: Nickel
  • Cable Jacket Material: PVC - Polyvinyl Chloride



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Warranty 2 Years
1 - Connector A DisplayPort (20 pin)
1 - Connector B DisplayPort (20 pin)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Number of Conductors 19
Connector Plating Nickel
Cable Jacket Material PVC - Polyvinyl Chloride
Cable Shield Material Aluminum-Mylar Foil with Braid
Fire Rating CMG Rated (General Purpose)
Package Height 40.0 mm [1.6 in]
Package Length 33.0 cm [13.0 in]
Package Width 25.5 cm [10.0 in]
Package Quantity 1
Shipping (Package) Weight 466.0 g [16.4 oz]
Color Black
Connector Style Straight
Wire Gauge 32 AWG
Cable Length 10 m [32.8 ft]
Product Length 10.0 m [32.8 ft]
Product Width 20.0 mm [0.8 in]
Product Height 12.0 mm [0.5 in]
Weight of Product 452.0 g [16.0 oz]
1 - Included in Package 10m Active DisplayPort® Cable - M/M
