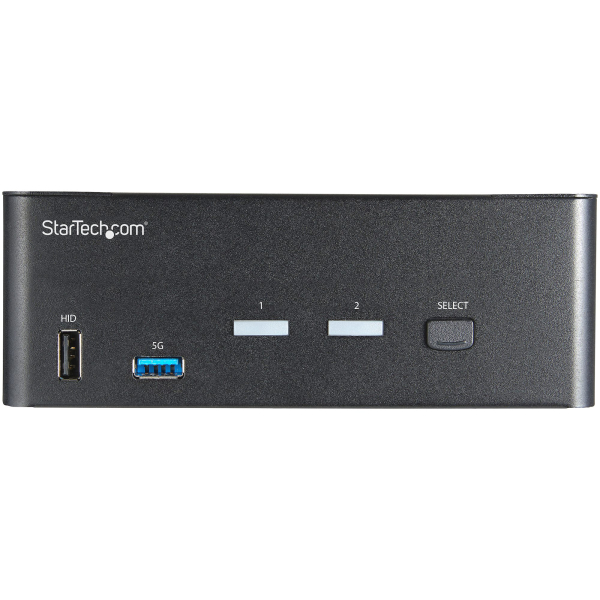

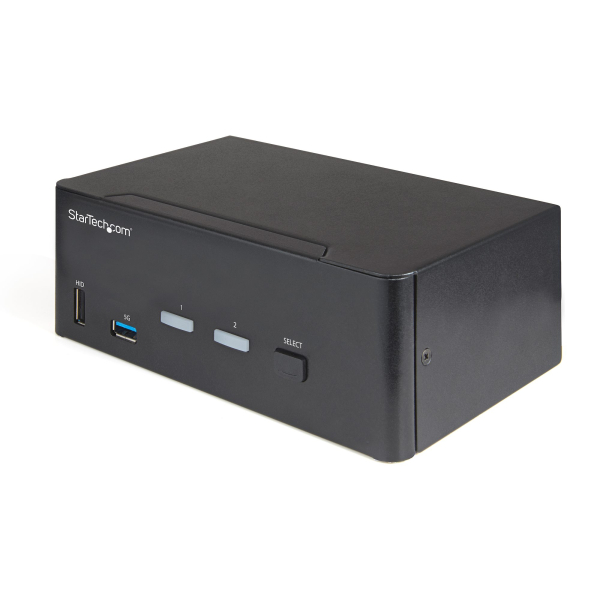

Startech 2 Port Dual Monitor HDMI KVM Switch 4K 60Hz w/ USB 3.0 Hub/TAA

Name: Startech 2 Port Dual Monitor HDMI KVM Switch 4K 60Hz w/ USB 3.0 Hub/TAA
Brand: StarTech
SKU: SV231DHU34K6
Price: 828 AUD
Availability: InStock

SKU : SV231DHU34K6

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

PC Interface: USB 3.2 Gen 1 (5Gbps), PC Video Type: HDMI, MTBF: 156 000 hrs, Port Selection Support: Push Button and Hotkeys, Video Revision: HDMI 2.0, Maximum Data Transfer Rate: 5Gbps, 02 Years Limited Warranty, SV231DHU34K6.

Ask a question about this product

$828.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # StarTech | Model # SV231DHU34K6

The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives two large monitors at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.

Features:

Dual 4k 60hz UHD- 2 Port HDMI Dual Screen KVM switch supports up to 4K at 60Hz on two monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
Fast Switching- Includes EDID and HDCP signal emulation so monitors stay synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow while switching between up to 2 computers
Tech Specs- 2-Port Dual Screen HDMI 2.0 | 3840 x 2160 | HDCP 2.2 | HDR10 Support | 2 Port USB 3.0 Hub (5Gbps)| 4x USB HID | Hotkey, Push Buttons | Stereo Analog + 7.1 Digital Audio | EDID & HDCP Emulation | OS Independent
User-friendly- KVM switch with compact & durable steel housing featuring easily accessible buttons & front-mounted integrated USB switch (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers

Overview:

PC Interface: USB 3.2 Gen 1 (5Gbps)
PC Video Type: HDMI
MTBF: 156 000 hrs
Port Selection Support: Push Button and Hotkeys
Video Revision: HDMI 2.0
Maximum Data Transfer Rate: 5Gbps

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Console Interface(s)	2 - 19 pin HDMI Female 1 - 3.5 mm Audio Female 2 - USB Type-A (9 pin, 5 Gbps) 4 - USB Type-A (4 pin; HID Port) USB 1.1
Host Connectors	2 - 9 pin USB 3.0 B Female 4 - 19 pin HDMI Female 2 - 3.5 mm Audio Female
Other Interface(s)	1 - USB Mini-B (5 pin)
Audio	Yes
Cables Included	No
Daisy-Chain	No
Number of Monitors Supported	2
KVM Ports	2
Rack-Mountable	No
PC Interface	USB 3.2 Gen 1 (5Gbps)
PC Video Type	HDMI
Chipset ID	Genesys Logic - GL3523
LED Indicators	2 - Green (Power/Sync) 2 - Red (Selected Host)
Audio Specifications	HDMI - 7.1 Channel Audio HDMI - 2 Channel Audio Analog Stereo - 2 Channel Audio
Auto Scan	3, 8, 15 & 30 seconds
On-Screen Display	No
MTBF	156 000 hrs
Port Selection Support	Push Button and Hotkeys
Video Revision	HDMI 2.0
IP Control	No
Hot-Key Selection	Yes
Maximum Data Transfer Rate	5Gbps
Supported Resolutions	3840 x 2160 @60Hz
Wide Screen Supported	Yes
Maximum Number of Users	1
Power Source	AC Adapter Included
Input Voltage	100 - 240 AC
Input Current	1.0A
Output Voltage	12V DC
Output Current	3A
Center Tip Polarity	Positive
Plug Type	M
Power Consumption (In Watts)	36W
Operating Temperature	0°C-40°C
Storage Temperature	-10°C to 60°C
Humidity	0% to 80%
Color	Black
Product Length	6.3 in [16.0 cm]
Product Height	2.3 in [5.8 cm]
Product Width	3.9 in [10.0 cm]
Weight of Product	1.8 lb [0.8 kg]
Material	Steel
Included in Package	1 - KVM Switch 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ) 4 - Rubber Feet 1 - Quick-Start Guide
