StarTech 2-Port USB-A 3.2 Gen2 10Gbps PCIe Expansion Card

StarTech 2-Port USB-A 3.2 Gen2 10Gbps PCIe Expansion Card

Name: StarTech 2-Port USB-A 3.2 Gen2 10Gbps PCIe Expansion Card
Brand: StarTech
SKU: PEXUSB312A3
Price: 66 AUD
Availability: InStock

SKU : PEXUSB312A3

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Connector Type(s): 1 - PCI Express x4, Internal Ports: 1 - SATA Power (15 pin), Ports: 2, Interface: PCI Express x4, Bus Type: USB 3.2 Gen 2 10Gbps, Lifetime Limited Warranty, PEXUSB312A3.

Ask a question about this product

$66.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # StarTech | Model # PEXUSB312A3

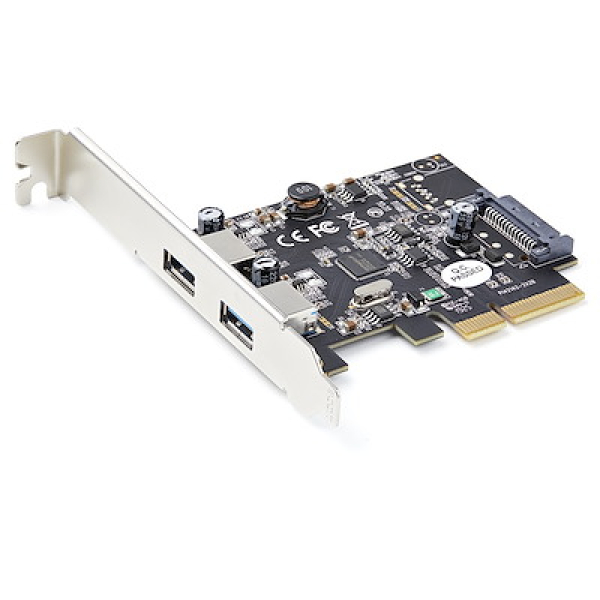

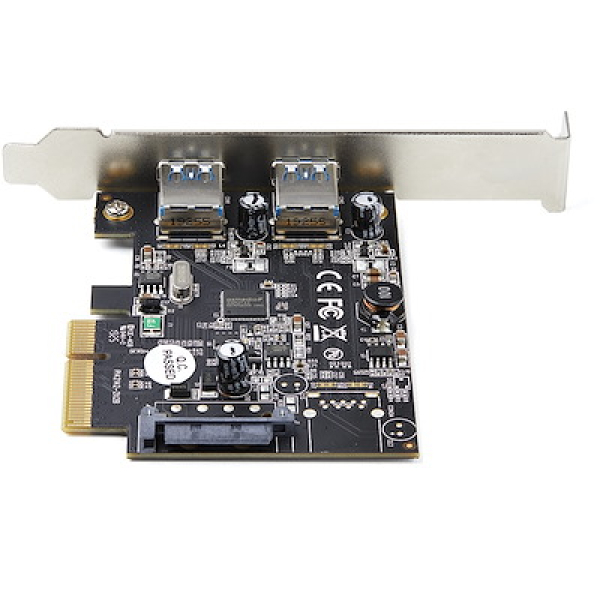

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding two SuperSpeed USB-A (10Gbps) ports.

Features:

High Performance- 2-Port USB PCIe Card with ASMedia ASM3142 host controller (PCIe 3.0 x4) has two SuperSpeed 10Gbps USB-A ports (USB 3.2 Gen 2); Speeds up to 10Gbps/port; Upgraded version of our popular USB card PEXUSB312A2
Maximized Usb Performance- Add-on card supports Multiple Ins for max bandwidth when using mixed-speed devices; Supports UASP & optimized for SSDs/HDDs, NVMe, thumb drives; Supports USB 3.2 Gen 1/2.0 devices
Power- USB PCI Express 3.0 expansion card w/ SATA power header supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 4.5W (5V @ 0.9A) per USB-A port
Compatibility- USB PCIe adapter card installs in full or low-profile PCIe 3.0 x4 slot and up; Bracket included; Backward compatible w/ PCIe 2.0; Supports Win/Linux/macOS w/auto drivers on Win 8 & up

Overview:

Connector Type(s): 1 - PCI Express x4
Internal Ports: 1 - SATA Power (15 pin)
Ports: 2
Interface: PCI Express x4
Bus Type: USB 3.2 Gen 2 10Gbps

Manufacturer Warranty: Lifetime Limited Warranty

Technical Specifications

Connector(s) :-
Connector Type(s)	1 - PCI Express x4
Internal Ports	1 - SATA Power (15 pin)
External Ports	2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
Hardware :-
Ports	2
Interface	PCI Express x4
Bus Type	USB 3.2 Gen 2 10Gbps
Card Type	Standard Profile (LP bracket incl.)
Port Style	Integrated on Card
Industry Standards	USB 3.2 Specification PCI Express Base Specification Rev. 3.0 Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0
Chipset ID	ASMedia - ASM3142
Performance :-
Total USB Power Output	4.5W (5V @ 0.9A) nominal, per port - Current draw above 2.0A (10W) will initiate Over-Current Protection
Maximum Data Transfer Rate	10Gbps
Type and Rate	USB 3.2 Gen 2 - 10 Gbit/s
UASP Support	Yes
Software :-
OS Compatibility	Windows 7, 8, 8.1, 10, 11 Windows Server 2012 R2, 2016, 2019, 2022 macOS 10.13 to 10.15, 11.0, 12.0, 13.0, 14.0 Linux 3.5 and up - LTS Versions only
Environmental :-
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	20%~80% RH
Physical Characteristics :-
Color	Black
Product Height	1.9 cm [0.7 in]
Product Length	10.0 cm [3.9 in]
Weight of Product	65.0 g [2.3 oz]
Product Width	12.0 cm [4.7 in]
What's in the Box :-
Included in Package	1 - USB 3.1 Card 1 - Full-Profile Bracket (Pre-Installed) 1 - Low-Profile Bracket 1 - Quick Start Guide
