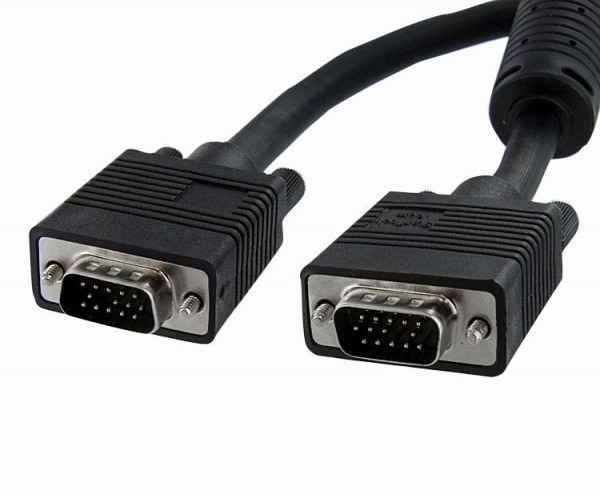

STARTECH 25m Coax High Resolution Monitor Vga MXTMMHQ25M

Name: STARTECH 25m Coax High Resolution Monitor Vga MXTMMHQ25M
Brand: StarTech
SKU: MXTMMHQ25M
Price: 163 AUD
Availability: InStock

SKU : MXTMMHQ25M

Brand : StarTech

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

STARTECH 25m Coax High Resolution Monitor Vga MXTMMHQ25M, 1 - Connector A: VGA (15 pin, High Density D-Sub), 1 - Connector B: VGA (15 pin, High Density D-Sub), Number of Conductors: 14, Connector Plating: Nickel, Cable Jacket Material: PVC - Polyvinyl Chloride, Cable Shield Material: Aluminum-Mylar Foil with Braid, Fire Rating: CMG Rated (General Purpose), Number of Ferrites: 1, Wire Gauge: 28 AWG The MXTMMHQ25M High Resolution VGA Cable (25-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.

Ask a question about this product

$163.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # MXTMMHQ25M

The MXTMMHQ25M High Resolution VGA Cable (25-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.

This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.

Features:

Triple coaxial + twisted-pair wire for crystal clear display
Durably constructed cable, with high quality HD15 connectors
Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor

Overview:

1 - Connector A: VGA (15 pin, High Density D-Sub)
1 - Connector B: VGA (15 pin, High Density D-Sub)
Number of Conductors: 14
Connector Plating: Nickel
Cable Jacket Material: PVC - Polyvinyl Chloride
Cable Shield Material: Aluminum-Mylar Foil with Braid

Manufacturer Warranty: Lifetime Limited Warranty

Technical Specifications

Warranty	Lifetime
1 - Connector A	VGA (15 pin, High Density D-Sub)
1 - Connector B	VGA (15 pin, High Density D-Sub)
Operating Temperature	0 to 60 °C
Storage Temperature	-20 to 80 °C
Humidity	0 - 80 %RH
Number of Conductors	14
Connector Plating	Nickel
Cable Jacket Material	PVC - Polyvinyl Chloride
Cable Shield Material	Aluminum-Mylar Foil with Braid
Fire Rating	CMG Rated (General Purpose)
Number of Ferrites	1
Package Height	10.7 cm [4.2 in]
Package Length	46.0 cm [18.1 in]
Package Width	35.0 cm [13.8 in]
Package Quantity	1
Shipping (Package) Weight	2.3 kg [5.0 lb]
Product Height	0.0 mm [0.0 in]
Product Width	0.0 mm [0.0 in]
Color	Black
Wire Gauge	28 AWG
Cable Length	25 m [82.0 ft]
Product Length	25.0 m [82.0 ft]
Weight of Product	2.2 kg [4.8 lb]
1 - Included in Package	25m Coax High Resolution Monitor VGA Cable - HD15 M/M
