STARTECH 4 Bay Usb 3.0 Esata To Sata Standalone SATDOCK4U3RE

SKU : SATDOCK4U3RE
Brand : StarTech
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Startech SATDOCK4U3RE, 4 Bay Usb 3.0, Speed 4.2GBpm, Drive 2.5in & 3.5in, Insertion Rating 15,000 cycles per bay, Type and Rate    USB 3.0 - 5 Gbit/s, SATA II (3 Gbps), Drive Connectors 4 - SATA Data & Power Combo (7+15 pin) Receptacle, Host 1 - eSATA (7 pin, Data) Receptacle, 1 - USB Type-B (9 pin) USB 3.0 Female, Input 2.0 A, Output 6.5 A.   The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device.
Ask a question about this product
$913.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # SATDOCK4U3RE

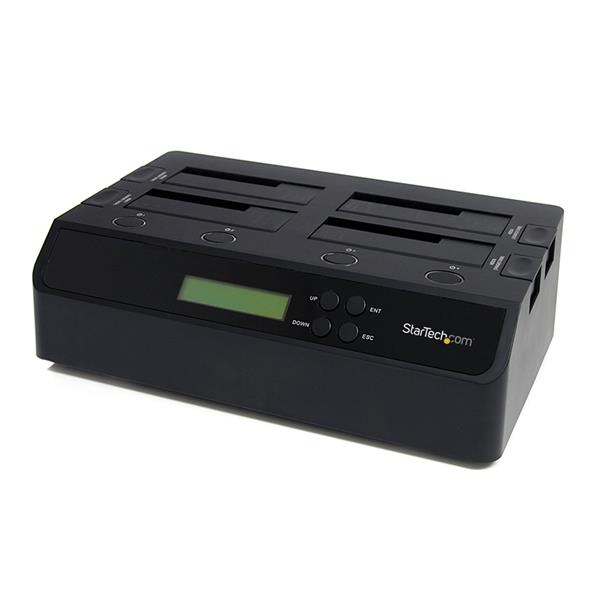

The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device.



Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system.



Features:

  • Sector-by-Sector drive duplication, including the HPA
  • Integrated LCD display for duplication progress and options menu
  • SuperSpeed USB 3.0 compliant host interface with supported data transfer rates of up to 5 Gbps
  • High speed eSATA host interface with supported data transfer rates up to 3 Gbps
  • Built-in quick drive erase and Secure Erase functions
  • Dual 60mm cooling fans mounted below the drives with variable speed controls (including OFF)
  • Supports 2.5in or 3.5in form factor hard drives (HDD) or solid state drives (SSD)
  • Compatible with SATA (1.5/3.0/6.0 Gbps) drives
  • Patented hard drive eject push-buttons for each drive
  • Independent power buttons for each hard drive
  • Extra, easy-access spacing between each drive
  • Four large, stable, non-slip table-top feet
  • Includes a SATA to IDE drive adapter



Overview:

  • Color: Black
  • Material: Plastic
  • Input Current: 2.0 A
  • Input Voltage: 100 - 240 AC
  • Output Current: 6.5 A
  • Output Voltage: 12V DC



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Chipset ID JMicron - JMB394
JMicron - JMS539
Compatible Drive Types SATA
Drive Size 2.5in & 3.5in
Fans 2 - 60 mm
Number of Drives 4
Duplication Modes Sector by Sector (Whole Drive)
Duplication Speed 4.2GBpm
Erase Modes Quick Erase
Insertion Rating 15,000 cycles per bay
Max Drive Capacity Currently tested with up to 4TB 5400 RPM 3.5" hard drives per bay (16TB total) and 1TB 5400 RPM 2.5" hard drives (4TB total)
Maximum Data Transfer Rate 3Gbps
Port Multiplier Yes
Type and Rate USB 3.0 - 5 Gbit/s
SATA II (3 Gbps)
Drive Connectors 4 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - eSATA (7 pin, Data) Receptacle
1 - USB Type-B (9 pin) USB 3.0 Female
OS Compatibility OS independent; No software or drivers required
LED Indicators 4 - Drive Power/Activity
Input Current 2.0 A
Input Voltage 100 - 240 AC
Output Current 6.5 A
Output Voltage 12V DC
Power Consumption (In Watts) 78
Power Source AC Adapter Included
Humidity 8%~90% RH
Operating Temperature 5°C to 80°C (41°F to 176°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Color Black
Material Plastic
Product Height 3.8 in [9.6 cm]
Product Length 11.2 in [28.4 cm]
Product Width 6.8 in [17.2 cm]
Weight of Product 2.4 lb [1.1 kg]
Package Height 8.5 in [21.5 cm]
Package Length 13.5 in [34.3 cm]
Package Width 6.7 in [17 cm]
Shipping (Package) Weight 6 lb [2.7 kg]

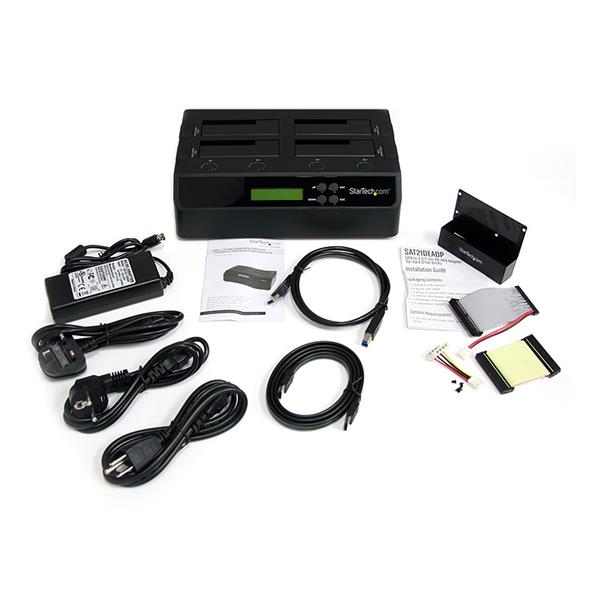

Included in Package 1 - SATA Duplicator Dock
1 - SATA to IDE Adapter
1 - 40-pin IDE Cable
1 - 44-Pin to 40-Pin IDE Cable
1 - eSATA Cable
1 - Package of Mounting Screws
1 - SP4 to LP4 Power Cable
1 - USB 3.0 Cable
1 - Universal Power Adapter (NA/JP, UK, EU, ANZ)
1 - Instruction Manual
