Startech PEXUSB312A1C1H Pcie Card 10gbps

Name: Startech PEXUSB312A1C1H Pcie Card 10gbps
Brand: StarTech
SKU: PEXUSB312A1C1H
Price: 140 AUD
Availability: InStock

SKU : PEXUSB312A1C1H

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Connector Type(s): 1 - PCI Express x4, Internal Ports: 1 - IDC (20 pin, USB 3.0, Motherboard Header), Ports: 5, Interface: PCI Express, Bus Type: USB 3.2 Gen 2 10Gbps, USB 3.2 Gen 1 (5 Gbps).

Ask a question about this product

$140.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # PEXUSB312A1C1H

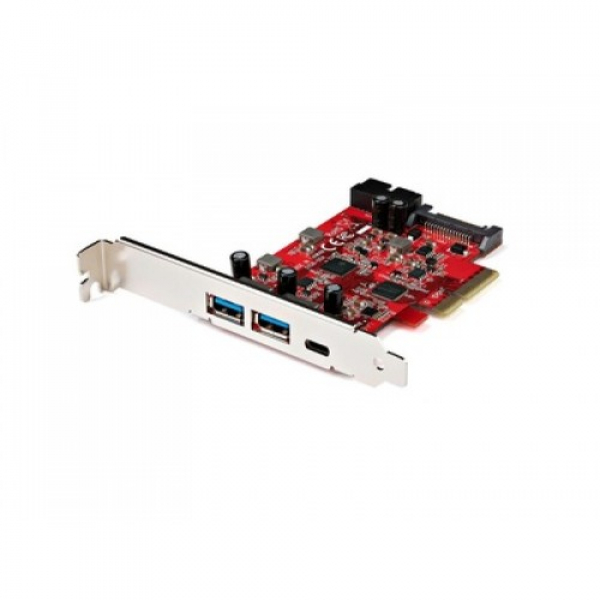

This 5-port USB 3.2 Gen 2 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers a USB Type-C port (10Gbps), two traditional USB Type-A ports (10Gbps), and a motherboard header (USB 5Gbps).

Features:

Transfer Speeds Up To 10Gbps- USB-A & USB-C PCIe card adapter supports Multiple INs maintaining max bandwidth with mixed speed devices and UASP optimizing USB performance with external storage devices like SSDs, HDDs, NVMe drives; Works w/ USB 3.2 Gen 2/3.0/2.0
Optional Power- USB PCIe expansion card with SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB Type-C port & 5V 0.9A/4.5W via each USB port
Compatibility- USB C add-on card installs in full or low-profile PCIe 3.0 (x4 slot) desktop/server (full-profile bracket installed, low profile bracket incl.); lower performance with PCI-e 2.0; Windows/Linux/macOS auto driver install (Windows 8 & up)
High Performance- 5-Port USB PCIe card with ASMedia 3142 IC; 10Gbps Hub w/ 3 External Ports (2x USB-A & 1x USB-C) & two internal ports USB 5Gbps (1x Internal IDC header); Supports up to USB 3.2 Gen 2; Upgraded version to our popular card PEXUSB312EIC

Overview:

Connector Type(s): 1 - PCI Express x4
Internal Ports: 1 - IDC (20 pin, USB 3.0, Motherboard Header)
Ports: 5
Interface: PCI Express
Bus Type: USB 3.2 Gen 2 10Gbps
USB 3.2 Gen 1 (5 Gbps)

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Connector(s)	Connector Type(s): 1 - PCI Express x4 Internal Ports: 1 - IDC (20 pin, USB 3.0, Motherboard Header) 1 - SATA Power (15 pin) External Ports: 2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps) 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental	Operating Temperature: 0°C to 70°C (32°F to 158°F) Storage Temperature: -20°C to 80°C (-4°F to 176°F) Humidity: 15~90% RH (Non-condensing)
Hardware	Ports: 5 Interface: PCI Express Bus Type: USB 3.2 Gen 2 10Gbps USB 3.2 Gen 1 (5 Gbps) Card Type: Standard Profile (LP bracket incl.) Port Style: Integrated on Card Industry Standards: PCI Express Base Specification Rev. 3.0 USB 3.2 Specifications UASP (USB Attached SCSI Protocol) Rev. 1.0 Chipset ID ASMedia - ASM3142 Genesys Logic - GL3590
Performance	Total USB Power Output: USB-C Power Output - 15W USB-A Power Output - 4.5W IDC Power Output - 4.5W Maximum Data Transfer Rate: 10Gbps Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s USB 3.0 - 5 Gbit/s UASP Support: Yes MTBF: 1,677,495 Hours
Physical Characteristics	Color: Red Weight of Product: 2.1 oz [60.0 g] Product Height: 4.7 in [12.0 cm] Product Length: 4.5 in [11.5 cm] Product Width: 0.7 in [1.9 cm]
Software	OS Compatibility: Windows 7, 8, 8.1, 10, 11 Windows Server 2008 R2, 2012 R2, 2016, 2019, 2022 Linux 3.5 and up - LTS Versions only macOS Catalina (10.15) macOS Mojave (10.14) macOS High Sierra (10.13) macOS Big Sur (11.0) macOS Monterey (12.0) macOS Ventura (13.0)
